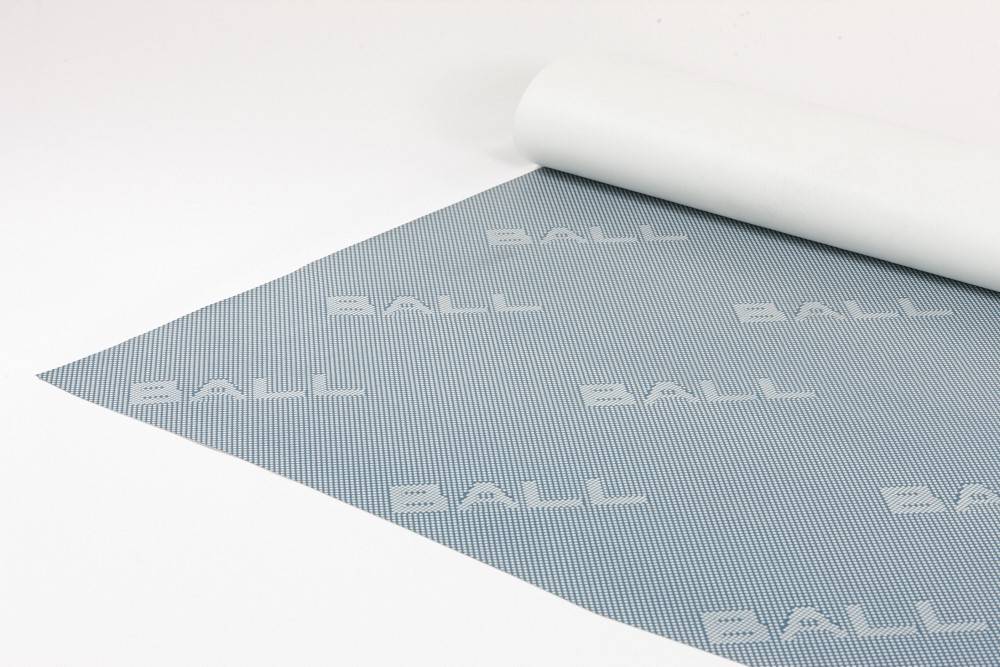

Stopgap Isolator Membrane - Damp Proof Membrane
Verified by manufacturer 6 months ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Loose-lay, laminated impervious membrane for damp or contaminated surfaces.
Application
- Suitable for fast-track projects where time required for traditional subfloor preparation is not available, for heritage projects where removal of the existing floor is not possible and for temporary coverings where floors need to be returned to their original state.
- It is not suitable for use in biologically sensitive areas such as hospital wards, operating theatres or in secure areas such as prisons or psychiatric units.
Description
STOPGAP ISOLATOR MEMBRANE is an impervious loose lay sheet designed to be laid over damp or contaminated subfloors prior to the installation of a wide range of sheet vinyl, linoleum, rubber floorcoverings and bitumen backed carpet tiles.
The membrane has nodules on the underside to create an airspace allowing ventilation of water vapour from a damp subfloor into a dry wall, thereby allowing impervious floorcoverings to be bonded quickly and easily.
Being a loose lay system, STOPGAP ISOLATORMEMBRANE does not have the sound attributes of a fully bonded system and as such, a slight increase in noise levels may be experienced when trafficking.
General information
Color | White |
Finish | Smooth |
Material | Other |
Shape | Other |
Length | 20000 mm |
Width | 2000 mm |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | M50/110 Resilient floor tiling M50/130 Carpet tiling M50/15 Carpet tiling M50/150 Sheeting M50/155 PVC sheet flooring in special wet areas M50/170 Carpeting M50/20 Sheeting M50/25 Carpeting |
Specification data - Plastics sheets
Material | Laminated sheet. |
Purpose | Damp-proof membrane. |
Third-party certification | ISO Approved. |
Physical properties | |
Colour | White. |
Weight (minimum) | 55 kg. |
Dimensions | |
Thickness (minimum) | 1.5 mm. |
Width (minimum) | 2 m. |
Roll length (minimum) | 20 m. |
Coverage | 40 m² per roll. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 Self declared |
Recyclability | Packaging partly |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
ISO 9001:2015
