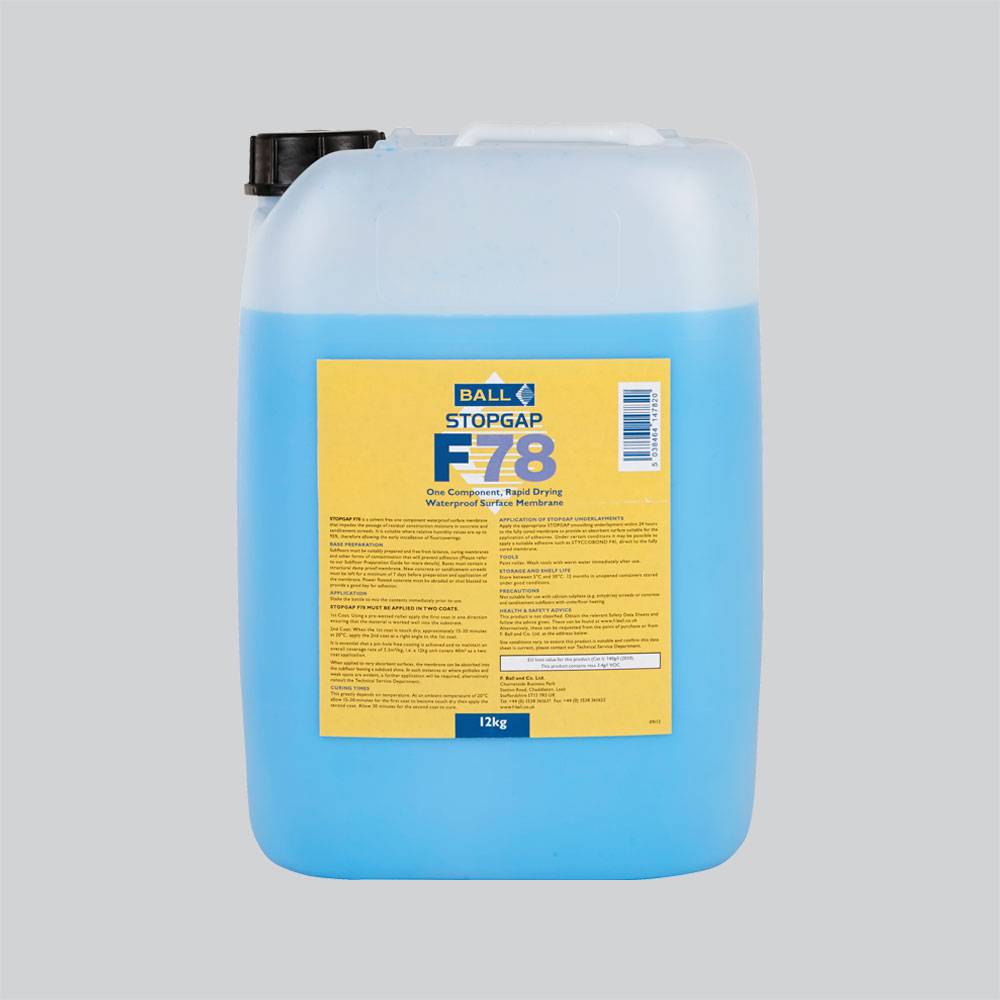

Stopgap F78 - Damp Proof Membrane
Verified by manufacturer 8 days ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
One component, rapid drying waterproof surface membrane.
Application
Must be applied in two coats and can be used to isolate residual construction moisture where relative humidity values are up to 95%. It is pigmented blue to allow the user to visually control coverage uniformity.
Description
STOPGAP F78 is a solvent free, one component, ready to use system which dries rapidly to provide a waterproof surface membrane.
STOPGAP F78 impedes the passage of residual construction moisture from affecting subsequent floor covering installations, therefore allowing early installation of floor coverings in fast track building programmes.
General information
Color | Blue |
Finish | Smooth |
Material | Epoxy |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | M42/150 Composition block flooring M42/20 Composition block flooring M42/30 Concrete/ Screed substrates M50/10 Resilient floor tiling M50/110 Resilient floor tiling M50/130 Carpet tiling M50/15 Carpet tiling M50/150 Sheeting M50/155 PVC sheet flooring in special wet areas M50/170 Carpeting M50/20 Sheeting M50/25 Carpeting M51/110 Carpeting |
Specification data - Liquid tanking resins
Composition | Polyvinylidene Chloride. |
Execution | Manufacturer guidanceRoller - consult manufacturer for details and insert requirements. |
Cure time | 1 hour at 20°C. |
Colour | Blue. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/unit Self declared |
Recyclability | Packaging partly |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 4 |
 IFC | - | 4 |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
ISO 9001:2015
Literature
Flooring Installation Products
Case studies

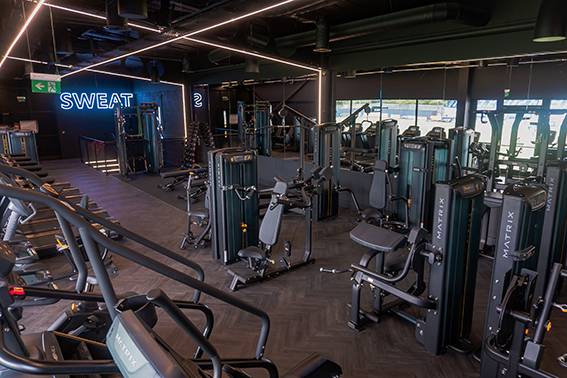

Macclesfield FC - New F. Ball adhesive nets a quick result for Macclesfield FC
