Application

For use with horizontal cavity tray systems.

Description

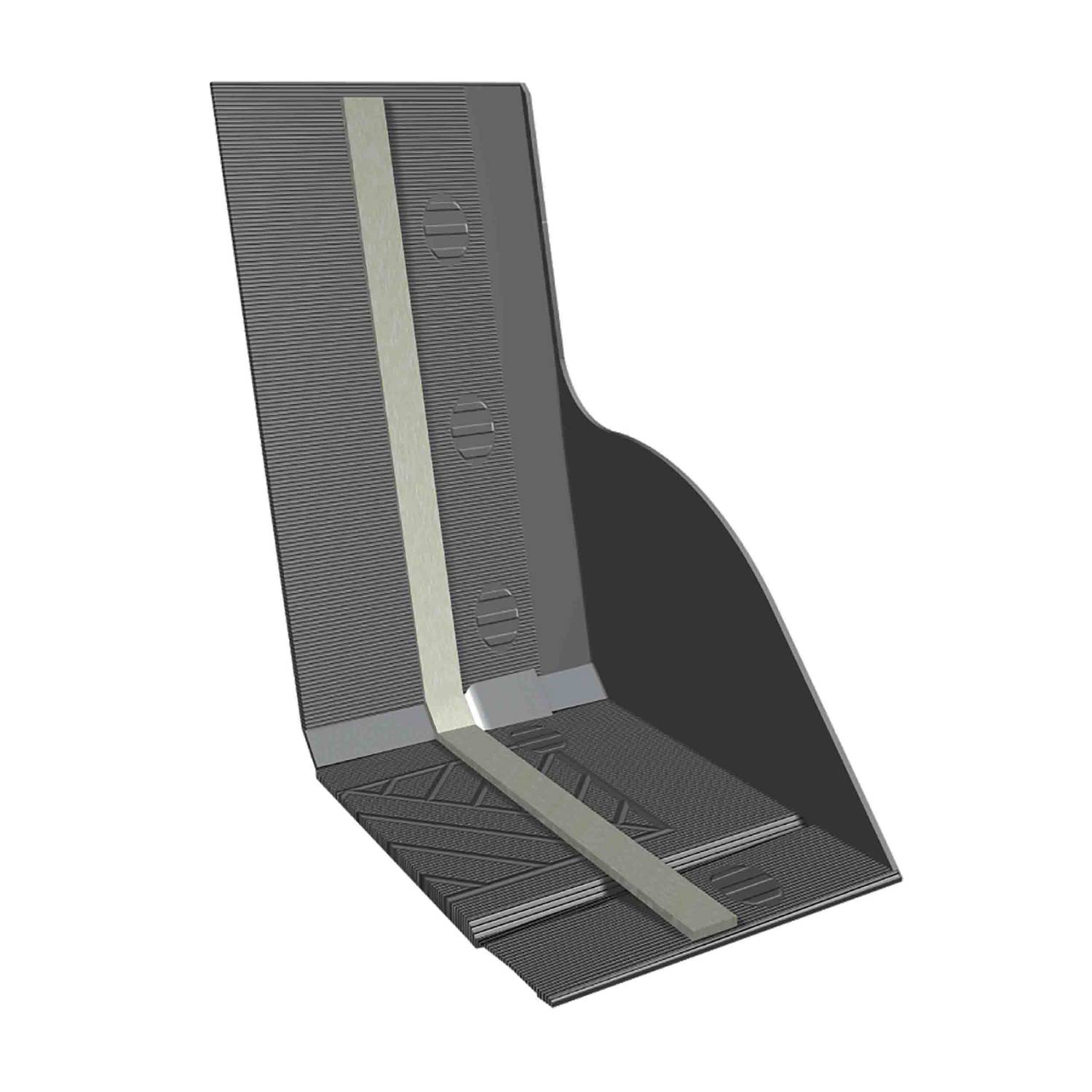

The Stop Ends are designed for use with the horizontal cavity tray system and prevent water discharging into the cavity. Each stop end is supplied with mastic tape ensuring a tight bonded joint is achieved between the stop end and tray.


Features and benefits:

  • Preformed stop end holds itself rigid within the cavity.
  • Mastic tape creates a watertight joint between trays.
  • Finishes off corner trays and cut down horizontal runs.

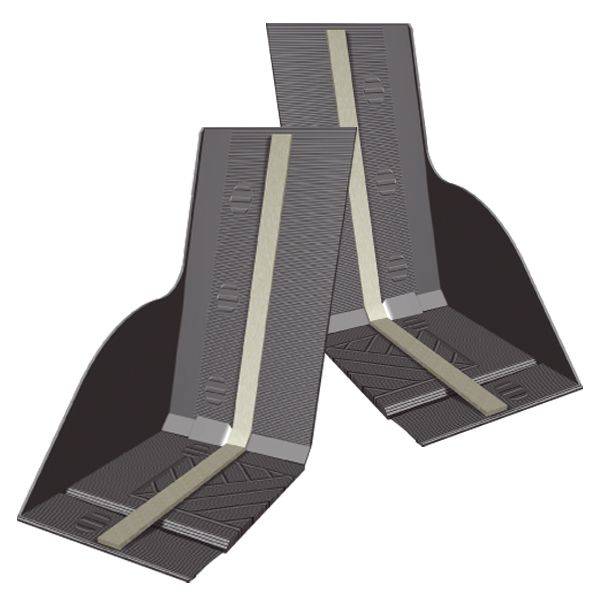

  • Handed stop ends for left and right tray terminations.
  • Pre-cut width ensures sufficient overlap with adjacent tray.


Lead flashing:

Leaded trays available with the following:


  • Short lead code 4–75 mm drop.
  • Standard lead code 4–150 mm drop.
  • Long lead code 4–300 mm drop.
  • Standard lead code 5–150 mm drop.
  • Long lead code 5–350 mm drop.

General information

Color

Grey

Material

Polypropylene

Size

83 x 155 mm

Guidance for specification option:

Length x height.


Coursing height: 75–225 mm.

Bed size: 102.5 mm.

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

Specification data - Preformed cavity trays

Third party certification

British Board of Agrément.

Material

Polypropylene.

Guidance for specification option:

Injection moulded.

To fit cavity width

Coursing height: 75–225 mm; bed size: 102.5 mm.

Height

155 mm.

Length (effective)

83 mm.

Handing

Right.

Literature

MBP Cavity Trays, Closers & Barriers Guide - Issue A - June 2020

MBP Cavity Trays, Closers & Barriers Guide - Issue A - June 2020

MBP All Product Guide - Issue H - August 2021

MBP All Product Guide - Issue H - August 2021
