Stone cavity wall with partial fill insulation and plaster

Stone cavity wall with partial fill insulation and plaster

NBS

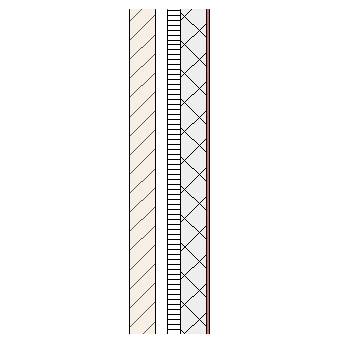

Unit wall system comprising: 100 mm stone, 50 mm cavity, 50 mm rigid board insulation, 100 mm concrete block and 13 mm plaster.

Jump to:
+44 (0)345 4569594 theNBS.com

Description

Unit wall system comprising: 100 mm stone, 50 mm cavity, 50 mm rigid board insulation, 100 mm concrete block and 13 mm plaster.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1.0

1.0

Revit

Revit 2013

2.0

2.0

Download now from NBS National BIM Library
