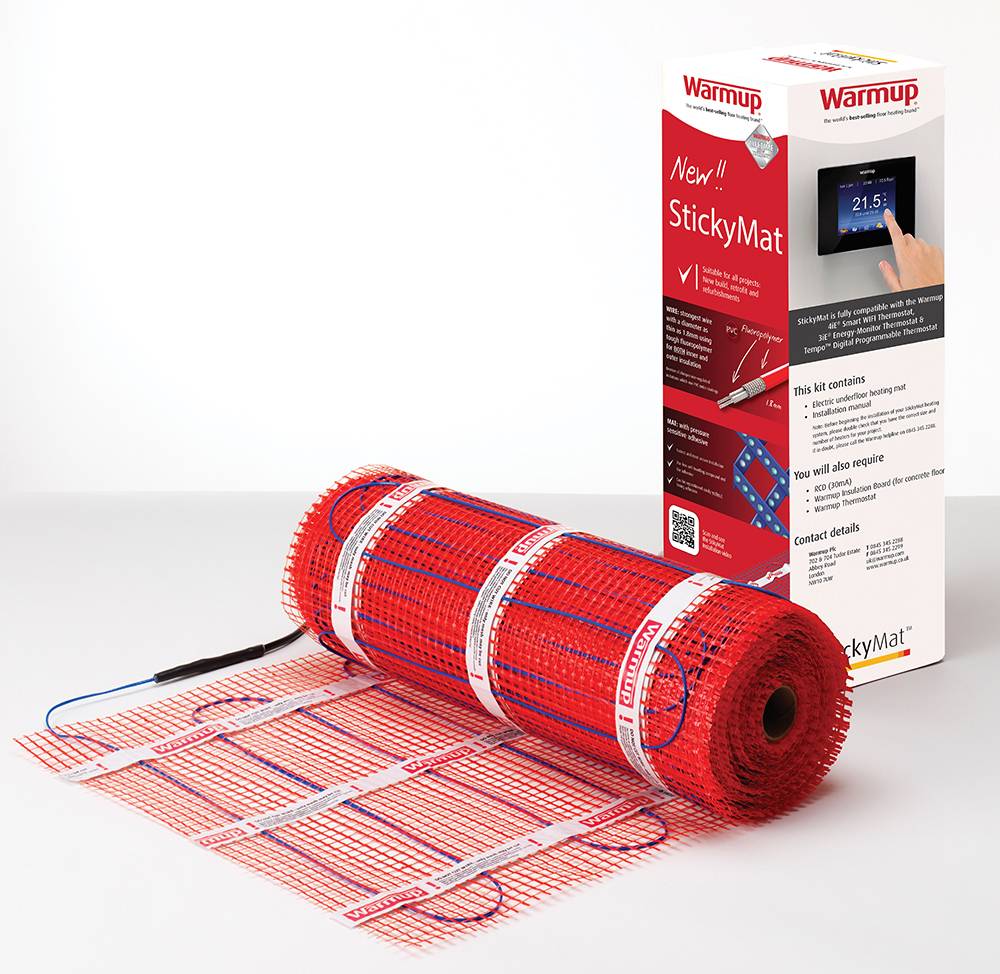

StickyMat - Underfloor Heating

Verified by manufacturer 4 months ago

Warmup plc Third party certifications:
  • BEAB

    BEAB

    Certificate type

Electric heating system for both wall and floor heating applications.

Jump to:
+44 345 345 2288 Website

Application

Suitable for regularly shaped rooms as the 0.5 m wide mats can be easily applied to walls or floors in parallel runs and securely fixed to the substrate with the self-adhesive mesh, making installation quick.

Description

Electric heating system for both wall and floor heating applications. Using it on walls means heating the bathroom is that much easier and eliminates the need for radiators for greater design freedom.


The mat has been specifically designed so that there is a continuous, 100% earth braid, making it fully compliant with the latest edition of the Wiring Regulations for wall heating applications, eliminating the need for a second earth screen during installation.


The pressure-sensitive adhesive on the mesh securely binds the mats to the substrate, keeping them flat and ensuring the application of tile adhesive is snag-free whilst allowing the mats to be easily repositioned as needed.

The ultra-thin, 1.8 mm multi-strand, dual-core heating cable, is double insulated with an advanced fluoropolymer making it exceptionally tough and easy to tile over. StickyMat is available in 200 W/m² mats which ensures the quickest heating response time for your room.


System build-up:

- Wall construction:

  • Wall finish.
  • Flexible tile adhesive or plaster.
  • Warmup StickyMat.
  • Warmup insulation board.
  • Flexible tile adhesive (solid walls). Screw and washer (stud walls).
  • Solid/ stud wall.

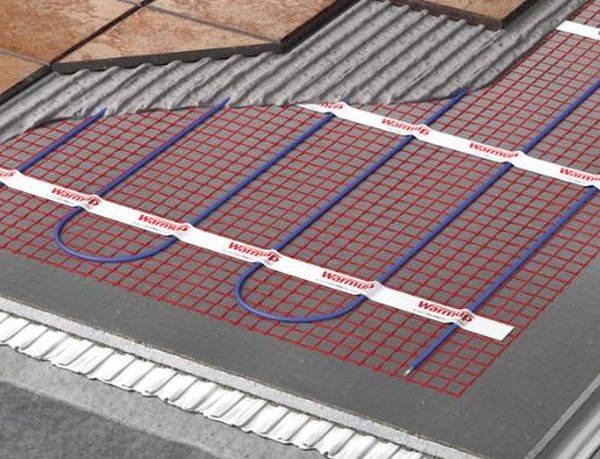

- Floor construction:

  • Floor finish.
  • Flexible tile adhesive or levelling compound.
  • Warmup StickyMat.
  • Warmup insulation board.
  • Flexible tile adhesive.
  • Subfloor.


Features and benefits:

  • 150 or 200 W/m² mats for quickest heating response time.
  • Ultra-thin, 1.8 mm multi-strand, dual-core heating cable is double insulated with an advanced fluoropolymer making it exceptionally tough and easy to tile over.
  • 100% continuous earth braid, making it fully compliant with the latest edition of the Wiring Regulations for wall heating applications.
  • Eliminates condensation and mould growth in heated areas.
  • Suitable for regular shaped rooms, where the 0.5 m wide mats can be rolled out in parallel runs.
  • Pressure-sensitive adhesive securely binds the mats to the floor or wall keeping them flat for fast and secure installation.
  • BEAB Approved and CE marked meeting the highest safety standards for ultimate peace of mind.
  • Uses 4iE smart WIFI thermostat.
  • Lifetime warranty and SafetyNet installation guarantee.

General information

Color

Red

Length

Bespoke

Width

500 mm

Height

3 mm

Warranty description

Lifetime

Uniclass

Ss_60_40_92_27 Electric underfloor heating systemsPrimary

CAWS

T90/479 Underfloor electric heating mat

Specification data - Electric underfloor heating systems

Heating elements

-

Manufacturer guidance

Technical characteristics:

  • Width: 500 mm.
  • Operating voltage 230 V AC: 50 Hz.
  • Earth protection: 100% earth braid coverage.
  • Cable thickness: 1.8 mm.
  • Heating cores: Multi-strand, dual-core.
  • Mat thickness: 3 mm.
  • Output rating: 150 and 200 W/m².
  • IP rating: IPX7.
  • Insulation: Ethylene tetrafluoroethylene (ETFE).
  • Installation temperature: -10°C (minimum).
  • Connection: 3 m long 'coldtail' connection.


Extensive product range available, consult literature for details and insert requirements.

Controls

-

Controllers

4iE Smart WI-Fi Thermostat.

Guidance for specification option:

Connected to the internet by WiFi, it can be controlled from a smart phone, tablet or computer as well as its own touchscreen interface. It learns how homeowners use their heating and the unique way each zone reacts. It uses this knowledge to suggest ways to save energy, such as what temperature should be set when the area is not in use and when the heating can be turned off earlier with no noticeable impact on comfort.



  • Always at the right temperature automatically, and up to 25% lower energy usage
  • Always on the best tariff, automatically.
  • Simple and secure set up using WiFi, with 24/7 technical support.


Insulation board

INSBOARD6MM.

Guidance for specification option:

Thickness: 6 mm. R-value: 0.16 m²K/W.

INSBOARD(PK1).

Guidance for specification option:

Thickness: 10 mm. R-value: 0.28 m²K/W.

INSBOARD20MM.

Guidance for specification option:

Thickness: 20 mm. R-value: 0.58 m²K/W.

INSBOARD50MM.

Guidance for specification option:

Thickness: 50 mm. R-value: 1.50 m²K/W.

Manufacturer guidance

  • Size (w x h): 600 x 1250 mm.
  • Warmup® Insulation Boards are water resistant, insulated tile backer board made of extruded polystyrene, faced on both sides with a fibreglass mesh embedded into a thin cement polymer mortar.
  • They have high thermal insulation properties for energy efficiency and an added benefit of sound absorption.
  • Warmup Insulation Boards have zero Ozone Depletion Potential (ODP) and a Global Warming Potential (GWP) of less than 5.


Sustainability data

Contains Red List materials

No

Country of material origin

India

Country of product manufacture

India

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

N/A - Measured internally under greenhouse protocol guidance.

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BEAB

BEAB

1811323STO-001
