STEREO-KINETIC® Wall - Architectural Façade - Kinetic Cladding
Verified by manufacturer 17 days ago
BS EN 1090-1
Certificate type
A dramatic kinetic installation of moving stainless steel tiles, suspended on modular grating panels, creating a dynamic architectural facade for wall cladding.
Application
STEREO-KINETIC® Wall can be used as an architectural facade, as a screen or as a decorative cladding.
Applications:
- As a section or complete facade of a new-build.
- As a retrofit to enhance the appearance of an existing building.
- As a connective feature, integrating an extension to a building
- As a facade on a building such as a multi-storey car park that requires through ventilation.
- As a reflective backdrop for a projected light show.

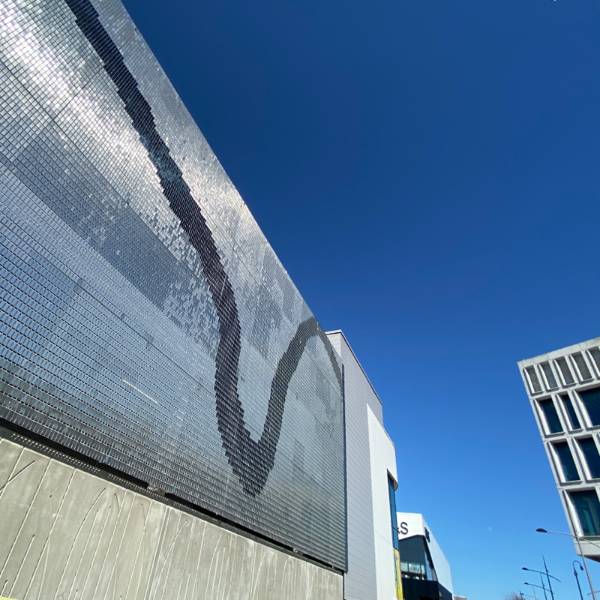

- As a canvas for a graphic design or logo.
Description
STEREO-KINETIC® Wall is a kinetic facade. It is designed to change dynamically, creating a visually captivating and ever-changing display. It achieves this effect as gusts of wind interact with the stainless-steel tiles, causing them to ripple. This results in a playful rhythm of reflected light, which adds a dynamic and aesthetic dimension to a building's façade.
The system is protected by patents and is constructed using specially designed components. These components provide a smooth bearing surface and securely hold the freely moving stainless-steel tiles which are suspended from open mesh grating panels.
Features and benefits:
- The system allows for creative freedom ensuring that each project is distinctive and original.
- It can be installed as a continuous façade, covering an entire building or a specific section.
- Architects can design patterns that allow for a desired level of airflow or natural daylight. This customization enables the system to be adapted to the specific requirements of each project.
- By using coloured tiles, the system can be used to display graphics and logos.
- The façade can be used to interact with projected lighting, acting as a canvas for artistic and visual displays.
- Panels are made to custom sizes and supplied complete with all components.
General information
Color | Grey Black Blue Bronze Brown |
Finish | Brushed Guidance for specification option: Sheets. Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Mill Electro polished Metallic |
Material | Stainless steel Guidance for specification option: Sheets. Steel |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal profiled sheet self-supporting cladding/ roof covering L10/60 Security L10/690 Security |
Product range |
Specification data - Decorative screen systems
Classification data | |
System performance | Manufacturer guidanceDecorative only. |
Cladding units | Free-moving stainless steel tiles suspended from steel gratings. Guidance for specification option: Gratings:
Manufacturer guidanceSee below to specify panel size(s), grating finish/ color, design, optional framing and materials. |
Secondary support structure | Not required. Support steelwork. Guidance for specification option: The manufacturer provides a design and supply service for the support steelwork. Insert requirements. |
Primary fasteners | Guidance for specification option: Insert requirements to suit substrate. |
Panel size | Guidance for specification option: Insert requirements. Fabricated to custom sizes up to maximum 3000 x 1870 mm per panel. |
Framing | Not required. Required. Guidance for specification option: Panels can be supplied with alternative styles of frame to create either a visual accent or a continuous facade. Consult manufacturer for options and insert requirements. |
Finishes | Marine grade brushed stainless steel tiles; hot-dip galvanized gratings. Marine grade brushed stainless steel tiles; powder-coated gratings. Guidance for specification option: Mild steel gratings powder-coated to BS EN ISO 1461, to any RAL or BS colour. Insert colour requirements. Manufacturer guidanceTiles: alternative grit range. Small quantities of tiles can be heat-treated to create different shades of bronze, consult manufacturer for details. |
Design | Continous facade. Featured area facade. Patterned facade. Ventilated/ partially open facade. Guidance for specification option: E.g. an arrangement to allow ventilation or the passage of natural daylight. Graphics/ logo facade. Display backdrop facade. Guidance for specification option: E.g. as a backdrop for visual displays interacting with projected lighting. Other. Guidance for specification option: Insert details e.g. etched tiles. Manufacturer guidanceInsert requirements e.g. drawing references. |
Materials | Tiles: Marine grade AISI316L stainless steel. Grating panel: Mild steel S235JR. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 1.8 (kg CO₂ eq/kg) Declared unit : 1.8 | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Product certifications
BS EN 1090-1
UKCA CE Mark Certificate of Factory Production Control
Literature
STEREO-KINETIC® Wall - architectural façade
Case studies

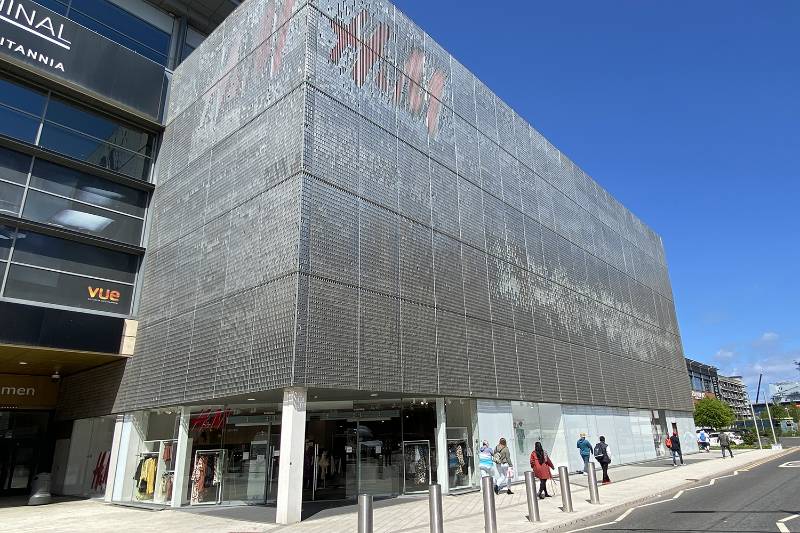

STEREO-KINETIC® wall cladding transforms refurbished car park at Festival Square, Basingstoke
