StepOne - Platform Lift

Verified by manufacturer 2 days ago

Three steps (including landing)

Guldmann Limited Variant:

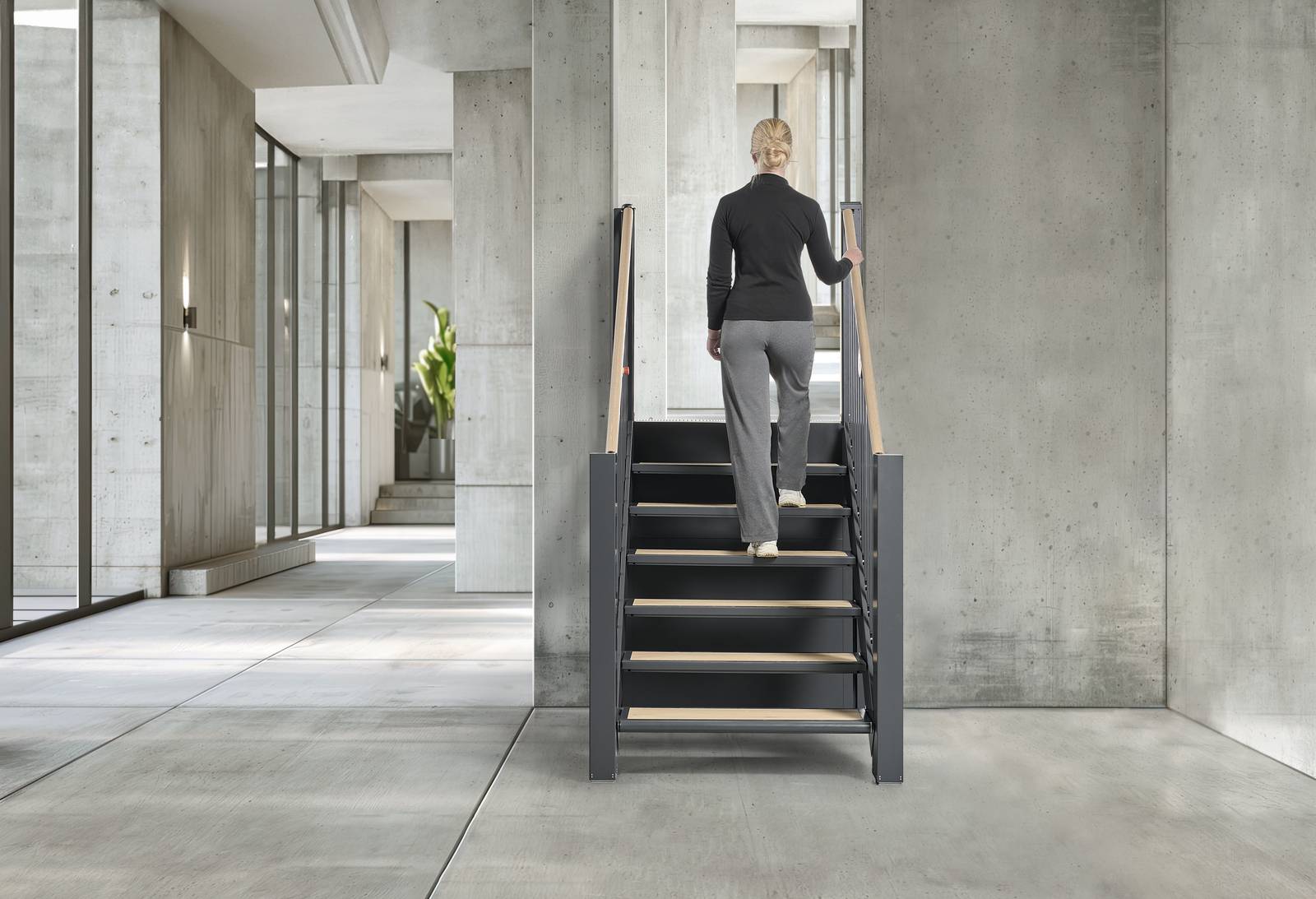

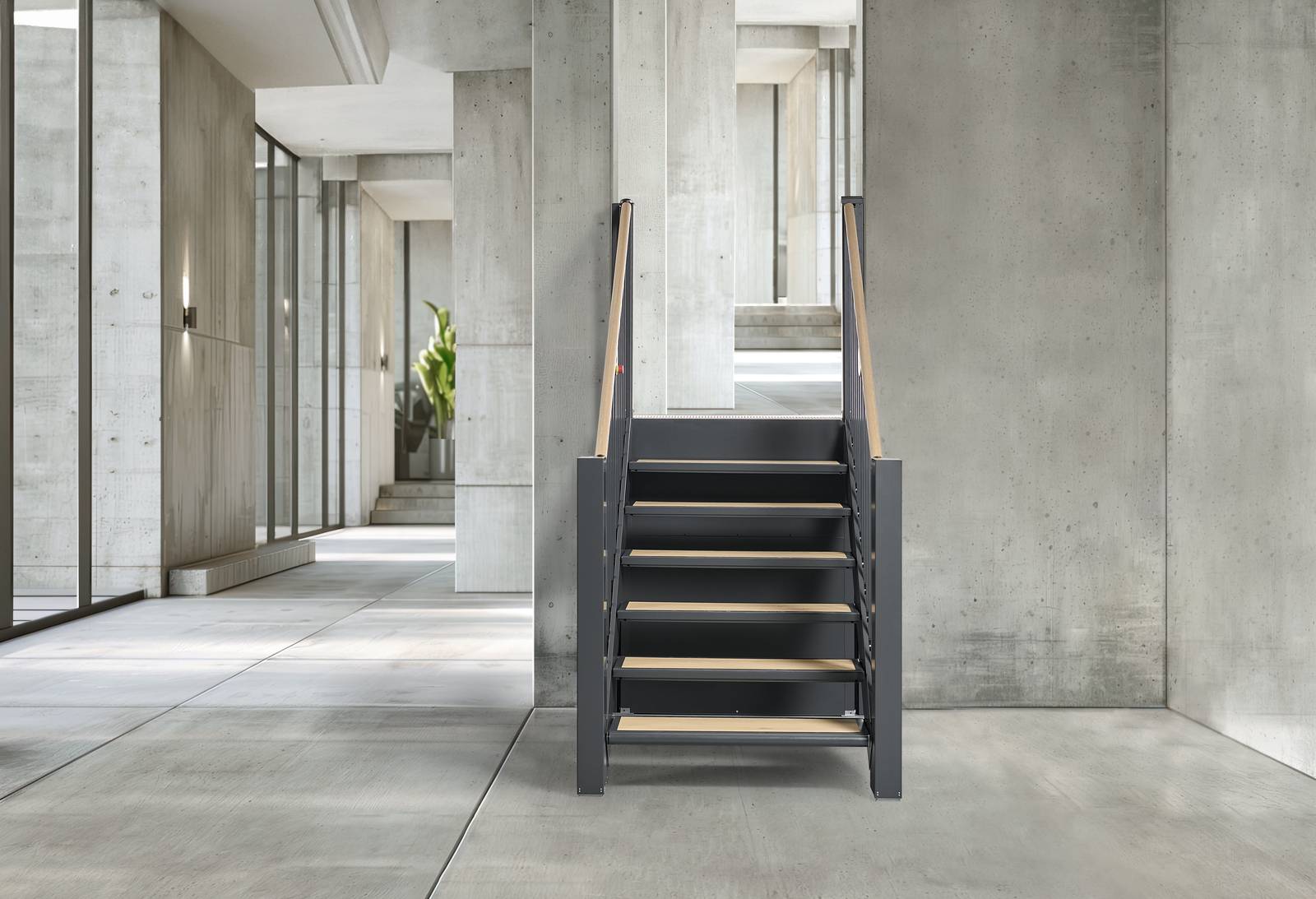

The StepOne platform lift is a state-of-the-art lift that seamlessly transforms from stairs to a platform, providing unparalleled design flexibility and accessibility.

Jump to:
+44 (0)1347 825287 Website

Application

StepOne is designed for permanent installation indoors. It is mounted to the wall for stability while the two front columns move back and forth on wheels to transform between stair mode and platform mode. May be used in both public and private areas.

Description

StepOne is a platform lift that can transform from stairs to platform to provide access between different levels for people with impaired mobility, e.g. walking-impaired, wheelchair users and persons with pushchairs. StepOne can overcome height differences in physical surroundings from 500 to 1250 mm.

With its innovative engineering and thoughtful design, StepOne offers an elegant, safe, and convenient way to bridge level differences without compromising the surrounding aesthetics.

StepOne is the first standard platform from Stepless by Guldmann that transforms effortlessly from stairs to a platform lift without requiring any modifications to the building’s structure. Designed to integrate effortlessly into new as well as existing spaces, it delivers both form and function, catering to diverse architectural needs.

StepOne offers selective design flexibility, allowing customers to create a solution that aligns perfectly with their vision. Choose from a range of configurations, materials, and colours to match your project’s specific needs.

General information

Color

Silver

Grey

Material

Aluminium

Wood

Stainless steel

Shape

Other

Length

Bespoke

Width

900 mm

1100 mm

Height

500 mm

1250 mm

Bespoke

Warranty description

One year

Uniclass

Pr_65_80_42_83 Step liftsPrimary

CAWS

X12/110 Vertical lifting platform systems

X12/355 Step lifts

SKU Code

565403, 565404, 565405, 565406, 565413, 565414, 565415, 565416

Specification data - Step lifts

Standard

Manufactured in compliance with the Council Directive 2006/42/EC of May 17th 2006.

Rated load (minimum)

400 kg.

Guidance for specification option:

When in stair mode, StepOne supports a maximum point load of 150 kg at the edge of a step. This load limit must not be exceeded.

Drive type

Manufacturer's standard.

Platform configuration

Through, three steps (including landing).

Enclosure

-

Frame material

Steel.

Frame finish

Powder-coated.

Frame colour

Anthracite grey, RAL 7016.
Custom.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Infill material

Horizontal wire balusters.
Horizontal metal beam balusters.
Vertical metal beam balusters.
Custom balusters.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

See also Handrails below.

Infill finish

Manufacturer's standard.
Custom.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Infill colour

Manufacturer's standard.
Custom.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Gate leaves

-

Operation

Automatic upper gate.
Ramp/ roll-off guard.

Guidance for specification option:

  • Upper safety gate: prevents people from falling off the upper landing when StepOne is in motion.
  • Ramp/ roll-off guard: prevents users from falling off when StepOne is in motion.

Manufacturer guidance

See also Safety features below.

Frame material

Manufacturer's standard.

Frame finish

Manufacturer's standard.

Frame colour

Manufacturer's standard.

Carrier floor

-

Dimensions

-

Width (minimum)

900 mm.

Guidance for specification option:

Overall width: 1090 mm.

1100 mm.

Guidance for specification option:

Overall width: 1290 mm.

Depth (minimum)

Step mode: 1571–1542 mm.
Platform mode: 1715 mm.

Material

Manufacturer's standard.

Colour

Light oak look.
Dark oak look.
Aluminium tread plate.
Custom finish.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Tread infill only; edge and nose to match Enclosure - Frame colour above.

Electrical supply

Battery backup of sufficient capacity to return the platform to the lowest landing whilst under maximum working load.

Guidance for specification option:

StepOne has two 12 V, 9 Ah gastight and maintenance-free batteries as backup to guarantee the platform can always be moved to the nearest landing, even if the mains supply disappear.

Control device type

Upper level control panel (up and stair buttons).
Platform control panel (up, down and emergency stop buttons).
Lower level control panel (down and stair buttons).

Guidance for specification option:

Consult manufacturer's literature for button functions and modes.

Control features

Manufacturer's standard.

Accessories

Floor protection plate.

Guidance for specification option:

To prevent wheels leaving marking on the floor when transforming between stair and platform mode.

Two-way communication system.

Guidance for specification option:

Optional two-way emergency communication system is available to call for assistance.

Key lock.

Guidance for specification option:

  • Available to protect StepOne against unintentional use or misuse.
  • When the key is inserted into the lock and turned to the locked position, all functions are completely disabled and secured. The key can then be removed to prevent unauthorized use.
  • To unlock StepOne and enable all functions, insert the key into the lock and turn it to the unlocked position

Lower safety arms.

Guidance for specification option:

Two optional lower safety arms are available for increased safety. The arms rise automatically when StepOne is used in platform mode and lower automatically when StepOne reaches the lower landing (to allow free passage onto the landing).

Remote control.

Handrails

Light oak.

Jatoba.

Stainless steel.

Custom.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

The platform is to be installed with a minimum clearance of 100 mm from the handrail to the wall to avoid danger of crushing.

Speed

23 mm/s.

Lift height

500–1250 mm.

Overall height

Platform to handrail: 970 mm.
Platform to floor (step mode): 520–540 mm.

Loading

Clear loading area: 900 x 1425 mm.

Power consumption

Standby: 14 W (sleep mode: 12 W).
Operation: 750 W.

Power supply

Primary: 90–264 V a.c.
Secondary: 24 V d.c.

Guidance for specification option:

  • 230 V fuse: 6 A mcb.
  • 24 V fuse: 40 A mcb.

Safety features

Upper safety gate.
Ramp roll off guard.
Emergency stop.
Safety lists.
Overload protection.

Guidance for specification option:

  • Emergency stop: a red emergency stop button is located on the platform control panel. When pressed, it stops all movement of StepOne.
  • Safety lists: installed beneath each step and along the lower edges of the balustrades to prevent crushing of limbs.
  • Overload protection: StepOne is protected against overloading. In case of overload, the lights around the Up and Down buttons on the platform control panel start blinking repeatedly (two blinks).

See Gate leaves - operation for details of upper safety gate and ramp roll off guard.

Ingress protection

IP21.

Operating temperature

+5 to +40°C.

Sound

Noise level: <70 dB(A).

Weight

Maximum 360 kg.

Guidance for specification option:

Consult manufacturer for details depending on specification.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

Material

Aluminium
Wood
Stainless steel

Recyclability

Recyclable

Expected Life

15 year
