Step Risers | Concrete Step
Verified by manufacturer 3 months ago
EPD
Certificate type
Decorative step edging.
Application
This product should be designed into projects using guidance from the Building Regulations, British Standards and any other relevant documents.
Description

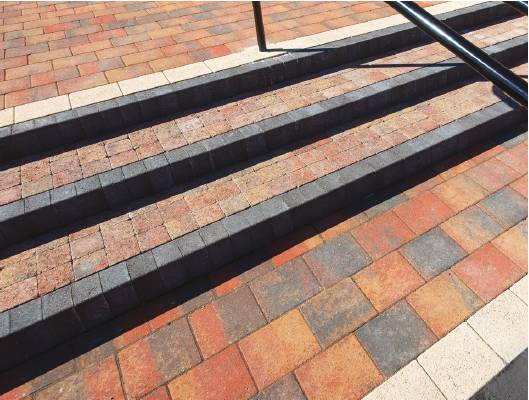

These decorative step risers offer versatility and long-lasting colours. The smooth finish and vibrant solid and blended colours available enable the creation of distinctive step edges.
Features and benefits:
- Enables the creation of distinctive and contrasting step edges.
- A functional and aesthetically pleasing product.
- Superb hard-wearing smooth surface.
- Vibrant long-lasting colours.
- Various Tobermore products can be used to infill the tread behind Step Risers.
- 100% renewable energy used.
- 100% rainwater harvesting system and groundwater bore hole used.
- Hard wearing surface layer.
It is the responsibility of the designer to ensure that the products specified comply with all regulations. Tobermore recommend that compliance is sought from Building Control prior to the installation of any of its step products.
General information
Color | Grey Guidance for specification option:
Other Guidance for specification option:
|
Finish | Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 173 mm 190 mm |
Width | 104 mm 160 mm |
Height | 80 mm 100 mm |
Uniclass | |
CAWS | Q25/31 Concrete flag paving systems Q25/315 Concrete flags |
Specification data - Concrete step units
Standards | To BS EN 1338.Manufacturer guidanceInstalled to BS 7533-6:1999. |
Colour | Charcoal.Bracken.Heather. |
Finish | |
Treads | Smooth. |
Risers | Smooth. |
NominalSize | 190 x 160 x 100 mm. 173 x 104 x 80 mm. |
Efflorescence | Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence. |
TensileStrength | >3.6 MPa. |
BREEAM rating | Refer to the Green Guide to Specification, 4th Edition 2009. |
Pack size | 240. Guidance for specification option: Weight per pack: 1669 kg. 560. Guidance for specification option: Weight per pack: 1865 kg. |
PhysicalPropertiesSlipResistance | Extremely low. |
PhysicalPropertiesSkidResistance | Extremely low. |
Recycled content (minimum) | Not less than 5%. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 5 % Guidance for specification option: Not less than 5%. |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration (EPD) Kerbs- Kerb Large, Kerb Small, Step Risers, Textured Kerb and Radii
Literature
Tobermore - Steps Brochure (Concrete Steps, Granite Step Units, Step Risers etc..)
