Granite Step Unit | Concrete Step
Verified by manufacturer 3 months ago
EPD
Certificate type
Sparkling granite concrete block.
Application
Suitable for both traditional and contemporary buildings.
Description
A concrete block with a coarse textured surface exposing sparkling granite aggregates, creating an aesthetic appeal.
Features and benefits:
- Designed to incorporate with any size of step frame, the three sizes are suitable for placing in a variety of positions over a split-level area, creating interesting and unique step designs.
- 100% renewable energy used.
- 100% water used from rainwater harvesting system and groundwater bore hole.
It is the responsibility of the designer to ensure that the products specified comply with all regulations. Tobermore recommend that compliance is sought from Building Control prior to the installation of any of its step products.
General information
Color | Silver |
Finish | Guidance for specification option: Granite aggregate. Manufacturer guidanceAggregate |
Material | Concrete |
Shape | Rectangle |
Length | 350 mm 400 mm |
Width | 150 mm |
Height | 1000 mm |
Uniclass | |
CAWS | Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving |
Specification data - Concrete step units
Standards | BS EN 1339. |
Step unit configuration | Solid step. |
Colour | Granite aggregate. |
Finish | |
Treads | Hard-wearing granite aggregate surface. |
Risers | Hard-wearing granite aggregate surface. |
PhysicalPropertiesProfileArrises | Square. |
PhysicalPropertiesDimensionsAndAssociatedTolerancesNominalSizes | 350 x 150 x 1000 mm. 350 x 150 x 500 mm. 400 x 150 x 1000 mm. 350 x 150 x 750 mm. |
PhysicalPropertiesDimensionsAndAssociatedTolerancesTolerancesOnDiagonals | As per BS EN 1339. |
Strength | >5 MPa. |
Granite content | Not less than 56.4% of granite aggregate in surface layer. |
Efflorescence | Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence. |
BREEAM rating | In accordance with the Green Guide to Specification, 4th Edition 2009. |
PhysicalPropertiesWeatheringResistance | Class 3. |
PhysicalPropertiesAbrasionResistance | Class 3. |
PhysicalPropertiesSlipResistance | Extremely low (>75 USRV). |
PhysicalPropertiesSkidResistance | Extremely low (>75 USRV). |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Third party certifications
Third party certifications
EPD

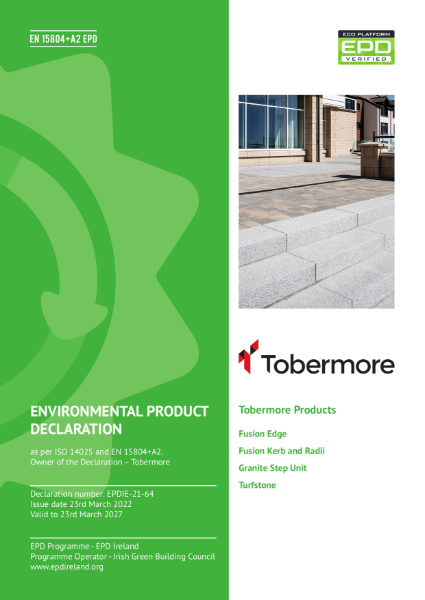

Environmental Product Declaration (EPD) - Fusion Kerb Edge, Fusion Kerb & Radii, Granite Step Unit, Turfstone
Case studies

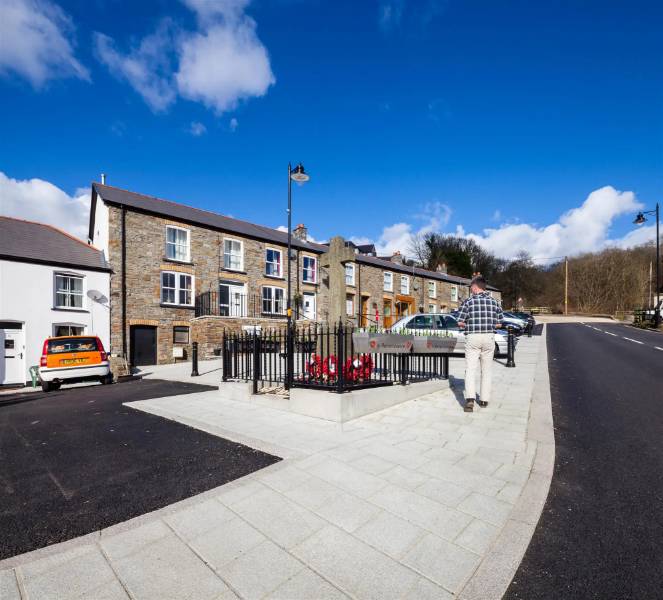

Bedlinog Square
