To bridge over and provide access to existing services, plant and equipment.

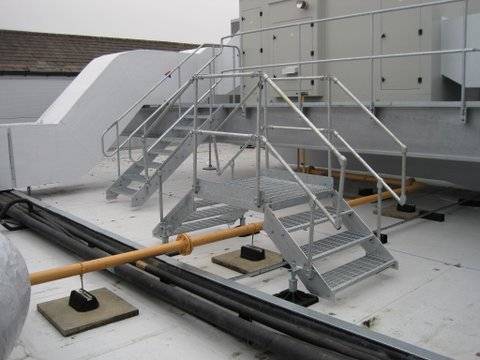

To allow for safe passage of personnel accessing roof-top equipment. There are three basic modular Big Foot Step Overs available with 2, 3, and 4 steps and a 1 m landing section. The four legs on each Step Over are supplied with 305 mm feet and AV mats for stability. The metalwork is galvanized to withstand the year round elements on a roof. The Big Foot Step Over system utilizes Big Foot leg assemblies.
Custom Step Over/ Hop Over:
Big Foot Systems will be happy to specify an access system designed specially to meet any need. Contact your Big Foot Regional Specification Manager.
Frame: Hot dip galvanized carbon steel, Feet: Nylon 6 B601L 30% glass fibre filled, Anti-vibration mat: SBR-recycled rubber
|Uniclass 2015||Working platform and walkway systems (Ss_35_10_30_95)|
2 Step Step Over.
3 Step Step Over.
4 Step Step Over.
|Hop over platform|
Optional handrail; Size (h x l): 1100 x 1000 mm.
Width: 600 mm.
Width: 1000 mm.
|Standard product features|
Landing length: 1000 mm.
Hop over platform:
- Plastic foot:
- Metal framework:
