SteelMaster 120SB Protective Intumescent Coating
Verified by manufacturer 23 days ago
Certifire Certificate
Certificate type

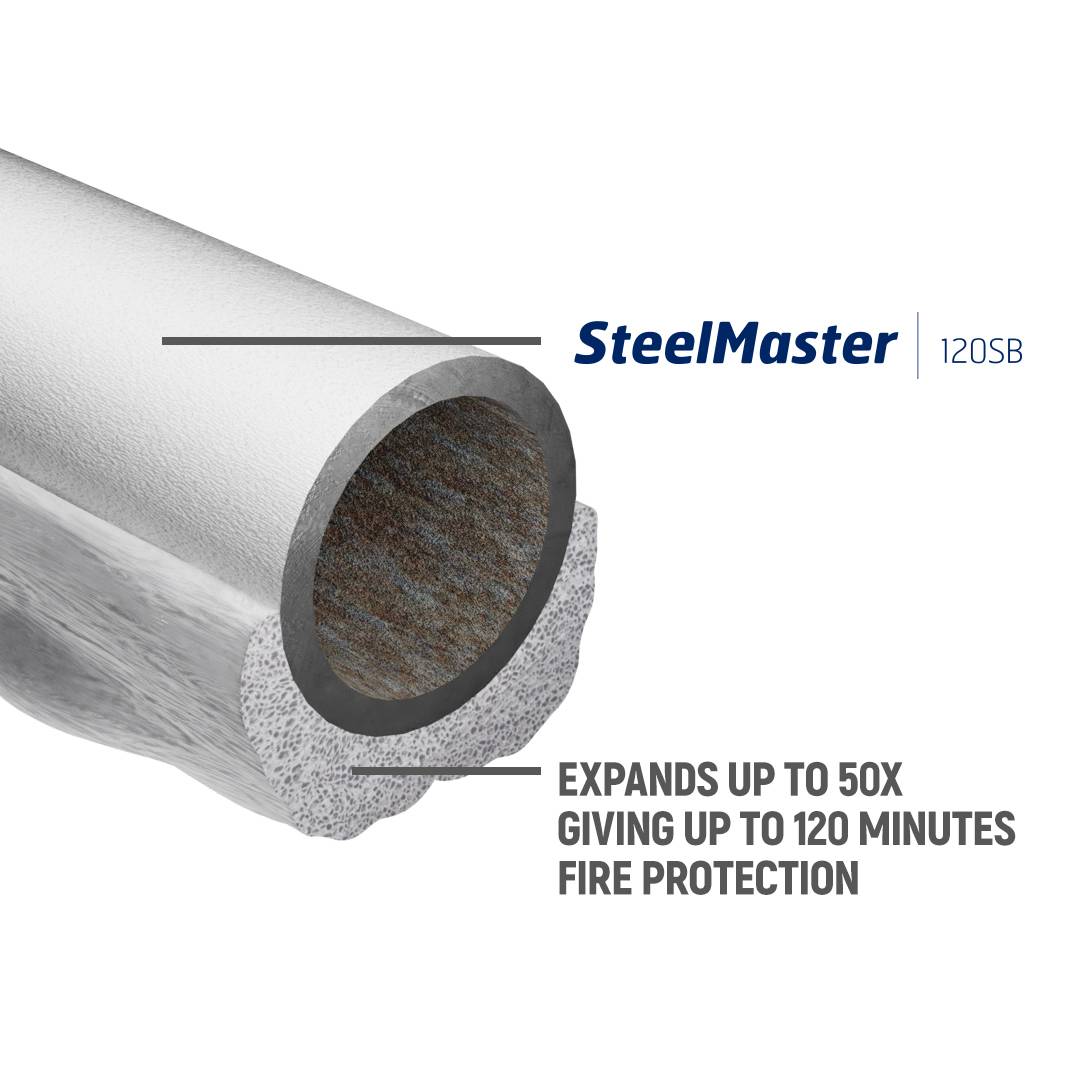

Thin-film intumescent coating offering up to 120 minutes of fire protection for a wide range of I section beams and columns.
Application
Suitable for structural steel exposed to internal environments up to corrosivity category C4 (ISO 12944-2), with a compatible topcoat.
Description
A solvent-based intumescent coating that provides up to 120 minutes of fire protection for structural steel exposed to cellulosic fire.
Features and benefits:
- Majority of steel sections covered.
- Easy airless spray application and ready to use
- Reduced application time.
- Reduced site costs.
- Fire tested and approved to BS 476 parts 20 and 21 and EN 13381-8.
General information
Color | White |
Material | Solvent based |
Shape | Formless |
Uniclass | |
CAWS | G10/630 Galvanizing plus site-applied G10/635 Thermally sprayed zinc coating plus site-applied G10/640 Shop painting G10/650 Site painting G10/660 Shop plus site painting M60/175 Protective coating M61/110 On-site coating to primed steel M61/115 On-site coating to galvanized steel M61/120 On-site coating to existing steel M61/140 On-site overcoating to existing steel M61/150 Off-site coating to unprimed steel M61/160 Off-site coating to primed steel M61/170 Off-site coating to galvanized steel |
Specification data - Intumescent protective coatings
Composition | Solvent-based acrylic thin film intumescent coating. |
Colour | White. |
Capacity | 20 L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
Certifire Certificate
CF 845
