Steel Protection Macropoxy® 4600 - Multi-Functional Protection Coating
Verified by manufacturer 3 days ago
A multi-functional high-solids two-pack epoxy zinc phosphate coating for the protection of carbon steel.
Application
Suitable for the protection of steelwork in a range of exposure environments from C1 to C5 as defined in EN ISO 12944-6:2018, including buildings, petrochemical plants and power stations.
Not for immersion service.
Suitable for application in shops or onsite for blast cleaned steel or suitably prepared galvanized steel and stainless steel.
Industries:
- Power generation.
- Bridge and highway.
- Steel fabrication.
- Mining.
- Water and wastewater.
- Food and beverage.
- Oil and gas.
- Marine.
- Pharmaceutical.
Description
A multi-functional high-solids two-pack epoxy zinc phosphate coating for the protection of carbon steel.
Suitable for the protection of steelwork in a range of exposure environments from C1 to C5 as defined in EN ISO 12944-6:2018, including buildings, petrochemical plants and power stations.
Not for immersion service.
Suitable for application in shops or onsite for blast cleaned steel or suitably prepared galvanized steel and stainless steel.
Features and benefits:
- Suitable for application in shops or onsite for blast cleaned steel or suitably prepared galvanized steel and stainless steel.
- Excellent corrosion resistance with certified systems according to ISO 12944-6:2018 up to C5 for two- or three-coat systems.
- Reduce project costs by up to 25% with increasing productivity, extending durability and reducing material requirements.
- Optimized at low temperature for site applications up to -5°C.
- VOC is 216 g/L to meet stringent VOC requirements, even when thinned.
General information
Color | Other Guidance for specification option: Redox. Grey Guidance for specification option: Light or dark. White Guidance for specification option: Off white. |
Finish | Sheen |
Material | Epoxy |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M61/170 Off-site coating to galvanized steel M61/160 Off-site coating to primed steel M61/150 Off-site coating to unprimed steel G10/660 Shop plus site painting G10/640 Shop painting |
SKU Code | Macropoxy® 4600 |
Specification data - Epoxy resin coatings
Classification data | |
Colour | Light grey. Dark grey. Off white. Redox. |
Composition | Solvent-based. Guidance for specification option: No.2 for cleaning. Global R7K119 or No.2 or No.50 for thinning with maximum 10% by volume (up to 6% by weight) to adapt the viscosity. Thinning will affect VOC compliance, sag tolerance and dry film thicknesses. |
Approvals | ISO 12944-6:2018 C1 to C5 certificates available. Guidance for specification option: For details of substrate/ system/ corrosivity categories, consult manufacturer. |
Application method | Airless spray, conventional spray, brush or roller. |
Drying time | At -5°C: to recoat: 24 hours; to handle: 30 hours. At +10°C: to recoat: 5.5 hours; to handle: 8 hours. At +23°C: to recoat: 2 hours; to handle: 3 hours. At +35°C: to recoat: 45 minutes; to handle: 40 minutes. |
Coverage | Theoretical: 10.67 m²/L (6.67 m²/kg). |
Flash point | Base: 24°C; hardener: 28°C. |
Volume solids | To ISO 3233-3, 80% ±3%. |
VOC content | 216 g/L EPA Method 24. 233 g/L (146 g/kg) EC Solvent Emissions Directive (Council Directive 1999/13/EC). |
Density | 1.6 kg/L. Guidance for specification option: May vary depending on colour required; consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Epoxy |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 3.39 (kg CO₂ eq/kg) Declared unit : 3.39 Lower emissions | |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

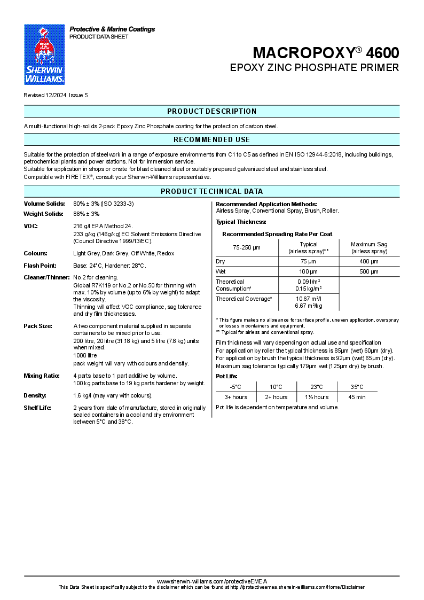

Steel Protection Macropoxy® 4600 Product Data Sheet
