Steel Heritage Window System - Janisol Arte 66
Verified by manufacturer 16 days ago
Janisol Arte 66 Turn/Tilt
Janisol Arte 66 Turn/Tilt
Slimline steel profile system for highly thermally insulated turn/tilt windows and glazing.
Application
Suitable for highly thermally insulated turn/ tilt windows and glazing.
Description

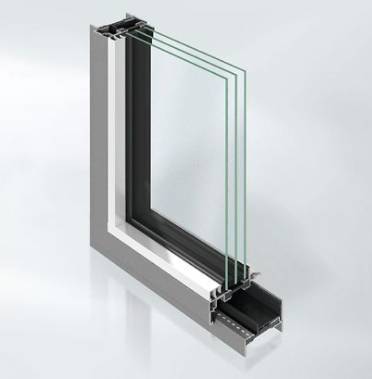

Fixed glazing turn/ tilt windows with a slimline steel profile and basic depth of 66 mm allowing for higher structural and sound reduction properties as well as the easy installation of triple-pane insulating glass.
A glazing bead system and gasket for dry glazing facilitates glass installation, while Euro grooves integrated in the system ensure easy installation of fittings.
Features and benefits:
- Maximum permissible heights and weights of the turn/ tilt vent ensure a wide variety of possible uses.
- A diverse range of profiles and glazing beads allows totally individual designs to be created.
- High sound reduction values for an expanded area of application.
- Concealed window fittings permit a consistent design and clear lines.
- Slimline profiles mean maximum light efficiency.
- Highly thermally insulated with fibre-reinforced PUR insulating bar and optional additional insulation in the frame or glazing rebate.
Standards:
- EN 14351-1.
- EN 14024.
- DIN 18056.
- EN 12210.
- EN 12208.
- EN ISO 10140.
- EN ISO 10077-2.
- EN 12207.
- EN 14351-1.
- EN 13115.
- EN 13049.
- EN 14024.
- DIN 18008-4.
General information
Color | Manufacturer guidanceAlmost unlimited choice of colours. |
Finish | Powder-coated Painted Guidance for specification option: Wet paint coating. Zinc plated |
Material | Steel |
Uniclass | |
CAWS | L10/10 Wood windows L10/310 Steel windows |
Specification data - Steel window units
Standard | Non-fire- and/ or smoke-rated windows to BS EN 14351-1. |
Dimensions and configurations | Tilt / turn. |
Product performance | |
Weather performance | |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, 9A. |
Resistance to wind load | To EN 12210, C5. |
Environmental | |
Acoustic performance rating | To EN ISO 10140, up to 47 dB. |
Thermal | |
Whole window U-value | To EN ISO 10077-2, 1.6 W/m²·K. |
Frame | |
Material | Steel. |
Finish as delivered | |
Coating | Zinc iron layer.Guidance for specification option: ZF 100 surface finish. Powder-coated.Painted.Guidance for specification option: Wet paint coating. |
Colour | Guidance for specification option: Almost unlimited choice of colours. |
Ventilator | 70 mm.Manufacturer guidanceWindow vent. |
Operation | Manual.Guidance for specification option: Push, pull. |
Execution | Fixing of steel frames. |
Product Reference | Janisol Arte 66 Turn/Tilt |
Depth | 60–66 mm. |
Face width | 40 mm. Guidance for specification option: Indow sash bars . 53 mm. Guidance for specification option: Frame including vent. 76 mm. Guidance for specification option: Double vent assembly. Manufacturer guidanceNarrow face widths. |
Weight | 180 kg. Manufacturer guidanceMax vent weight. |
Glazing/ infill thickness | 15–44 mm. Guidance for specification option: Glazing installed by means of dry or wet glazing. Manufacturer guidanceInfill unit thickness. |
Mechanical strength | To EN 14024, Class 4. |
Operating forces | To EN 13115, Class 1. |
Impact resistance | To EN 13049, Class 4. |
Face width | 54 mm. |
Height | 2300 mm. |
Sustainability data
Country of material origin | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 23 % |
