NBS Source

Steel Doors Insurance-Rated LPS1175

Verified by manufacturer 11 days ago

HAG Ltd. - The Door Specialists

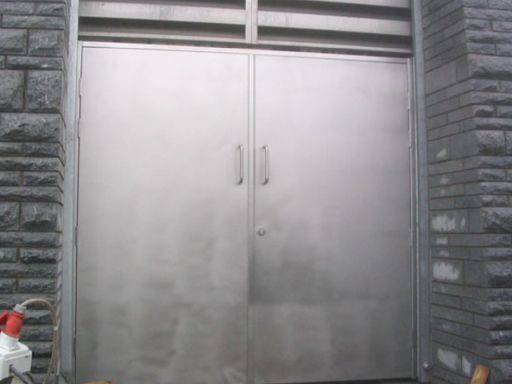

High security double door constructed from 1.5 mm zinc-protected steel sheets joined together in a bonding process with a solid timber core.

Jump to:
BIM object icon
0800 072 3444 Website

Application

Suitable for airports, distribution centres, hospitals, industrial units, offices, retail units, banks.

Description

High security double door constructed from 1.5 mm zinc-protected steel sheets joined together in a bonding process with a solid timber core.


Features and benefits:

  • The frame is manufactured from 1.6 mm profiled zinc protected steel.
  • The AD20 door is tested to BS 1627, Levels 2–5, offering attack resistance for up to 20 minutes (Secured By Design specification door sets available tested to PAS 24 or STS 202).
  • Designed for use in commercial and industrial premises such as factories, offices and retail units to resist attempted forced entry.
  • Bespoke manufacturing of this door tailors it to a site specific situation. The AD20 can be installed internally or externally.
  • Also available as a single door (specified separately).

General information

Color

Other

Available in 500 RAL and BS 4800 colours.

Finish

Powder-coated

Polyester powder-coated (PPC).

Material

Steel

1.5 mm-thick corrosion resistant Zintec/ Aluzinc.

Shape

Rectangle

Length

Bespoke

Width

1290–2600 mm size range, consult manufacturer for details.

1290 mm

2600 mm

Height

Maximum height.

2900 mm

WarrantyDescription

One year

Comprehensive warranty.

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/510 Strongroom door

Product range

Armourdoor - Steel Doors

Specification data - Carbon steel doorsets

Standard

To BS 1627.

Third-party certification

Secured by Design accreditation.

Standard.

PAS 24.

Tested to PAS 24.

LPS 1175 SR1.

As specified.

LPS 1175 SR2.

As specified.

LPS 1175 SR3.

As specified.

LPS 1175 SR4.

As specified.

LPS 1175 SR5.

As specified.

Configuration

Double leaf, single action.

Doorset size

Insert requirements:

  • Width: 1290–2600 mm.
  • Height (maximum): 2900 mm.

-

Frame

-

Material

1.6 mm-thick Zintec/ Aluzinc.

Threshold

15 mm rebated.

Standard.

5 mm driveable.

DDA compliant.

Perimeter seals or inserts

Variable subframe supplied to accommodate site tolerance of ±30 mm.

Finish

-

Coating

Polyester powder-coated.

Standard range of RAL/ BS4800 colours.

Texture

Polyester powder-coated.

Colour

Insert requirement. Available in 500 RAL and BS4800 colours.

-

Door leaf

-

Thickness

50 mm.

Core

Infill composed of solid timber with integral steel stiffeners.

Panel details

Security door blades manufactured from 1.5 mm sheets lock formed together, fitted with an anti-jemmy astragal.

Material

1.5 mm thick corrosion resistant Zintec/ Aluzinc.

Finish

-

Coating

Polyester powder-coated.

Texture

Polyester powder-coated.

External colour

Insert requirement. Available in 500 RAL and BS4800 colours.

Internal colour

As External.

Insert requirement. Available in 500 RAL and BS4800 colours.

Hardware

High security triple point sash lock with high security cylinders, anti-drill, bump and copy protected.

Operation

Manual.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

10

Recycled content

10 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2015

1

IFC

IFC2X3

1
