Steel 1 Mailbox
Verified by manufacturer 6 months ago
An in front/ out front vertical product that is suitable for internal property usage as standard.
Application
Internal applications.
Description
The Steel 1 mailbox is designed and manufactured to offer a product with exceptional quality at an economical price point.

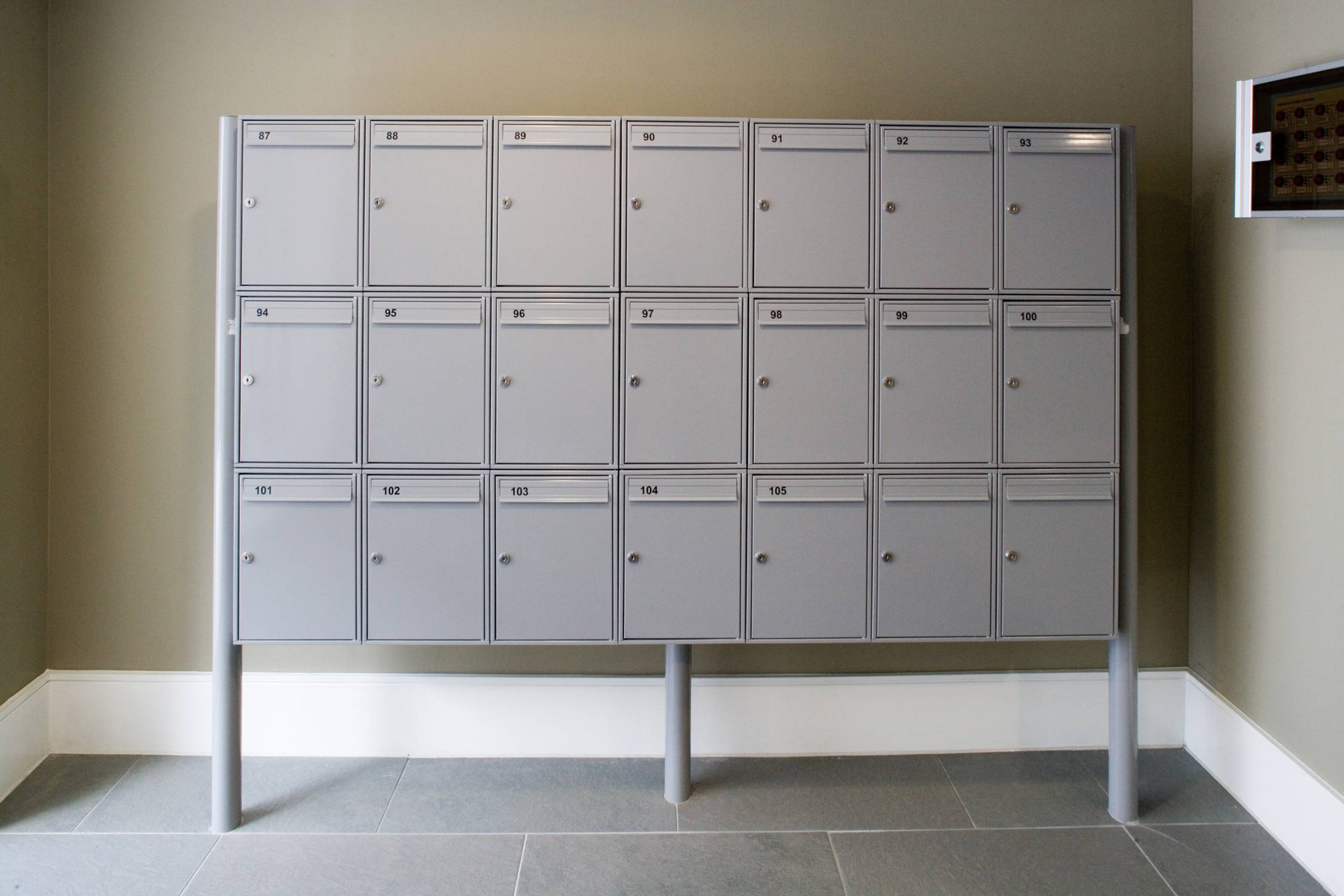

The Steel 1 is an in front / out front mailbox that can be either wall mounted, wall recessed or freestanding using support legs.
The mailbox is finished using any of our standard colour RAL colours, but can also be produced with used any RAL colour at an additional cost. All RAL colour finishes come in polyester powder coated paint that has been coated to a depth of 75/100 microns. (Sample tested to 1,200 hours salt-water spray).
Features and benefits:
- A vertical steel collection in front / out front mailboxes.
- Manufactured from high quality steel.
- Accepts and securely stores A4 sized mail.
- Supplied with a set of 2 keys. Master suited keys are available on request.
- Can be manufactured as single or multiples.
- Secured by design homes 2023 guide compliant.
- Made in the UK.
General information
Color | Bronze Brown Copper Cream Gold Manufacturer guidanceAny RAL colour from the standard colour range, contact manufacturer for details. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 120 mm |
Width | 276 mm |
Height | 380 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/400 Mailboxes N10/96 Mailboxes |
Specification data - Letter boxes
Standard | To BS EN 13724. |
Classification grades (minimum) | |
Type of aperture | Standard mailbox flap, with security bridge. |
Aperture size | 235 x 30 mm.Guidance for specification option: Width x Height. |
Fire resistance | Class 0. |
Form | Rectangle. |
Size | 120 x 380 x 276 mm.Guidance for specification option: Depth x Height x Width. |
Materials | Zintec steel. |
Integral accessories | SLB lock and two keys, internal security bridge.Guidance for specification option: Master suited keys are available on request. |
Installation | Freestanding. Recessed. Wall mounted. With door entry system. Bespoke arrangement. |
Accessories | None. Additional security bridge. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Steel 1 Datasheet
Case studies
Swansea University - Bay Campus
