StarTec Magnetic Mortice Latch (HUKP-0103-46) - Door lock
Verified by manufacturer 3 months ago
EPD
Certificate type
Stainless steel magnetic mortice latch with 55 mm backset.
Application
Suitable for residential non fire doors only.
Description
Stainless steel magnetic mortice latch with 55 mm backset.
Features and benefits:
- Latchbolt retracted by lever handle silent operation.
- Latchbolt remains hidden whilst door in open position.
- Magnet throws into keeper plate supplied on closure.
- Backset 55 mm / 85 mm case size.
- Forend radius. Stainless steel 20 mm width.
- Pierced at 38 mm c.c. for bolt through fixing.
- 304 Grade Stainless Steel.
General information
Color | Silver Gold Black Brown Bronze |
Finish | Satin Polished Matt |
Material | Steel Stainless steel Guidance for specification option: 304 Grade. |
Length | 85 mm |
Width | 20 mm |
Height | 235 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/24 Door locks P21/515 Door locks |
SKU Code | HUKP-0103-46 |
Product range |
Specification data - Door latches
Latch or lock type | Magnetic mortice latch. |
Backset | 55 mm. |
Material and finish | Satin stainless steel. Polished brass PVD. Matt black PVD. Light bronze. Manufacturer guidanceOther finishes available to special order. |
Grade | 304 Grade stainless steel. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Steel Stainless steel Guidance for specification option: 304 Grade. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 5.4 kg CO₂ eq/kg |
Declared unit | 5.40 kg CO₂ eq/kg Certified Lower emissions |
Expected Life | 30 year |
Product certifications
Certified
Product certifications
EPD
EPD Hafele Locks (7)
Literature
8. Project - Architectural Locks & Latches
Similar products from Hafele UK Ltd
Bar Design WC Set Turn And Release (HUKP-0201-19) - Door accessories
Dialock DT710c-SS Hotel Door Terminal (HUKP-0106-02) - Door handle
Euro Profile Cylinder With Turn (HUKP-0503-03) - Locking Cylinders
Euro Profile Double Cylinder (HUKP-0503-02) - Locking Cylinders
Euro Profile Single Cylinder (HUKP-0503-01) - Locking Cylinders
Hafele Premier Euro Profile Cylinder With Turn (HUKP-0603-03) - Locking Cylinders
Hafele Premier Euro Profile Double Cylinder (HUKP-0603-02) - Locking Cylinders
Hafele Premier Euro Profile Single Cylinder (HUKP-0603-01) - Locking Cylinders

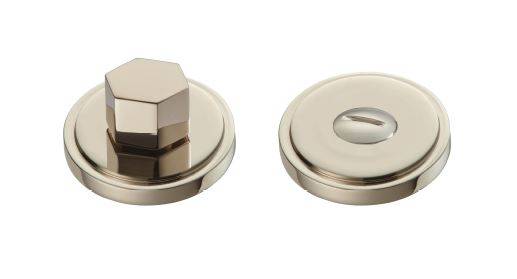

Hexagonal Design WC Set Turn And Release (HUKP-0201-17) - Door accessories
