Star 15 mm - Suspended Ceiling System
Verified by manufacturer 1 day ago
Board
Board
Mineral fibre ceiling tile system complete with uneven perforation, a smooth surface finish and meets the needs for a modern, elegant design visual.
Application
Suitable for use in:
- Retail.
- Offices.
- Meeting rooms.
- Installation rooms.
- Production areas
Description

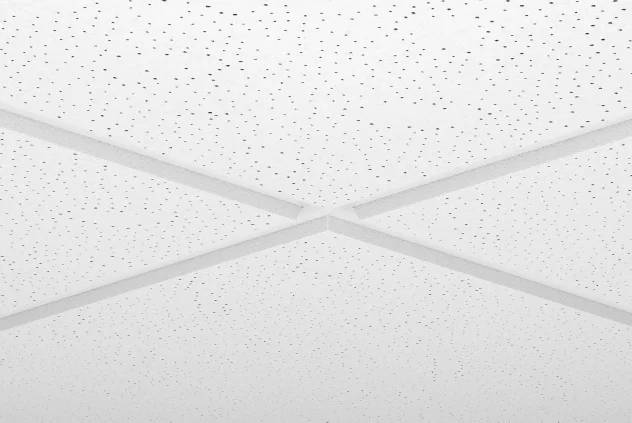

STAR 15 mm features fine, uneven perforations with a smooth surface finish, and meets the needs for a modern, elegant design visual.
Features and benefits:
- Good sound absorption (0.60 αw).
- Good sound attenuation (34 dB).
- Excellent light reflectance (88%).
- Fire reaction Euroclass A1.
- Choice of infill sizes.
- Choice of board, tegular and K2C2 edge details as standard.
- Mezzanine Floors
General information
Color | White |
Finish | Scraped |
Material | Mineral fibre |
Shape | Square Rectangle Other |
Length | 600 mm 1200 mm 2500 mm |
Width | 300 mm 600 mm |
Height | 15 mm |
Warranty description | Other |
Uniclass | |
CAWS | K40/265 Infill units K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings |
Specification data - Modular suspended ceiling systems
Classification data | |
System performance | Manufacturer guidanceInsert requirements. |
Ceiling support | Exposed demountable - System C. Exposed - bandraster, demountable - System 1.3. Exposed - corridor demountable - System F.3. DONN® DX3-24 | SG exposed 24 mm grid - System C. |
Support fasteners | Manufacturer's standard. |
Ceiling units | Mineral fibre infill units. |
Samples required | Product samples. Demountable suspended ceiling prototypes. Not required. Manufacturer guidanceConsult manufacturer for options. |
Weight | 3.6–3.8 kg/m². |
Light reflectance | 88%. |
Constant humidity resistance | 95% RH. |
Third-party certification | Indoor Air Quality Class A+. |
Reaction to fire | To EN 13501-1, Euroclass A2-s1, d0. To ASTM E 84, Class A. |
Colour | White. |
Sound absorption | To EN ISO 11654 and EN ISO 354, αw = 0.60 (Class C). Noise reduction coefficient (NRC) to ASTM C 423, 0.60. |
Sound attenuation | To EN ISO 10848-2 and EN ISO 717-1, Dn,f,w = 34 dB. Ceiling attenuation class (CAC) to ASTM E 413-10, 35 dB. |
Sound reduction | To EN ISO 10140-2 and EN ISO 717-1, Rw = 21 dB. |
Face dimensions | 600 x 600 mm. 625 x 625 mm. 1200 x 600 mm. 1250 x 625 mm. 2500 x 300 mm. |
Thickness | 15 mm. |
Surface texture | Flocked. |
Edge profile | Square. |
ThermalConductivity | To EN 12667, λ = 0.060 W/mk. |
Recycled content (minimum) | 22.5–25.4%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Mineral fibre |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Guidance for specification option: 22.5–25.4%, consult manufacturer for more details and insert requirements. |
Literature

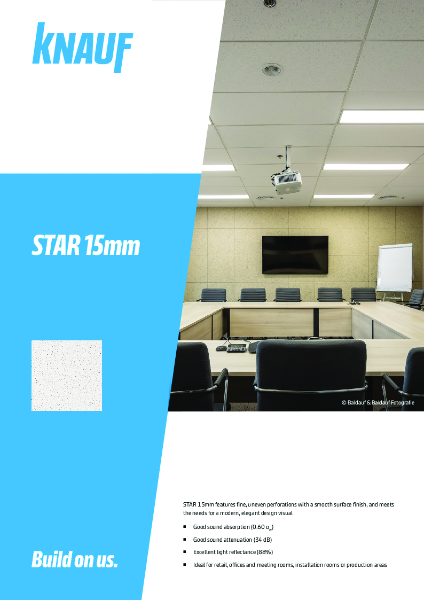

Star 15 mm - Data Sheet
DONN® DX15 exposed 15 mm grid, System C - Data Sheet
DONN® DX3-24 | SG exposed 24 mm grid, System C - Data Sheet
