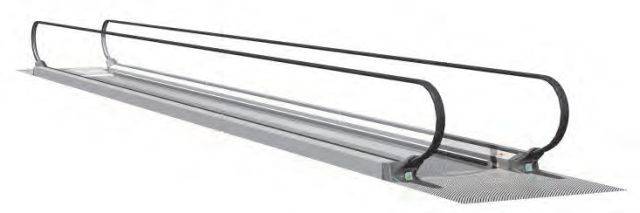

Stannah STH Horizontal Moving Walkway
Verified by manufacturer 2 months ago
Health & Safety Accreditation
Certificate type
CHAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Moving walkway for use in airports and train stations.
Application
For busy environments where the continuous movement of people is essential to the successful operation of the building. Suitable for transport system environments such as airports and train stations.
Description
The ST range of moving walkways moves people horizontally and vertically with ease. Available in a wide range of finishes and materials to enhance the walkway for any location.
The horizontal moving walkways feature glass panel balustrades with extra slim handrail guide frames.
Features and benefits:
- Smooth and quiet ride:
Designed on the principles of minimal friction, vibration and noise, offering not only a smooth and quiet ride, but also benefits from minimal wear and fatigue, high efficiency and offers durability and minimal maintenance requirements. Features include:
- Low vibration and low noise motor and gear drive.
- Acoustically treated one piece die-cast aluminium steps/pallets.
- Robust truss structure.
- Rigid and precision guide rails.
- Energy efficiency:
In addition to the standard efficient worm gear drive, numerous options are available to enhance the energy efficiency:
- High efficiency helical gear drive.
- Motor energy control.
- VVVF control.
- Auto start/stop control.
- Advance control system:
Moving walkways include an advanced ADV microprocessor control system designed specifically for escalator and moving walkway application. The ADV control system closely monitors and controls operation with the following control capability:
- Dot matrix LCD or LED display.
- MP3 voice announcement.
- Automatic start/stop control with passenger detection and time.
- Schedule operation.
- RS485 communication link for interface to BMS or remote.
All equipment fulfils the safety requirements of the EC Directive, carries the CE Mark and complies with BS EN 115. Stannah is quality assured to ISO 9001 accreditation.
General information
Color | Silver Guidance for specification option: Silver painted die-cast aluminium alloy, yellow synthetic resin demarcation line. Yellow Guidance for specification option: Demarcation line. Black Guidance for specification option: Synthetic rubber handrail. Clear Guidance for specification option: Clear tempered glass balustrades. Other Guidance for specification option: As per manufacturer and includes range of handrail colours option available. |
Material | Stainless steel Guidance for specification option: Die-cast aluminium alloy. Aluminium Glass |
Shape | Rectangle |
Length | Bespoke 134000 mm Guidance for specification option: Maximum length. |
Width | 800 mm 1000 mm 1200 mm 1400 mm |
Height | 900 mm |
Warranty description | One year |
Uniclass | |
CAWS | L30/460 Walkways L30/45 Ramps/ walkways L30/470 Ramps |
Product range |
Specification data - Moving walks
Standard | To BS EN 115-1. |
Angle of inclination | Horizontal. |
Speed | 0.5–0.75 m/s. |
Motor starting method | Gear drive. |
Landing floor plates | |
Material | Stainless steel.Guidance for specification option: Standard. Aluminium.Guidance for specification option: Optional. |
Finish | Stainless steel with black etched grooves.Guidance for specification option: Standard. Aluminium alloy with black grooves.Guidance for specification option: Optional. Stainless steel with customized etched pattern and logo.Guidance for specification option: Optional. |
Comb plates | |
Material | Aluminium alloy.Guidance for specification option: Natural colour aluminium alloy. |
Demarcation marking | None.Yellow powder coated.Guidance for specification option: Optional. |
Treadway pallets | |
Material | Die-cast aluminium alloy and synthetic resin. |
Finish | Silver painted and yellow synthetic resin demarcation line.Guidance for specification option: Standard. Black painted grooves.Guidance for specification option: Optional. |
Width (nominal) | 800 mm.1000 mm.1200 mm.1400 mm. |
Step demarcation markers | Yellow synthetic resin demarcation line. |
Balustrades | |
Material | 10 mm clear tempered safety glass. |
Height (minimum) | 900 mm. |
Handrail | |
Material | Vulcanized rubber with steel cord reinforcement.Guidance for specification option: Black, synthetic rubber, continuous vulcanized, with steel cord reinforcement and nylon cord gliding surface. |
Colour | Black.Other.Guidance for specification option: Includes 11 colours option available. Consult manufacturer for details. |
Lighting | Not required.Required. |
Skirting | |
Material | Hairline stainless steel.Guidance for specification option: Standard. Black anti-friction coating.Guidance for specification option: Optional. Clear anti-friction coating.Guidance for specification option: Optional. |
Decking | |
Material | Hairline finished stainless steel.Guidance for specification option: Standard. Mirror finished stainless steel.Guidance for specification option: Optional. Other.Guidance for specification option: Various combinations of stainless steel or brass with coloured, hairline or mirror finish optionally available, consult manufacturer for details. |
Width | 1360 mm.Guidance for specification option: Pallet Width: 1400 mm. 1560 mm.Guidance for specification option: Pallet Width: 1200 mm. 1760 mm.Guidance for specification option: Pallet Width: 1000 mm. 1960 mm.Guidance for specification option: Pallet Width: 800 mm. |
Cladding material | Guidance for specification option: Various options available e.g. stainless steel, glass and marble. Consult manufacturer for details. |
Rise | 134 000 mm. Guidance for specification option: Max. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | aluminium, metal and glass elements can be recycled |
