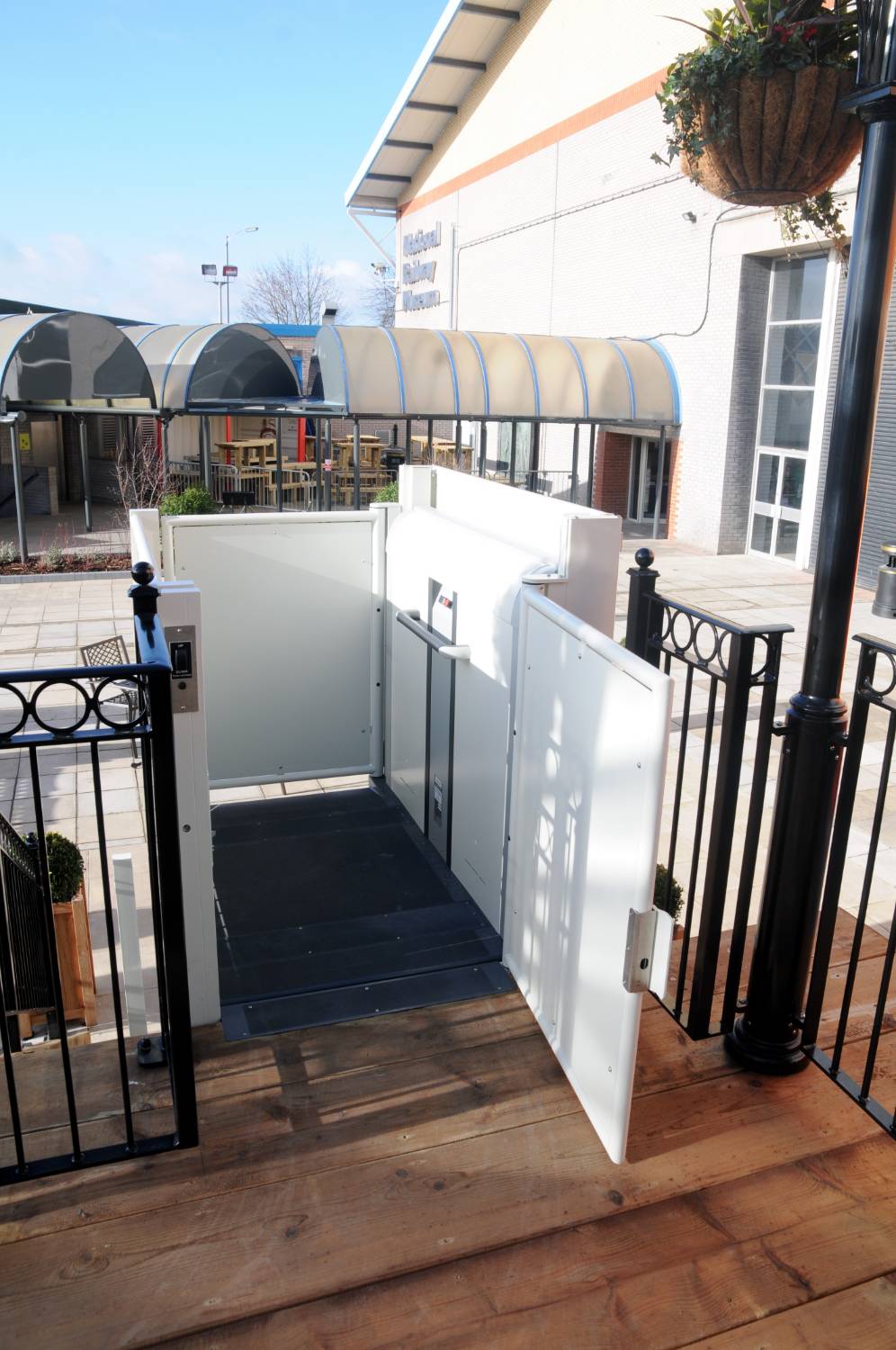

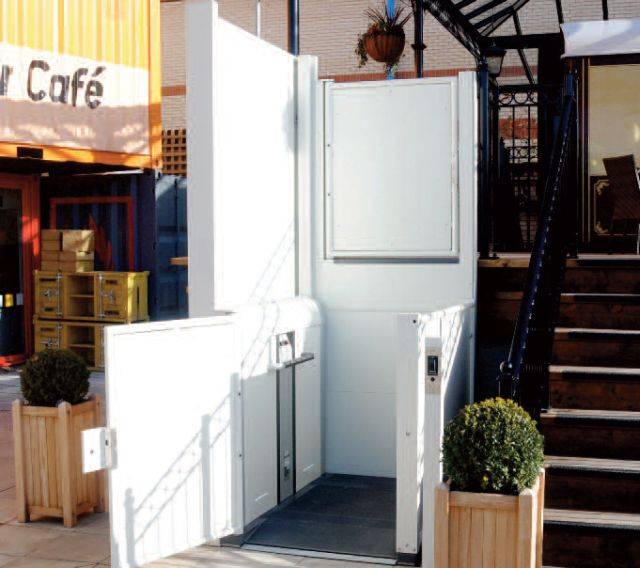

Stannah Lowriser 2 open platform lift 2m
Verified by manufacturer 1 month ago
800 x 1460 mm
800 x 1460 mm
Health & Safety Accreditation
Certificate type
CHAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
A low rise platform lift that provides simple access for up to two metres of travel in internal and external applications.
Application
Applicable for all types of public buildings needing to give access over a change of level to wheelchair users, buggies or prams. Suitable for internal and external uses such as:
- Bars.
- Colleges.
- Museums and galleries.
- Restaurants.
- Schools.
- Shops.
Description
A low rise platform lift, sometimes known as a step lift. Designed to give customers choice and flexibility.
Features and benefits:
- Adjacent or through entry.
- Anti-slip flooring.
- Emergency battery-backed in-car lowering.
- Emergency manual lowering.
- Emergency stop button.
- Full under surface protection.
- Fully enclosed vertical lifting platform.
- Integrated shallow ramp.
- Manual interlocked travelling gate.
- Manual interlocked upper landing gate.
- Overload protection.
- Rocker switch controls.
- CE marked and complies with BS 6440:2011.
- Five-year anti-corrosion warranty and one-year standard warranty.
The Lowriser 2 helps building owners/ operators to meet the requirements of the following:
- The Equality Act 2010.
- Building Regulations (E&W) Approved Document M and Technical Handbook (Scotland) 4.2.
- BS 8300:2018 (Part 1 and 2).
General information
Color | White Guidance for specification option: Grey white - BS22B15 Other Guidance for specification option: As per manufacturer and includes range of RAL colours option available. |
Finish | Other Painted |
Material | Aluminium Steel |
Shape | Rectangle |
Length | 1520 mm |
Width | 1240 mm 1340 mm 1390 mm 1460 mm |
Height | 2000 mm Guidance for specification option: Maximum threshold height. |
Warranty description | One year Guidance for specification option: Standard warranty. Five year Guidance for specification option: Anti-corrosion warranty. |
Uniclass | |
CAWS | X12/355 Step lifts X12/355 Step lifts X12/110 Vertical lifting platform systems |
Product range |
Specification data - Step lifts
Standard | To BS 6440:2011, BS 8300-1:2018 and BS 8300-2:2018. |
Rated load (minimum) | 300 kg.Guidance for specification option: Maximum. |
Drive type | Hydraulic. |
Platform configuration | Adjacent.Through. |
Enclosure | |
Frame material | Steel and aluminium. |
Frame finish | Powder-coated.Guidance for specification option: Standard (steel and aluminium). |
Frame colour | BS22B15 Grey White.Other.Guidance for specification option: A range colours is available on request. Consult manufacturer for details and insert requirements. Manufacturer guidancePowder-coated components only. |
Infill material | Steel.Guidance for specification option: Standard. Perspex. |
Infill finish | Powder-coated, to match frame.Powder-coated, other.Guidance for specification option: A range colours is available on request. Consult manufacturer for details and insert requirements. Not applicable.Guidance for specification option: Perspex infills only. |
Infill colour | BS22B15 Grey White.Other.Guidance for specification option: Other range of RAL colours available on request. Consult manufacturer for details. |
Gate leaves | |
Operation | Manual interlocked upper landing and travelling lower gate. |
Clear opening width (minimum) | 800 mm. |
Frame material | Steel and aluminium. |
Frame finish | Powder-coated.Guidance for specification option: BS2215 as standard. Brushed stainless steel.Chrome-plated.Brass-plated. |
Frame colour | BS22B15 Grey White.Guidance for specification option: Standard (for powder-coated). Other.Guidance for specification option: A range of RAL colours is available on request. Consult manufacturer for details. Not applicable.Guidance for specification option: Brushed stainless steel, chrome-plated or brass-plated. |
Infill material | Steel.Perspex. |
Infill finish | Powder-coated, to match frame.Guidance for specification option: Not applicable for bushed stainless steel, chrome-plated or brass-plated frames. Powder-coated, other.Guidance for specification option: A range colours is available on request. Consult manufacturer for details and insert requirements. Not applicable.Guidance for specification option: Perspex infills only. |
Infill colour | BS22B15 Grey White.Other.Guidance for specification option: Other range of RAL colours available on request. Consult manufacturer for details. |
Carrier floor | |
Dimensions | |
Width (minimum) | 800 mm. |
Depth (minimum) | 1460 mm. |
Material | Aluminium floor with painted finish complete with anti-slip coating.Guidance for specification option: Non Slip Hydragrip Grade 1. |
Colour | RAL 7015 Slate Grey. |
Electrical supply | 230 V a.c. 50 Hz. 24v in-car controlsGuidance for specification option: Emergency battery backed in-car lowering. |
Control device type | Rocker switch.Guidance for specification option: Standard. Constant pressure. Illuminated tactile button controls.Guidance for specification option: Constant pressure. |
Control features | Emergency battery back up in-car lowering, manual lowering and stop button. |
Accessories | None.Alarm.Arrival gongs.Key switch to isolate the lift and prevent unauthorised use.Powered lower gate.Powered upper gate.Voice annunciation and platform level indication.Special colours and finishes.Guidance for specification option: Consult manufacturer for details and insert requirements in relevant sections. |
Speed | 0.08 m/s. |
Footprint | 1240 x 1520 mm. Manufacturer guidanceFootprint size. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Most metal components & copper wiring cores |
