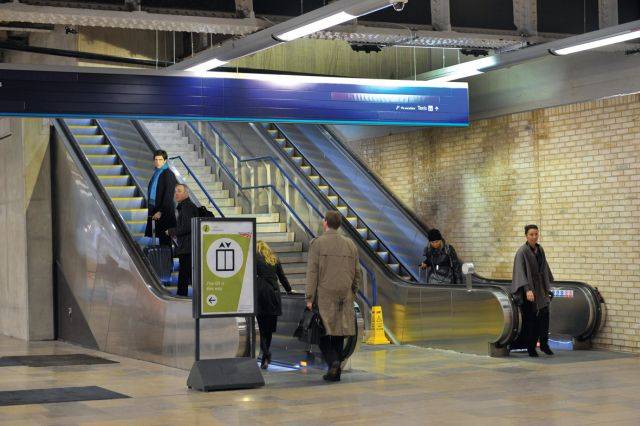

Stannah A2T Public Transport Escalator
Verified by manufacturer 27 days ago
Health & Safety Accreditation
Certificate type
CHAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Escalator which is suited to demanding environments such as public transport systems.
Application
For demanding environments such as public transport systems.
Description
The A2 family of escalators offers a wide range of tread sizes, inclines, widths and lengths. Every unit is quality engineered and finished to the highest specifications. The products all carry a wealth of safety features as standard. Passenger safety is a top priority.
The A2T range of escalators offers options for tread widths, unit widths and lengths. Each unit is robust and finished with stainless steel panel balustrades.
Features and benefits:
- Smooth and quiet ride:
Designed on the principles of minimal friction, vibration and noise, offering not only a smooth and quiet ride, but also benefits from minimal wear and fatigue, high efficiency and offers durability and minimal maintenance requirements. Features include:
- Low vibration and low noise motor and gear drive.
- Acoustically treated one piece die-cast aluminium steps/pallets.
- Robust truss structure.
- Rigid and precision guide rails.
- Energy efficiency:
In addition to the standard efficient worm gear drive, numerous options are available to enhance the energy efficiency:
- High efficiency helical gear drive.
- Motor energy control.
- VVVF control.
- Auto start/stop control.
- Advance control system:
Escalators include an advanced ADV microprocessor control system designed specifically for escalator and moving walkway application. The ADV control system closely monitors and controls operation with the following control capability:
- Dot matrix LCD or LED display.
- MP3 voice announcement.
- Automatic start/stop control with passenger detection and time.
- Schedule operation.
- RS485 communication link for interface to BMS or remote.
All equipment fulfils the safety requirements of the EC Directive, carries the CE Mark and complies with BS EN 115. Stannah is quality assured to ISO 9001 accreditation.
General information
Color | Silver Guidance for specification option: Silver painted die-cast aluminium alloy, yellow synthetic resin demarcation line. Yellow Guidance for specification option: Demarcation line. Black Guidance for specification option: Synthetic rubber for handrail. Other Guidance for specification option: As per manufacturer and includes range of handrail colours option available. |
Finish | Painted |
Material | Steel Guidance for specification option: Stainless steel. Aluminium Guidance for specification option: Die-cast aluminium alloy. |
Shape | Rectangle |
Length | Bespoke |
Width | 600 mm 800 mm 1000 mm |
Height | 3000 mm 9000 mm |
Warranty description | One year |
Uniclass | |
CAWS | L30/20 Stairs L30/270 Stairs |
Product range |
Specification data - Escalators
Standard | To BS EN 115-1. |
Angle of inclination | 30°. |
Speed | 0.5–0.75 m/s. |
Motor starting method | Gear drive. |
Landing floor plates | |
Material | Stainless steel.Guidance for specification option: Standard. Aluminium alloy.Guidance for specification option: Optional. |
Finish | Stainless steel with black etched grooves.Guidance for specification option: Standard. Aluminium alloy with black grooves.Guidance for specification option: Optional. |
Comb plates | |
Material | Aluminium alloy.Guidance for specification option: Natural colour aluminium alloy. |
Demarcation marking | None.Yellow powder coated.Guidance for specification option: Optional. |
Step treads | |
Material | Die-cast aluminium alloy. |
Finish | Silver painted, yellow synthetic resin demarcation line.Guidance for specification option: Standard. Black painted grooves.Guidance for specification option: Optional. |
Width (nominal) | 600 mm.800 mm.1000 mm. |
Height (maximum) | 200 mm. |
Depth (minimum) | 400 mm. |
Step demarcation markers | |
Location | Yellow synthetic resin demarcation line. |
Level steps | Three. |
Balustrades | |
Material | Stainless steel panel. |
Height (minimum) | 900 mm. |
Handrail | |
Material | Vulcanized rubber with steel cord reinforcement.Guidance for specification option: Black, synthetic rubber, continuous vulcanized, with steel cord reinforcement and nylon cord gliding surface. |
Colour | Black.Other.Guidance for specification option: Includes 11 colours option available. Consult manufacturer for details. |
Lighting | Not required.Required.Guidance for specification option: Under handrail lighting. Under handrail lighting can be fitted to the A2T Public Transport Escalators only. |
Skirting | |
Material | Hairline stainless steel.Guidance for specification option: Standard. Black anti-friction coating.Guidance for specification option: Optional. Clear anti-friction coating.Guidance for specification option: Optional. |
Lighting | Not required.Required.Guidance for specification option: On skirt and comb. To provide better illumination, skirt and comb lighting can be fitted to all A2 escalators. |
Decking | |
Material | Hairline finished stainless steel.Guidance for specification option: Standard. Mirror finished stainless steel.Guidance for specification option: Optional. Other.Guidance for specification option: Various combinations of stainless steel or brass with coloured, hairline or mirror finish optionally available, consult manufacturer for details. |
Width | 1560 mm.Guidance for specification option: Step Width: 1000 mm 1360 mm.Guidance for specification option: Step Width: 800 mm. 1160 mm.Guidance for specification option: Step Width: 600 mm. |
Cladding material | Guidance for specification option: Various options available e.g. stainless steel, glass and marble. Consult manufacturer for details. |
Rise | Guidance for specification option: 3000—9000 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Glass, steel and aluminium can be recycled. |
Third party certifications
Health & Safety Accreditation

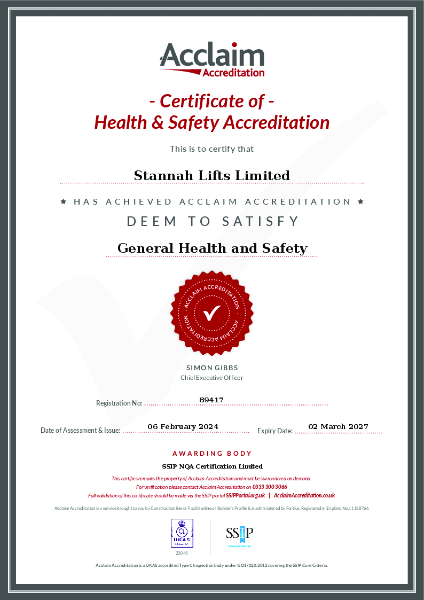

Certificate of Health & Safety Accreditation
CHAS
CHAS – Contractors Health and Safety Assessment Scheme SSIP
ISO 45001 Health and Safety Management
ISO 45001 Health and Safety Management
ISO 9001 Quality Management
ISO 9001 Quality Management
Literature
Stannah Escalators & Moving Walkways brochure
Case studies

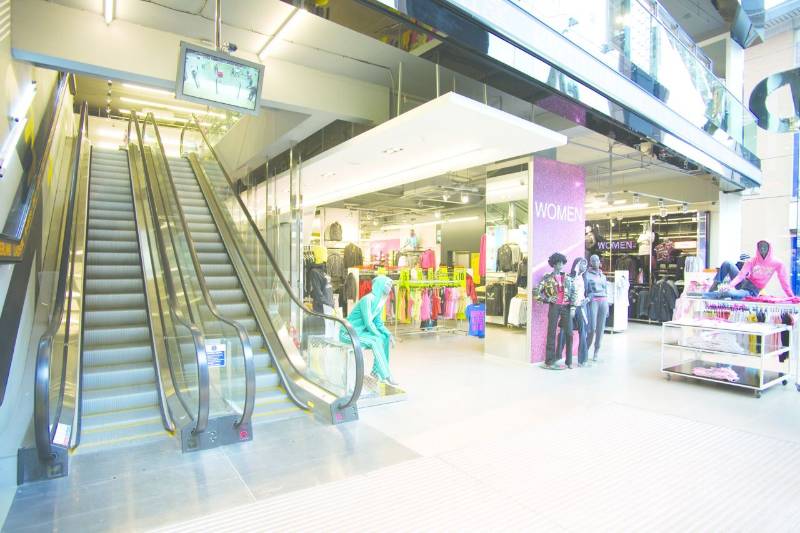

JD Sports, Liverpool One

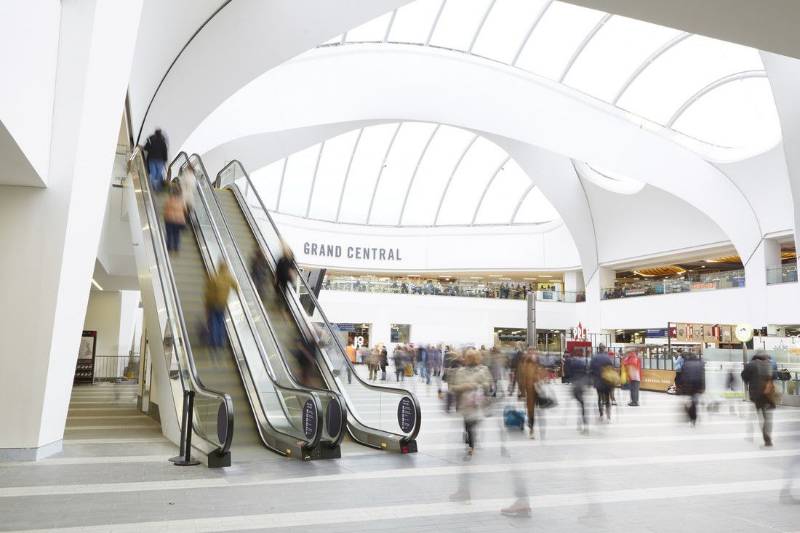

A £multi-million revamp at Birmingham New Street
