Standard Signage Column
Verified by manufacturer 28 days ago
BX 2410-CI
Health & Safety Accreditation
Certificate type
BBA Agrément Certificate
Certificate type
Health & Safety Accreditation
Certificate type
CQMS
Certificate type
smas WORKSAFE
Certificate type
BBA Agrément Certificate
Certificate type

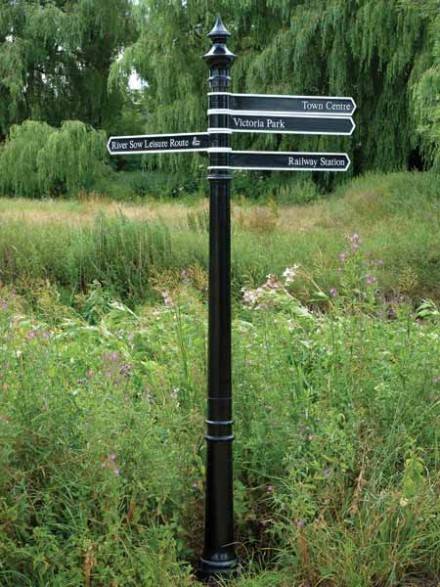

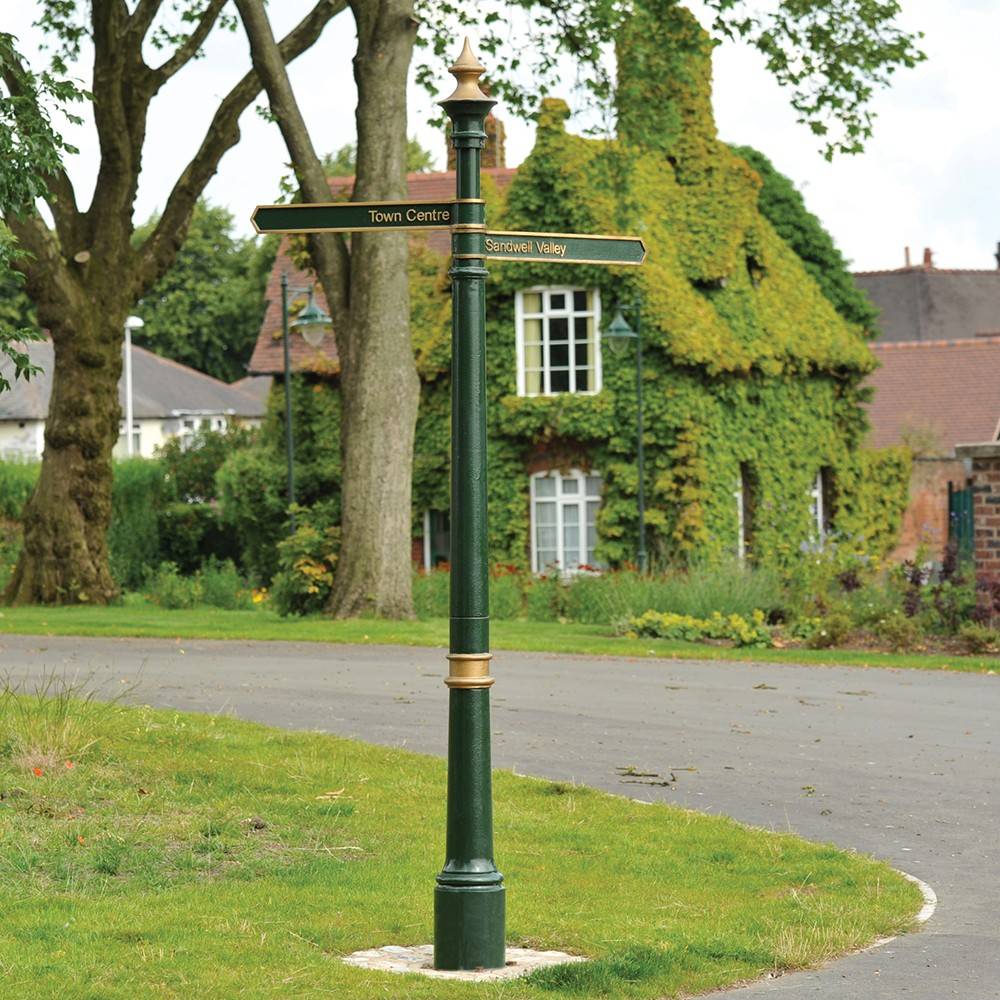

Directional signage column. Can also be used as a hanging basket column.
Application
External signage column for wayfinding and public navigation schemes. Broxap can offer flexible, modular systems which help customers to produce creative and bespoke signs. Supplying standard components such as signage columns, finger arms, display boards, and finials supports the creation of interchangeable combinations.
Custom colours, logos, crests and symbols can be integrated into designs. Our in-house drawing office can generate new concepts, using state of the art CAD technology and produce designs to client specification.
Description
Street signage column with a cast iron base and steel shaft designed to take cast aluminium finger arms and a cast iron or polyurethane finial.
Additional Options:
- Columns available with gold or white highlighting
- Also available with a polyurethane base
- Hanging basket: a steel bracket is added to hold a steel basket suspended on chains to create a hanging feature (2 or 4 arm scrolls brackets are available) (baskets not supplied).
General information
Color | Black Blue Green Grey Red |
Finish | Coated Galvanized Powder-coated Primed Painted |
Material | Steel Cast iron |
Shape | Other |
Length | Bespoke |
Width | 227 mm |
Height | 2200 mm |
Warranty description | One year |
Uniclass | |
CAWS | N91/580 External sign |
SKU Code | BX 2410 |
Specification data - Free-standing external architectural signage systems
Classification data | |
Sign type | Broxap's 'Standard' Column |
Base | Polyurethane base. Manufacturer's Standard 255 mm square baseplate. |
Accessories | Complete with Gold Highlighting. Complete with White Highlighting. |
Size | 2235 x 76 mm (diameter). |
Finish: | Bare Casting. Primer only. Coated. |
Colour: | Coated with Waterside Paint Specification. Coated Black RAL 9005. Coated Traffic Red RAL 3020. Coated Dark Blue RAL 5013. Coated Mid Blue RAL 5015. Coated White RAL 9016. Coated White Aluminium RAL 9006. Coated Anthracite Grey RAL 7016. Coated Traffic Yellow RAL 1023. Coated Holly Green BS4800 14 C 39. Coated Goose Grey BS4800 00 A 05. Coated Moss Green RAL 6005. Coated Dark Grey BS4800 18 B 25. Coated Duchess Blue BS4800 20 C 40. Coated to a none standard BS/RAL colour. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel Cast iron |
Expected Life | Lifetime |
Product certifications
Health & Safety Accreditation
Alcumus Safe Contractor
BBA Agrément Certificate
CE Marking Certification
Health & Safety Accreditation
Insurance
CQMS
CQMS Safety Scheme
smas WORKSAFE
SMAS Worksafe
BBA Agrément Certificate
UKCA Marking Certification
Literature

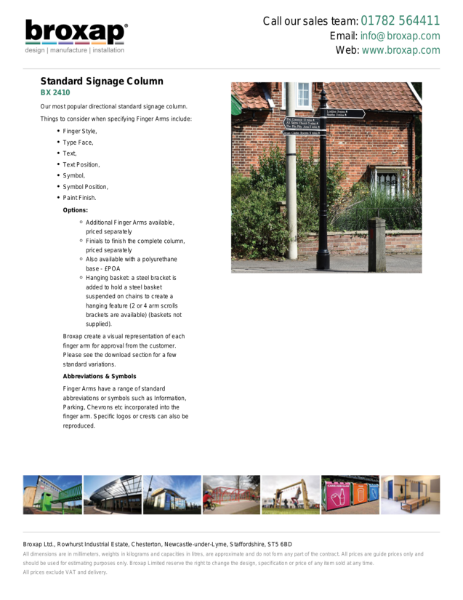

Standard Column Specification Sheet
Case studies
Conwy County, North Wales
Worcester Business Improvement District
