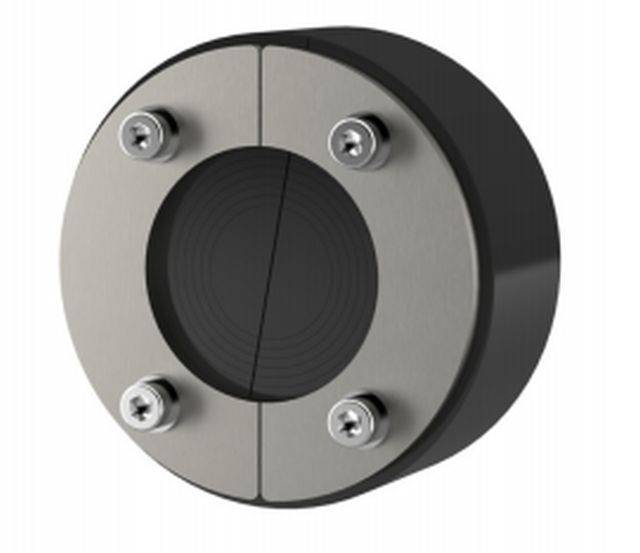

Standard Press Seal - HRD100 SG 1x24-52 b40 A2/EPDM55

Application

  • For sealing cables in core drills or wall sleeves.
  • Waterproof concrete stress class 1 and class 2 applications.

Description

Standard press seal with segmented ring technology for sealing cables in core drills or wall sleeves. Split design for sealing new cables to be installed or cables that have already been laid.


Features and benefits:

  • Segmented ring technology for individual adjustment to cable diameters on site.
  • Empty openings are blind sealed ex works.
  • Split seal for retrofit installation.
  • DIN 18533 W1.1-E, DIN 18533 W1.2-E, DIN 18533 W2.1-E and DIN 18533 W2.2-E compliant.

General information

Material

Stainless steel, V2A (EN 1.4307/ AISI 304L) - Standard, Stainless steel, V4A (EN 1.4401/ AISI 316L), Rubber: Ethylene propylene diene monomer (EPDM) seal.


-

Color

Black

Size

Sealing width: 40 mm, Press plates: 5 mm

-

Uniclass 2015

Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary

CAWS

P12/43 Pipe collar

P12/370 Pipe collar

Specification data - Concealed intumescent pipe collars Enhanced data

Position

Fitted in hole or opening.

Sizes

Sealing width: 40 mm, Press plates: 5 mm.

Product Reference

HRD100 SG 1x24-52 b40 A2/EPDM55

Wall sleeve/ core drilled hole inner diameter

100 mm.

Cable outer diameter suitability

24–52 mm.

Number of cables

One.

Tightness

Gastight and watertight.

Material

Stainless steel, V2A (EN 1.4307/ AISI 304L) - Standard, Stainless steel, V4A (EN 1.4401/ AISI 316L), Rubber: Ethylene propylene diene monomer (EPDM) seal.


-

Rubber seal

Ethylene propylene diene monomer (EPDM).
