Standard Modular Step System

Name: Standard Modular Step System
Brand: Rapid Ramp Limited
SKU: dB5SpiKs5JQ8vXDscP1Gde

Verified by manufacturer 6 months ago

Rapid Ramp Limited

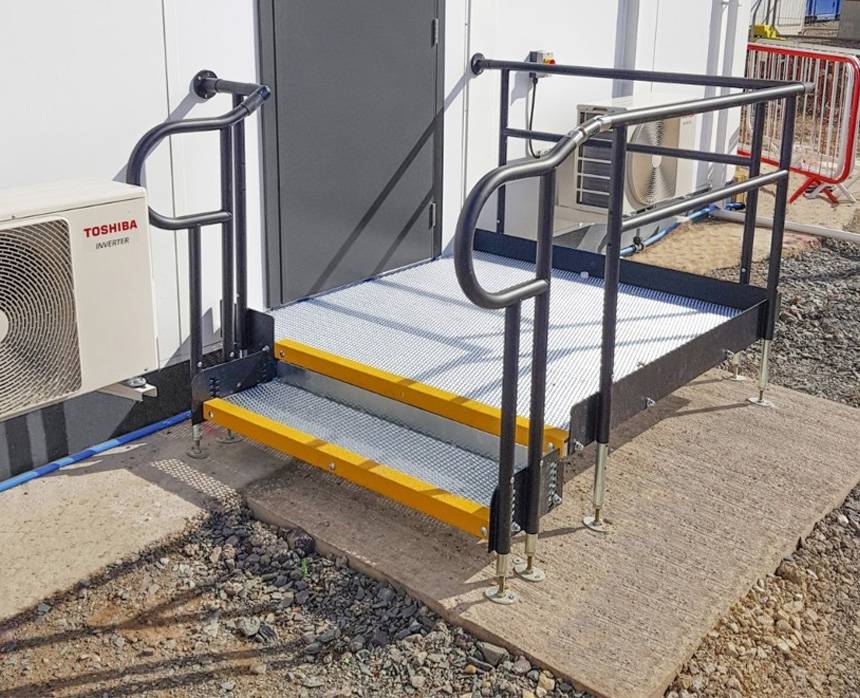

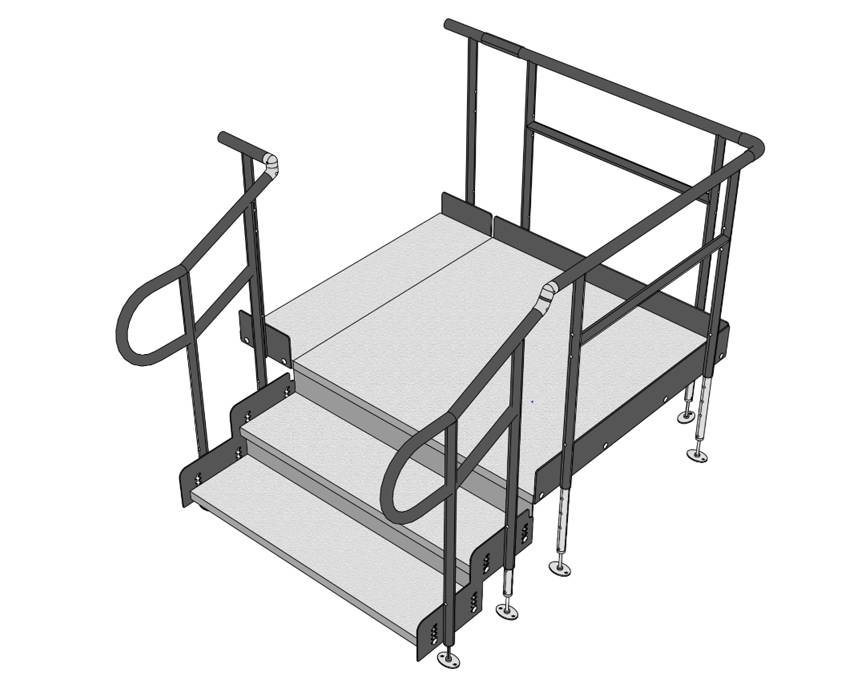

A fully adjustable modular step system, constructed from galvanised steel components that are bolted together.

Jump to:

+44 (0)1424 714646 Website

Application

Suitable for residential applications.
The system can also be suitable for schools and public buildings with additional safety features such as infill handrails.

Description

The Standard Modular Step System is crafted from galvanised steel components securely bolted together. It incorporates all necessary safety measures to prevent falls, collisions, and injuries in residential settings.

This system complies with step regulations for residential structures, as outlined in Approved Documents M and K. Specifically, residential steps must maintain a gradient no steeper than 1:12 (equivalent to 4.7 degrees).

Key Features and Advantages:

Swift design and installation.
Available in four different widths.
Constructed with sturdy steel, featuring a galvanised walkway and powder-coated handrails that remain comfortably warm to the touch.
Proudly manufactured in the UK, with nationwide service coverage encompassing both the UK and Ireland.
Components are modular and reusable, allowing for flexible design.
Metal steps are fire-resistant, providing enhanced fire safety compared to wooden steps.
Backed by a three-year guarantee and designed for a lifespan exceeding 25 years.
Suitable for both short-term and long-term applications.
Fully adjustable, facilitating easy adaptation, modification, and reuse.
Custom sizes are available to meet specific requirements.
Modular steps can be effortlessly removed, leaving the area in its original condition.

General information

Color	Black Guidance for specification option: Standard. Other Guidance for specification option: Also available powder-coated in any RAL colour.
Finish	Galvanized Powder-coated
Material	Steel
Width	900 mm 1000 mm 1200 mm 1500 mm Bespoke
Height	- Manufacturer guidance The Rapid Ramp system can be used up to 3 m high.
Warranty description	Three year

Uniclass	Ss_35_10_85_35 Heavy steel stair systemsPrimary
CAWS	L30/45 Ramps/ walkways L30/470 Ramps

Specification data - Heavy steel stair systems

Framing members	Carbon steel angle sections, carbon steel beams, columns, channels and tees, carbon steel hot-finished hollow sections.
Flooring and treads	Mesh platform. Guidance for specification option: As standard. Minimum width: 900 mm. GRP platform. Guidance for specification option: Optional extra. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard.
Connections	-
Connection fasteners	Preloaded bolt assemblies and carbon steel hexagon headed nuts and bolts.

Handrails	Standard handrail. Guidance for specification option: The handrail is coated with thermosetting powder to provide a non-conductive, non-slip and scratch-resistant surface. Infill handrail. Guidance for specification option: The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings. 1100 mm high vertical infill handrail. Lower intermediate handrail. Guidance for specification option: For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system. Manufacturer guidance With trombone ends as standard.
Integral accessories	Telescopic legs. Guidance for specification option: Legs can be adjusted to accommodate different threshold heights.
Accessories	None. Gates unit. Guidance for specification option: A gate unit can be attached to the side of a platform; 1200 mm or wider. Step unit. Access hatch. Guidance for specification option: A hatch opens allowing a person access to the underground services. Underside mesh hoarding. Guidance for specification option: This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings. Specification includes: • Mesh size 200 x 50 mm. • 33.7 mm OD Single mesh clip. Fine underside mesh hoarding. Guidance for specification option: This mesh has 20 x 20 mm small square holes, designed to stop litter from blowing underneath the ramp. Solid underside hoarding. Guidance for specification option: This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings. Specification includes: • Pre-painted sheets of aluminium sheets with a solid polyethene core. • Black as standard. Safetread rubber surface. Guidance for specification option: A soft, slip-resistant surface that reduces the impact of falls. The product is made from the same materials used in soft play areas and is suitable for nurseries, schools, and public facilities. Available in a range of colours; consult manufacturer and insert requirements. Platform extension, 15 degree. Platform extension, 30 degree. Platform extension, 45 degree. Step nosing strips, yellow. Level change strips, yellow. Show more
Colour/ Finish	Black, powder-coated. Guidance for specification option: As standard. RAL, powder-coated. Guidance for specification option: Insert requirements.
Width	900 mm. 1000 mm. 1200 mm. 1500 mm. Bespoke. Guidance for specification option: Insert requirements. Manufacturer guidance Any of the widths can be secured together to create almost any width.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	156.73 kg CO₂ eq/m² Self-declared Guidance for specification option: When considering the carbon embodiment within the material; it is important to understand the mass of the material. For instance, a Rapid Ramp is hollow underneath the platform, whereas, a concrete ramp is solid. The amount of carbon embodiment needs to be considered based on the mass.
Recyclability	96%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	21 %
