Standard Catchpit Frame
Verified by manufacturer 16 days ago

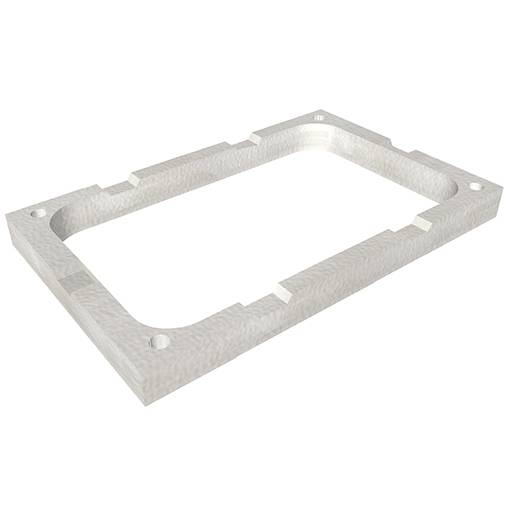

Precast concrete catchpit frame.
Application
Suitable for catchpits.
Description
Precast concrete catch pit frame. Complete with tapered projections and sockets for continual connection.
Features and benefits:
- Two layers of 6 mm bar reinforcement.
- Network Rail approved.
General information
Color | Other Guidance for specification option: Natural. |
Height | 115 mm |
Length | 1270 mm |
Width | 735 mm |
Material | Concrete |
Shape | Rectangle |
Size | 1270 x 735 x 115 mm |
Uniclass | |
CAWS | P30/150 Access and inspection chamber systems Q37/830 Inspection chamber installation |
Specification data - Concrete inspection chamber sections
Classification data | |
Dimensions | |
Clear internal dimension | 1270 x 735 x 115mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 1 |
 Revit | Revit 2016 | 3 |
