Stair Tread SP

Verified by manufacturer 3 months ago

Elefant Gratings T/A PcP Gratings Ltd Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Environmental Product Declaration

    Certificate type

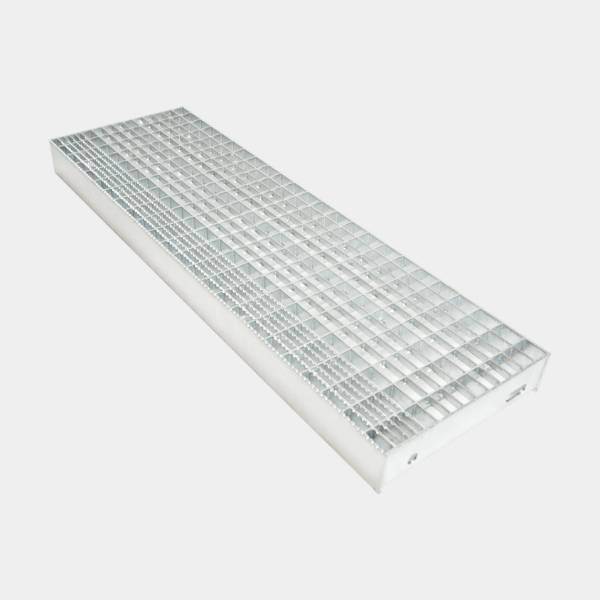

Flat bar grating stair tread.

Jump to:
BOS
+44 (0)1902 797110 Website

Application

  • Internal & external maintenance stair treads with contrasting nosing

Description

Based on the standard Type SP Grating comprising of flat bars running perpendicular to each other at 90°. Can be manufactured in any size and mesh configuration to suit the application. Standard stock treads available.

General information

Finish

Unfinished

Material

Steel

Guidance for specification option:

240 YP.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_30_90_10 Carbon steel stair treadsPrimary

CAWS

L30/20 Stairs

L30/250 Metal stairs

L30/270 Stairs

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L35/150 Stair systems

Specification data - Carbon steel stair treads

Finish

Hot dip galvanized (to EN 1461).

Length

500 mm.

600 mm.

700 mm.

800 mm.

900 mm.

Show more

Depth

150 mm.

250 mm.

300 mm.

Manufacturer guidance

Options are dependent on length of tread, consult manufacturer's literature for more information.

Loading capability

Designed in accordance with BS 4592-0: 2006.

Pattern

2 x 30 mm mesh body with 9 x 30 mm mesh visual non-slip nosing.

Edges

50 x 3 mm end bars, 60 x 3 mm side bars.

Guidance for specification option:

For 500–1000 mm lengths.

60 x 3 mm end bars, 60 x 3 mm side bars.

Guidance for specification option:

For 1000 mm length.

60 x 3 mm end bars, 75 x 3 mm side bars.

Guidance for specification option:

For 1200 mm length.

70 x 3 mm side bars, 75 x 3 mm side bars.

Guidance for specification option:

For 1500 mm length.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.41 kg CO₂ eq/kg

Manufacturer guidance

Carbon Steel Hot Dip Galvanised 2.64kg CO2e/kg

Stainless Steel 3.66kg CO2e/kg

Recyclability

100%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Environmental Product Declaration

Environmental Product Declaration

Verified EPD Certificate - flat bar gratings
