Stair Tread O5 Achil V - Perforated Metal Plank

Name: Stair Tread O5 Achil V - Perforated Metal Plank
Brand: Elefant Gratings T/A PcP Gratings Ltd
SKU: 8VRAYBSqoegHt3Tr3jKxpY

Verified by manufacturer 2 months ago

Elefant Gratings T/A PcP Gratings Ltd

Third party certifications:

UKAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Environmental Product Declaration
Certificate type

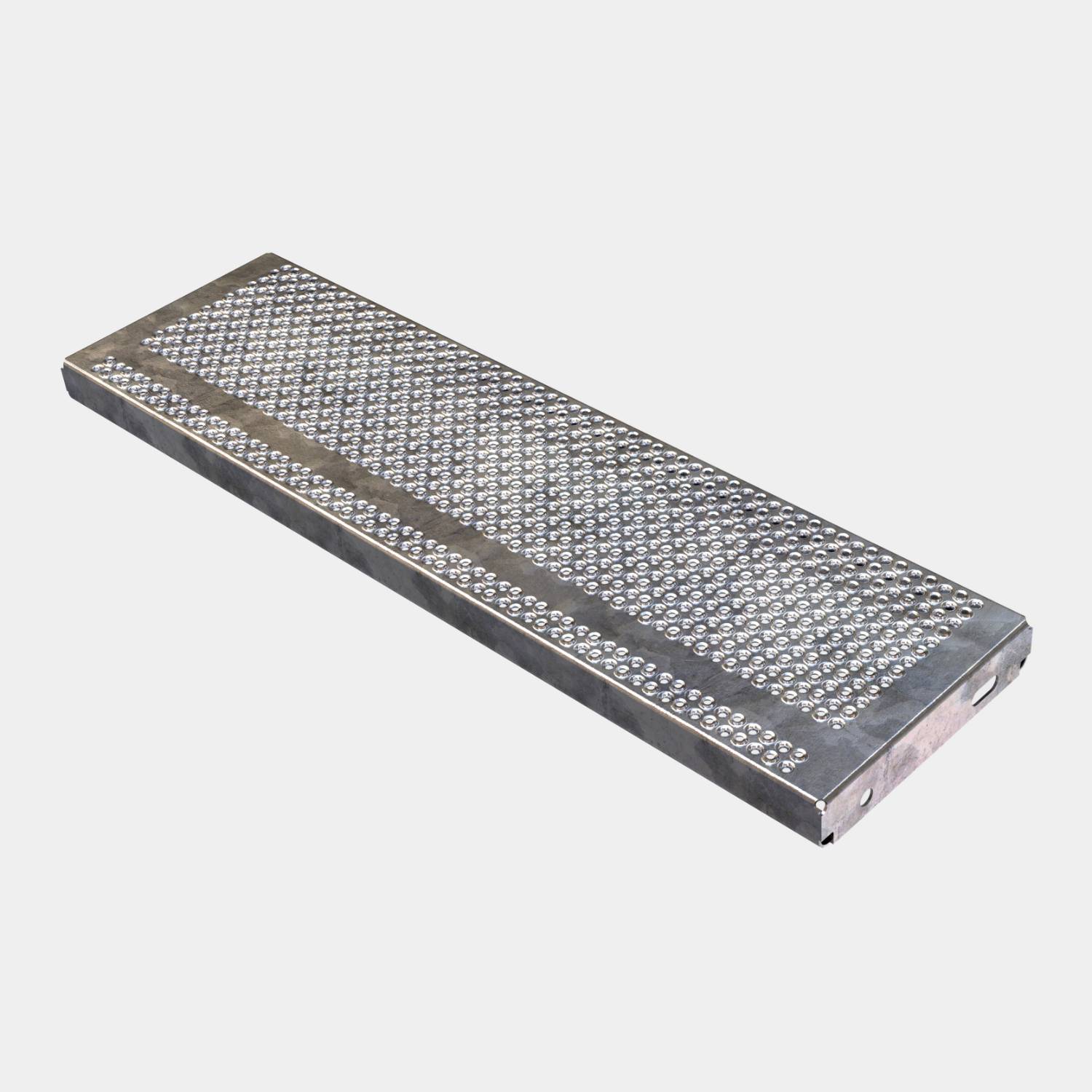

Perforated pattern stair tread.

Jump to:

BOS

+44 (0)1902 797110 Website

Application

Internal & external anti slip stair treads for maintenance loadings

Description

PcP Type 05V Achil treads are manufactured in pattern type 05 with a visible sight strip on nosing for typical light duty access and occasional maintenance/ service access. These treads are designed for applications where smaller holes are required and consideration should be made to safety stiletto heels and slip resistance. Treads are available in steel with galvanized finish as standard and all popular sizes are generally available from stock.

General information

Finish	Unfinished
Material	Steel Guidance for specification option: 240 YP. Manufacturer guidance Carbon Steel
Shape	Rectangle

Uniclass	Pr_25_30_90_10 Carbon steel stair treadsPrimary
CAWS	L30/20 Stairs L30/250 Metal stairs L30/270 Stairs L30/30 Proprietary stairs L30/310 Proprietary stairs L35/150 Stair systems

Specification data - Carbon steel stair treads

Finish	Hot dip galvanized (to EN 1461). Guidance for specification option: Standard. Mill. Guidance for specification option: For 800 x 250 x 45 mm only.
Size	-
Thickness	2 mm.
Slip resistance value – water wet (minimum)	R13 = slope >35° (to DIN 51130).

Length	800 mm. Guidance for specification option: Height: 45 mm. 900 mm. Guidance for specification option: Height: 45 mm. 1000 mm. Guidance for specification option: Height: 45 mm. 1200 mm. Guidance for specification option: Height: 58 mm. 1500 mm. Guidance for specification option: Height: 58 mm.
Depth	250 mm. 275 mm. 300 mm. Manufacturer guidance Options are dependent on length and material of tread, consult manufacturer's literature for more information.
Loading capability	3 kN/ 100 x 100 mm.
Pattern	5 mm diameter upward grip holes, 5 mm diameter downward drainage holes. Guidance for specification option: 8–9% free area. 15–35 mm ball proof (to BS 4592). 25 x 25 mm C-C grid.
Pendulum test value	36+ Low Slip Potential (to BS 7976). Guidance for specification option: Dry: 96 multi-directional; wet: 79 multi-directional.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Denmark
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2.33 kg CO₂ eq/kg Manufacturer guidance Carbon Steel Hot Dip Galvanised 2.6kg CO2e/kg
Recyclability	100%
