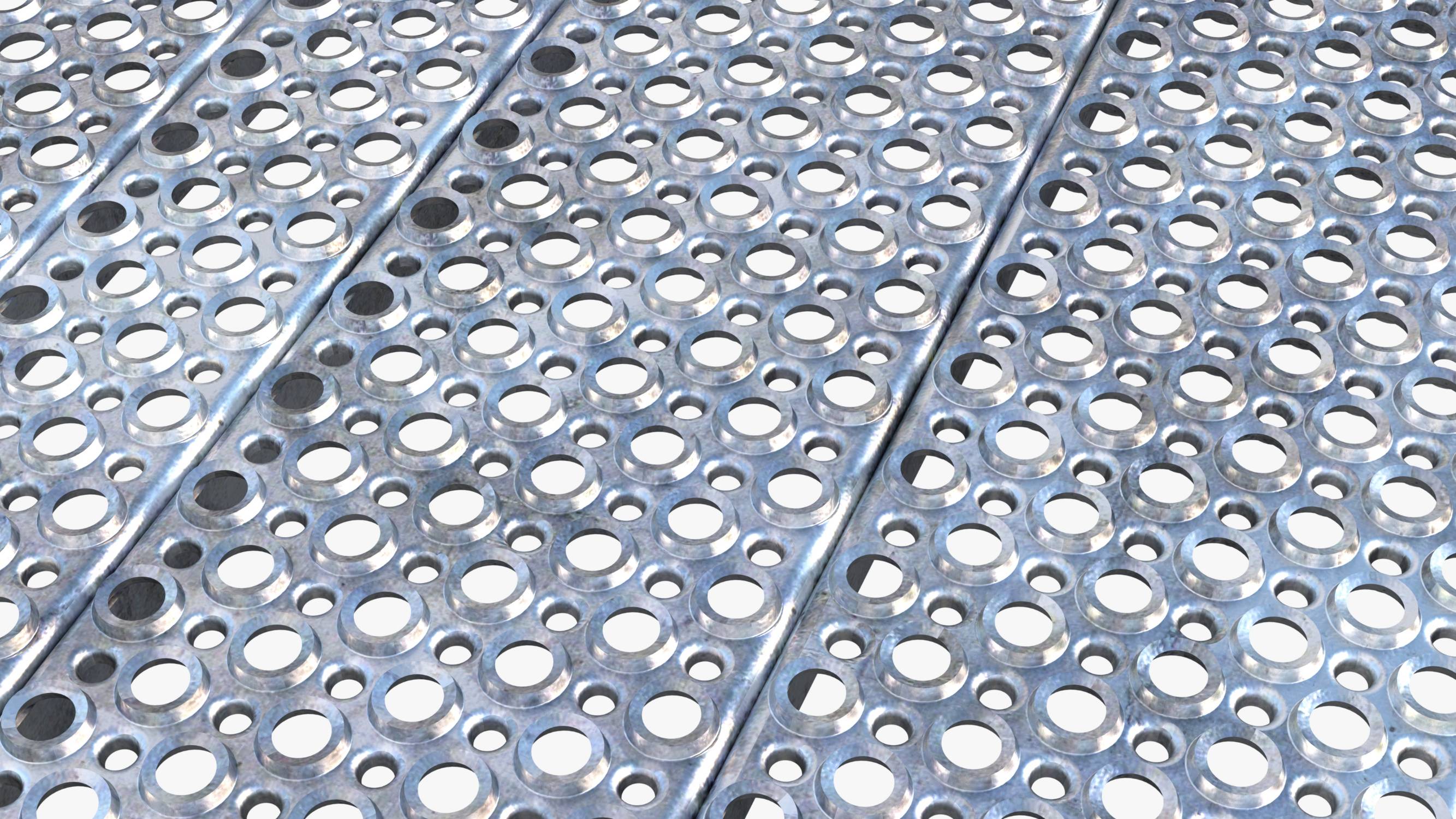

Stair Tread 03 - Perforated Metal Plank

Verified by manufacturer 3 months ago

Elefant Gratings T/A PcP Gratings Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Environmental Product Declaration

    Certificate type

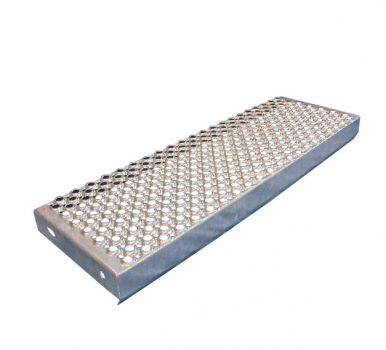

Perforated pattern stair tread.

Jump to:
BOS
+44 (0)1902 797110 Website

Application

  • Internal & external anti slip stair treads


Description

Perforated stair tread manufactured from 2 mm thick galvanized steel. The O3 stair tread provides excellent non slip properties and is best suited to more industrial applications owing to the increased hole sizes. Loading is designed in accordance with BS 4592 Part 0.

General information

Finish

Unfinished

Material

Carbon steel

Shape

Rectangle

Uniclass

Pr_25_30_90_10 Carbon steel stair treadsPrimary

CAWS

L30/20 Stairs

L30/250 Metal stairs

L30/270 Stairs

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L35/150 Stair systems

Specification data - Carbon steel stair treads

Size

-

Thickness

2 mm.

Slip resistance value – water wet (minimum)

R13 = slope >35° (to DIN 51130).

Length

400 mm.

Guidance for specification option:

Height: 45 mm.

500 mm.

Guidance for specification option:

Height: 45 mm.

600 mm.

Guidance for specification option:

Height: 45 mm.

700 mm.

Guidance for specification option:

Height: 45 mm.

800 mm.

Guidance for specification option:

Height: 45 mm.

Show more

Depth

165 mm.

215 mm.

265 mm.

315 mm.

Manufacturer guidance

Options are dependent on length and material of tread, consult manufacturer's literature for more information.

Pattern

14 mm diameter upward grip holes, 8.5 mm diameter downward drainage holes.

Guidance for specification option:

28–32% free area. 15–35 mm ball proof (to BS 4592). 36 x 36 mm C-C grid.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Denmark

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.33 kg CO₂ eq/kg

Manufacturer guidance

Carbon Steel Hot Dip Galvanised 2.6kg CO2e/kg

Aluminium 9.04kg CO2e/kg

Recyclability

100

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

UKAS

UKAS

Type O3 slip test - PTV

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Environmental Product Declaration

Environmental Product Declaration

Verified EPD Certificate - punched hole gratings

Literature

Technical Catalogue

Technical Catalogue

OPTIMO Tread O3

OPTIMO Tread O3
