Stainless Steel Zip Wire with Take Off Ramp - Cable Slide with Starting Platform

Name: Stainless Steel Zip Wire with Take Off Ramp - Cable Slide with Starting Platform
Brand: Redlynch Leisure Installations Ltd
SKU: g32zNNkR8fRgCfyK7fbJeg

Verified by manufacturer 1 month ago

20 m slide (6.5220-E)

Redlynch Leisure Installations Ltd

Third party certifications:

CHAS
Certificate type
Constructionline Gold
Certificate type
Rospa Safety Charity
Certificate type
TUV - Safety and Quality Report
Certificate type

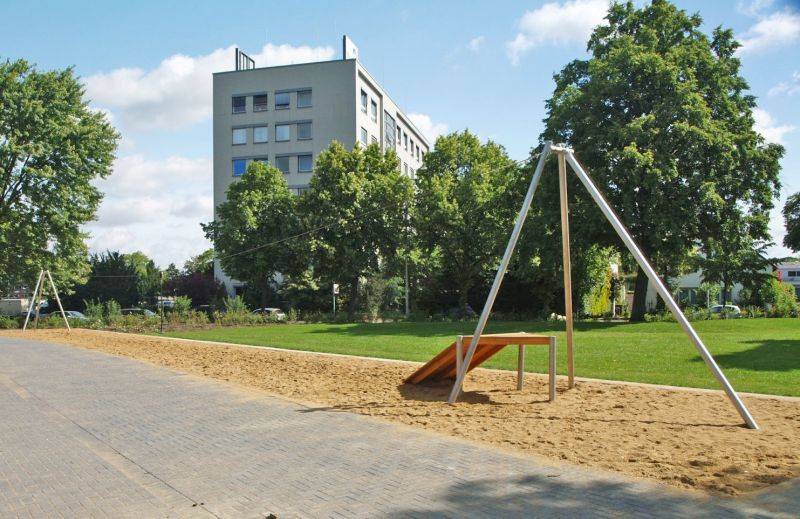

Cable slide with starting platform, in a range of slide lengths up to 50 m.

Jump to:

+44 (0)1249 444537 Website

Application

Public children's playgrounds.

Description

Cable slide with starting platform, in a range of slide lengths up to 50 m.

Features and benefits:

Includes two pyramid racks with a height difference of determined by the slide length. These racks are supported by three stainless steel posts.
Also includes one galvanized steel cable with a diameter of 10 mm.
Slide lengths listed are stock sizes; cables can be cut to suit.
A straightening device made of stainless steel is provided.
The Spiel-Bau trolley is equipped with low noise and three ball bearing rollers.
Pendular disc swing made of rubber, with a chain featuring small chain links covered by a tube.

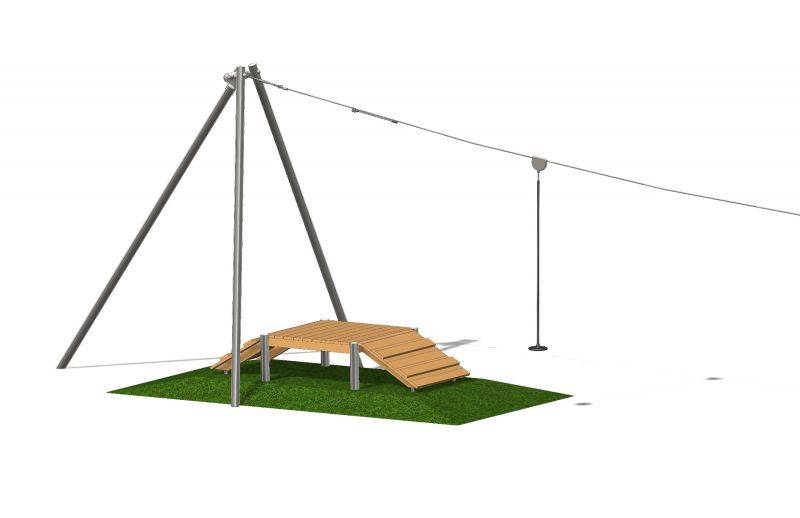

A square platform is located beneath the start rack on the hill.
Two ramps with a 45° angle are included, along with climbing support.
Made in Germany.

General information

Color	Silver Brown
Finish	Stainless steel Blasted Guidance for specification option: Bead blasted (glass).
Material	Stainless steel Wood
Length	20000 mm 25000 mm 30000 mm 50000 mm Manufacturer guidance Slide length (overall length will be greater).
Width	2860 mm Manufacturer guidance Apparatus only.
Height	3850 mm 3950 mm 4200 mm 4400 mm Manufacturer guidance Maximum.
Warranty description	Lifetime

Uniclass	Pr_40_30_61_64 Play runwaysPrimary
CAWS	Q52/400 Cableway

Specification data - Play runways

Standards	To EN 1176.
Style	Seat. Guidance for specification option: Pendular disc swing made of rubber, with a chain featuring small chain links covered by a tube.
Age range	6–14.
Length	20 m. Guidance for specification option: Cable can be shortened on request; consult manufacturer for options and insert requirements.
Deck height	Not applicable. Guidance for specification option: Not required where the zipwire is installed on a slope to achieve the required height difference. To achieve required slope. Guidance for specification option: A ramp and/ or mound can be placed at the take-off end. The size of the existing slope determines how big of a ramp/ mound is needed; insert details.
Materials	Stainless steel/ wood (robinia). Guidance for specification option: All support posts are made of stainless steel tubes with a diameter of 101.6 mm. The visible ends of the posts are securely welded to stainless steel caps. All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations. All wooden parts are made of Robinia, planed and chamfered. They remain untreated. All connecting parts are made of stainless steel or galvanized materials. Only self-locking nuts are used.
Finish as delivered	-
Finish type	Glass bead-blasted stainless steel.
Colours	Manufacturer's standard.

Slope	Height difference between pyramid racks: 850 mm.
Plan Size	Apparatus maximum width: 2860 mm. Required area: 27 500 x 4370 mm. Guidance for specification option: Overall length required is slide length plus 7.5 m.
Technical characteristics, other	Fall height group: <1500 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	All components on this product are recyclable
