Stainless Steel Splashbacks - Kitchen Splashback

Name: Stainless Steel Splashbacks - Kitchen Splashback
Brand: Anderson, GEC Ltd
SKU: u12L1i18ftnnW9y4BoxP3s

Verified by manufacturer 1 month ago

Anderson, GEC Ltd

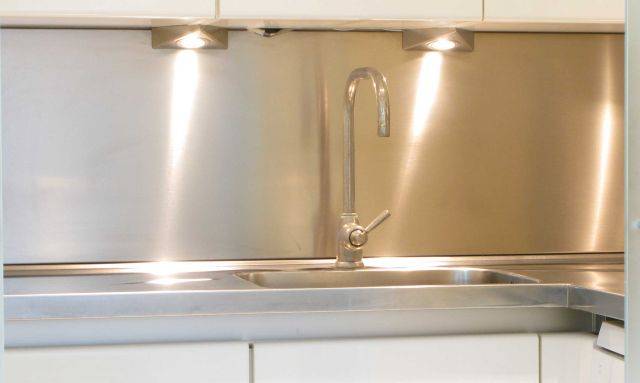

Stainless steel splashbacks are made to measure in any size, providing safe, durable and hygienic wall finishing.

Jump to:

BOS

+44 (0)1442 826999 Website

Application

Suitable for a wide range of applications and environments, including commercial and domestic kitchens, tea points, offices, libraries, schools, hospitals, hostels, retail environments and bars.

Suitable for:

Kitchens

worktops

commercial projects

Description

Available as flat sheet or with folded edges, backed or un-backed. Designed to complement GEC Anderson Ltd stainless steel sinktops and worktops.

Features and benefits:

Cut-outs for electrical points are available as required.
Folded edges and welded corners. (Option: un-welded corners).
Alternatively, flat sheet splashbacks are available (with or without substrate).
Maximum single size: 4300 x 1500 mm.
Cut-outs (e.g. for sockets) available as required.
Standard thickness: 15, 18 or 20 mm. Other sizes available on request.
EN 1.4301 grade brushed satin stainless steel. Plastic protected.

General information

Color	Silver Gold
Finish	Satin Brushed
Material	Stainless steel Steel
Shape	Rectangle
Length	Bespoke Guidance for specification option: Maximum single size: 4300 x 1500 mm.
Width	15 mm 18 mm 20 mm
Height	Bespoke Guidance for specification option: Maximum single size: 4300 x 1500 mm.
Warranty description	Five year

Uniclass	Pr_40_30_30_45 Kitchen splashbacksPrimary
CAWS	N10/110 Purpose-made N10/10 Purpose-made N10/145 Vanity and washroom furniture N11/380 Purpose-made units

Product range	Made to Measure / Splashbacks

Specification data - Kitchen splashbacks

Material	Stainless steel grade 1.4301 (304), brushed satin, plastic protected.
Edges	Folded, welded corners. Guidance for specification option: As standard. Folded, un-welded corners.
Size	4300 x 1500 mm (maximum). Guidance for specification option: Standard sheet sizes (maximum): 1000 mm wide: 4000 mm. 1500 mm wide: 3000 mm.

Backing	Not required. Waterproof particle-board. Flat sheet with no backing. Flat sheet with waterproof particle-board backing.
Steel thickness	15 mm. 18 mm. 20 mm. Manufacturer guidance Other sizes available on request, insert requirement.
Accessories	Not required. Flat sheet with no backing. Flat sheet with waterproof particle-board backing.
Cut-outs	Not required. Required. Guidance for specification option: Cut-outs (e.g. for sockets) available as required.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %

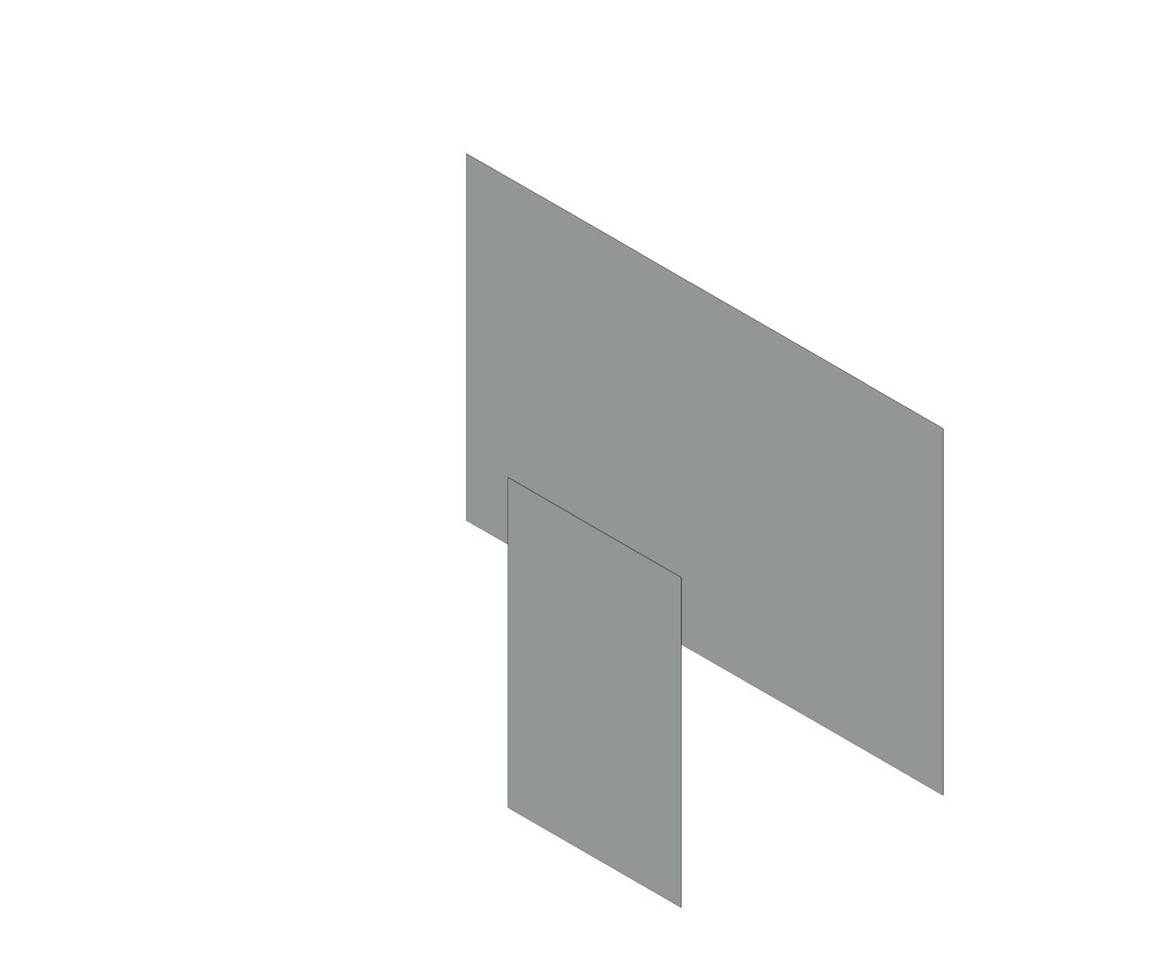

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	-	1
Revit	Revit 2017	1

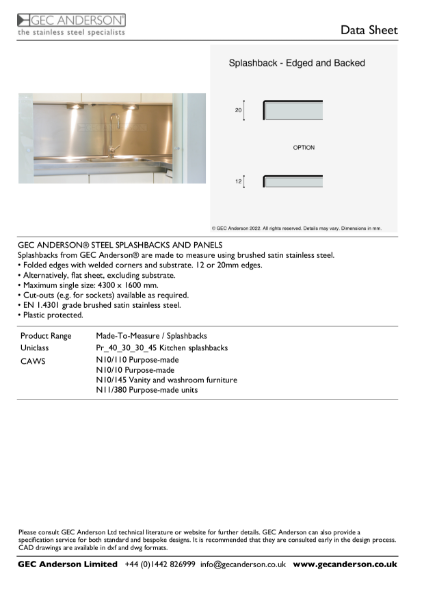

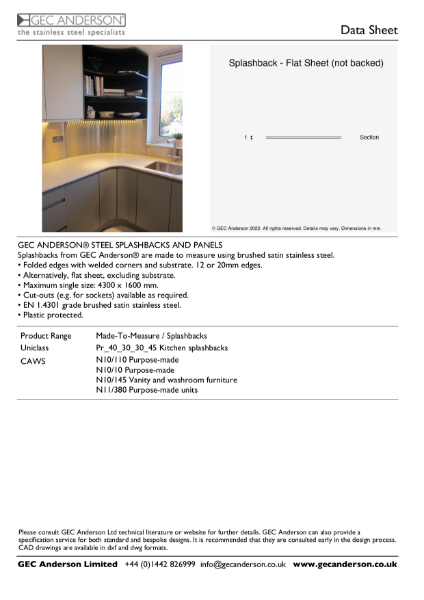

Literature

Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications
