Application

The product can be used on openings where selective entry/ exit is required, and is suitable for shopping malls and underground car parks, where it also provides optimum ventilation (approximately 80% free area).

Description

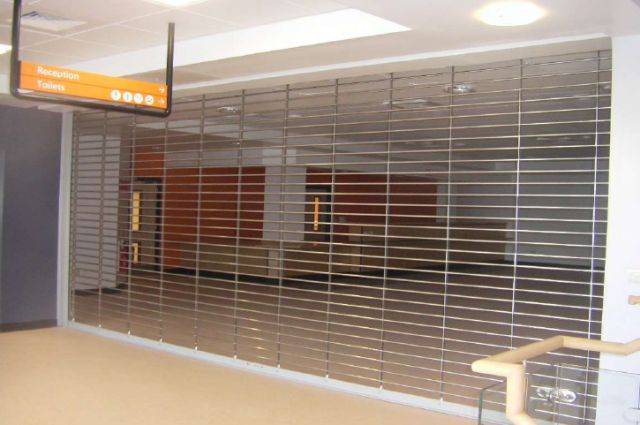

Stainless steel rolling grilles are designed for openings where a high degree of security is required, whilst maintaining the see-through aspect not available with closed lath shutters.

The combination of parallel mesh and high-quality stainless steel offers a high aesthetic appearance, whilst avoiding any rusting problems which can be associated with normal steel grilles. Each grille is custom-made to suit the individual opening and can be face-fixed or fixed between the structures.

Features and benefits:

  • Curtain: constructed from stainless steel tubes and links to form a parallel mesh size of 500 x 85 mm, with end caps fitted to the end of each tube to prevent lateral movement.
  • Bottom rail: fabricated from two steel angles to form an inverted 'tee' section, and powder-coated silver.
  • Guides: the side guides are formed from galvanized steel channels and prepared for fixing to the opening structure by means of continuous fixing angles.
  • End plates: fabricated from carbon steel of adequate thickness relative to door size, and supplied with angles for fixing to the structure.
  • Roller: the roller is manufactured from carbon steel tube of sufficient diameter and wall thickness to resist deflection, and is mounted in bearings or cups on each end plate.
  • Operation: electrical operation is by means of a direct-drive, three-phase geared motor mounted on the outside of one end plate. The motor has an inherent safety brake, thus meeting all relevant health and safety requirements.
  • Controls: the standard controls are by means of 'open/ close/ stop' push-buttons fitted adjacent to the shutter.
  • Casings: coil casings fabricated from galvanized steel sheet are available as an optional extra.

Applications:

The product can be used on openings where selective entry/ exit is required, and is suitable for shopping malls and underground car parks, where it also provides optimum ventilation (approximately 80% free area).

General information
Size

Bespoke; consult manufacturer for details and insert requirements.

Uniclass 2015 Roller grilles (Pr_30_59_84_72)
Specification data
Product Reference

Stainless Steel Rolling Grilles

Size

Bespoke; consult manufacturer for details and insert requirements.

Fixing

Face-fixed

Fixed in-between

Accessories/ Other requirements

None

Coil casings

Fascias

Heavy-duty motors for higher usage

Key switches

Remote control

Safety photocells

Solenoid locking shoot-bolts

Tubular Motors

Standard product features

Weight (approximately):

Approximately 25 kg/m².

Product Options

Size (w x h, maximum):

10 x 5 m.

Finish:

Self-finish stainless steel.
