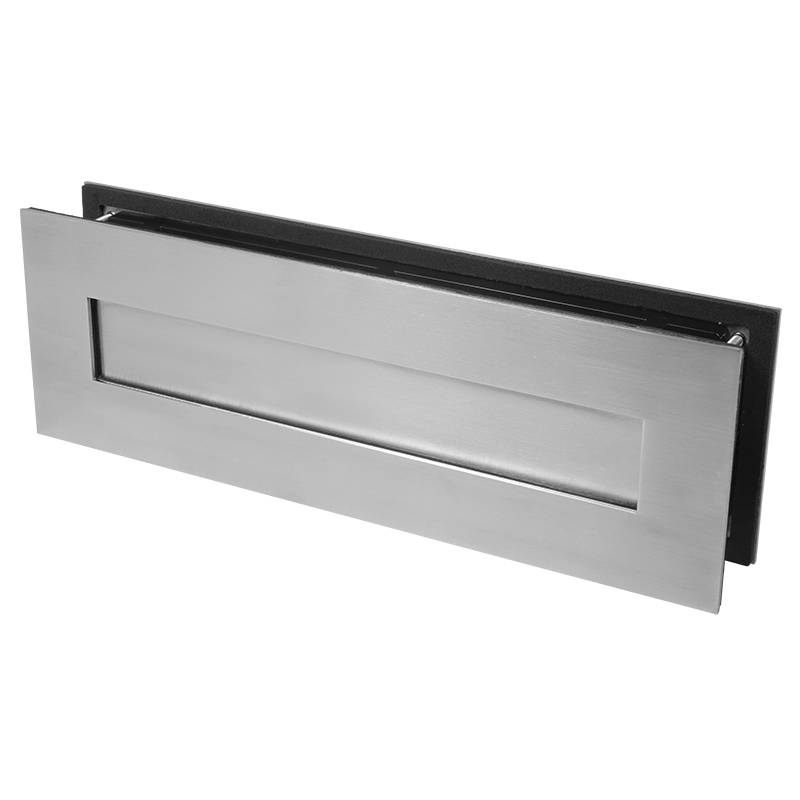

Stainless Steel Letter Plate - BLU™ LP400 | Coastal Group - Front Entrance Door Hardware
Verified by manufacturer 5 months ago
LP400-SSS
LP400-SSS
This high-quality contemporary letter plate is weather tested to BS 6375-1 standards and made from the finest 316 Marine Grade Stainless Steel for Durability
Application
Suitable for residential use and commercial use.
Description
Stainless steel sleeved letter plate available to suit door thickness up to 68 mm.
Features and benefits:
- Suitable for use where corrosion levels are high, such as coastal environments and in acidic timber.
- SSS, PSS and PPB finishes are manufactured from 316 marine grade stainless steel and have a lifetime guarantee.
- MSB, ORB and TMB finishes are manufactured from 316-grade stainless steel and have a 25-year guarantee.
- Weather tested to BS 6375-1.
- Successfully used in a PAS24 test.
General information
Color | Silver Black Gold |
Finish | Matt Oil rubbed Polished PVD Satin |
Material | Stainless steel 316 Marine grade stainless steel. |
Shape | Rectangle |
Length | 330 mm |
Width | 41 mm |
Height | 110 mm |
WarrantyDescription | Lifetime
25 year
|
Uniclass | |
CAWS | P21/54 Internal letter flaps P21/735 Internal letter flaps P21/730 Letter plates P21/52 Letter plates |
Specification data - Letter plates
Standard | To BS6375-1.Weather tested. |
Operation | Inward opening sprung flap. |
Size | 330 x 110 mm. |
Material and finish | Satin stainless steel (SSS) grade 1.4401 (316). |
Colour | Stainless steel. |
Air permeability | To BS EN 12207:2000, Class 4 (600 Pa). |
Watertightness | To BS EN 12208:2000, Class A9 (6000 Pa). |
Wind resistance | To BS EN 12210:2001, Class A5 (3000 Pa). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Stainless Steel Is Recyclable |
