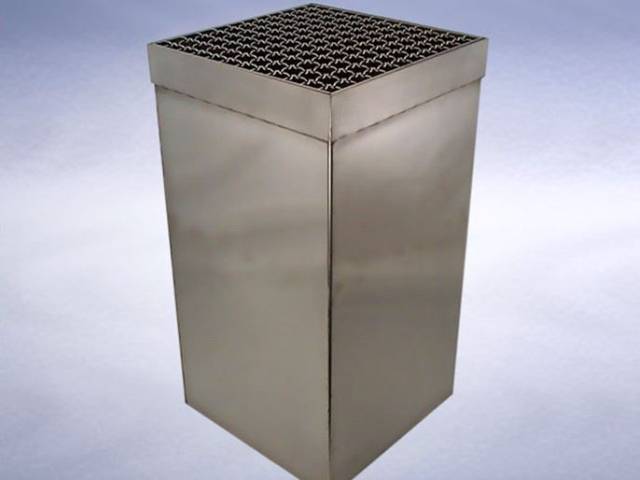

Stainless steel floor gullies, non-trapped
Description

A range of stainless steel gullies for use in areas associated with food production, processing or preparation where corrosion resistance or minimum maintenance is a requirement.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Stainless steel floor gully, non trapped

Body

Q1034N, 300 x 300 mm with 100 mm dia. vertical outlet, for use with finished with tiles, marble, terrazzo

Q1034NV, 325 x 325 mm with 100 mm dia. vertical outlet, for use with flexible sheet floor covering

Q1036N, 300 x 300 mm with 150 mm dia. vertical outlet, for use with floors finished with tiles, marble, terrazzo

Q1036NV, 325 x 325 mm with 150 mm dia. vertical outlet, for use with flexible sheet floor covering

Q1434N, 300 x 300 mm with 100 mm dia. vertical outlet, for use with floors finished with tiles, marble, terrazzo

Q1434NV, 325 x 325 mm with 100 mm dia. vertical outlet, for use with flexible sheet floor covering

Q1436N, 300 x 300 mm with 150 mm dia. vertical outlet, for use with floors finished with tiles, marble, terrazzo

Q1436NV, 325 x 325 mm with 150 mm dia. vertical outlet, for use with flexible sheet floor covering

Q2834N, 200 x 200 mm with 100 mm dia. vertical outlet, for use with floors finished with tiles, marble, terrazzo

Q2834NV, 200 x 200 mm with 100 mm dia. vertical outlet, for use with flexible sheet floor covering

Gratings

Q4232, anti-slip mesh, 192 x 192 x 30 mm deep

Q4332, anti-slip mesh, 293 x 293 x 30 mm deep

Q5232, plain mesh, 192 x 192 x 30 mm deep

Q5332, plain mesh, 293 x 293 x 30 mm deep

Q6230, smooth perforated, circular apertures, 192 x 192 x 30 mm deep

Q6430, smooth perforated, square apertures,192 x 192 x 30 mm deep

Q7235, bar grating, 192 x 192 x 30 mm deep

Q7335, bar grating, 293 x 293 x 30 mm deep

Q9233, streamline grating, 192 x 192 x 30 mm deep

Q9333, streamline grating, 293 x 293 x 30 mm deep

U5232, cover with 55 mm diameter inlet, 192 x 192 x 30 mm deep

Standard product features

Body material:

Stainless steel grade 304 body, non-trapped sump.

Grating material:

Stainless steel.

Product Options

  • Filter bucket, suffix B.
  • Membrane clamping collar, suffix C.
  • Side inlet, suffix I.
  • Grade 316 stainless steel, suffix M.
