Stainless Steel Floor Access Doors - Fire Rated, Insulated, Lift Out Hinged - SBVE
Compare variants

Stainless Steel Floor Access Doors - Fire Rated, Insulated, Lift Out Hinged - SBVE

Verified by manufacturer 16 days ago

SBVE-F90 - 52 mm Recess - 90 Mins Fire Rated - Lift Out

Surespan Variant:

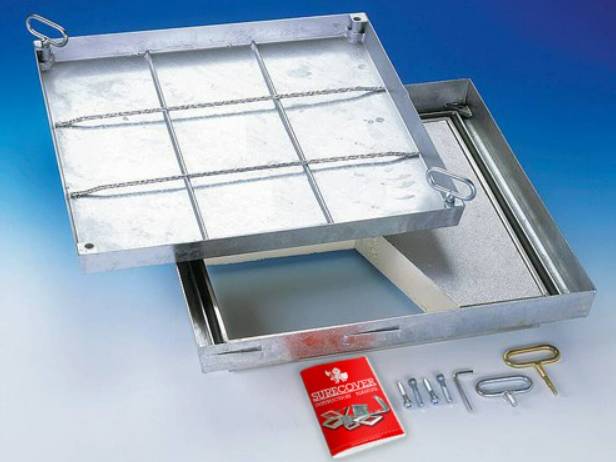

Stainless Steel lift out sealed floor access doors. Virtually invisible when installed. EPDM seal. Loadings up to 125 kN, insulated, shallow and Fire Rated up to 90 Minutes.

Jump to:
+44 (0)1922 711185 www.surespancovers.com

Application

Easy-to-open design accommodates a variety of flooring tiles and ceramic finishes.

Description

SBVE Range is manufactured from stainless steel grade 304 with an EPDM Seal. Available with infill depth of 27mm (Shallow) or 52mm.


Features and benefits:

  • Up to 125 kN test load (EN 124).
  • Available as lift out, fire rated (90 minutes), insulated hinged and shallow.
  • Sealed access cover in high-quality finish.
  • Complete with EPDM seal.
  • The cover is reinforced with a clamped steel mesh reinforcement.

General information

Shape

Rectangle

Square

Material

Steel

  • Frame and cover sections in stainless steel grade 304 (standard)/ 316 (on request).
  • Stainless steel screws.

Rubber

  • EPDM rubber seal.

Size

200 x 200 mm

300 x 300 mm

400 x 400 mm

450 x 450 mm

500 x 500 mm

Show more

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

R12/54 Access points – plastics

L20/630 Hatches

R12/471 Access covers and frames

L20/60 Doors

P30/301 Access covers, manhole tops and frames

Specification data - Access covers, gratings and frames

Configuration

Lift out.

Finish

Self-finish.

Load class (minimum)

Not required.

125 kN.

Per EN 124 when filled with grade C35/45 Concrete (EN 206).

Frame or support

Stainless Steel Grade 304.

As standard.

Stainless Steel Grade 316.

On request.

Size:

450 x 450 mm.

635 x 635 mm.

700 x 700 mm.

FireRating

90 minutes.

Infill depth

52 mm.

Cover depth

75 mm.

CoverMaterial

Stainless Steel Grade 304.

As standard.

Stainless Steel Grade 316.

On request.

Hardware

Stainless steel screws.

Locking

  • SureCover SBVE comes with a set of lifting keys and precise installation instructions.
  • Jammed covers are released by simply turning the Brass Key provided.

Seal

EPDM rubber.

Reinforcement

Steel mesh.
