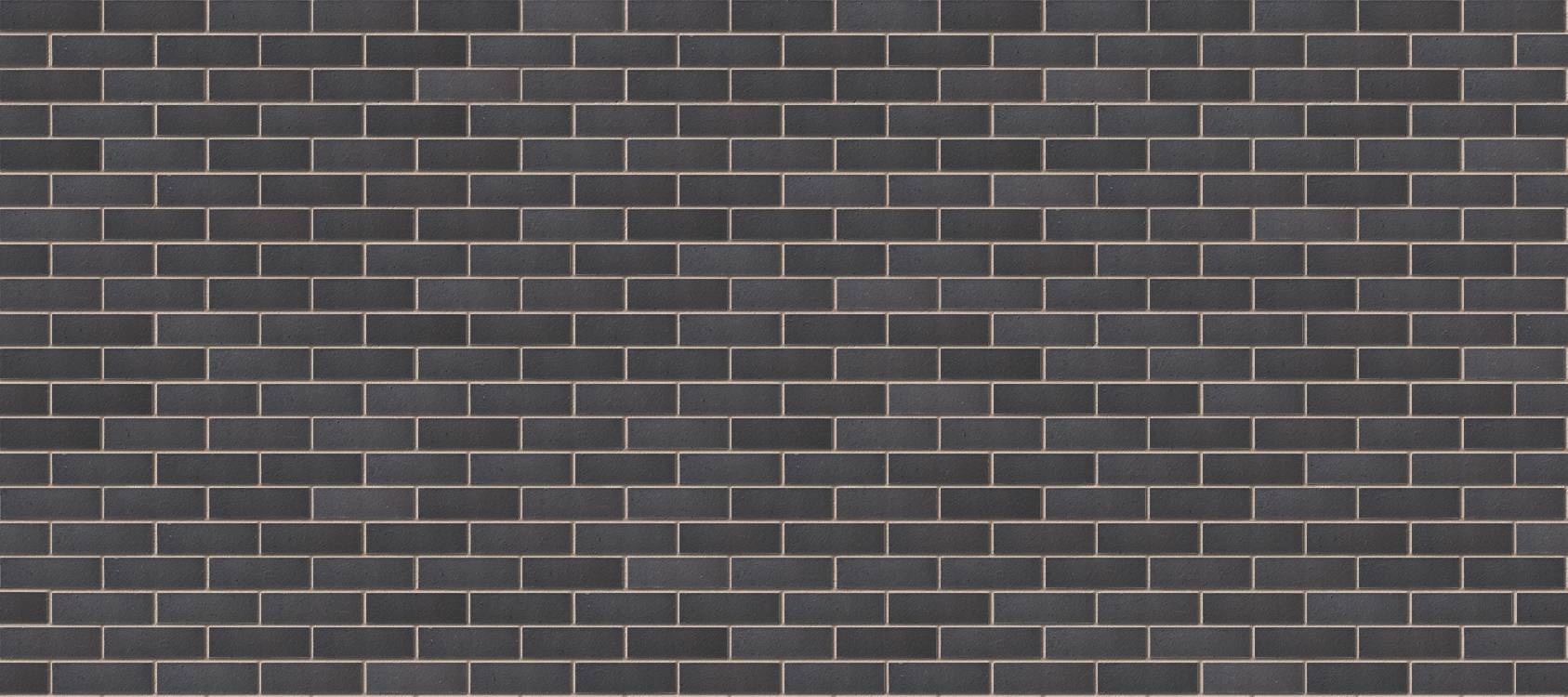

Staffordshire Slate Blue Smooth
Verified by manufacturer 4 months ago
Wire cut clay facing bricks.
Description
Blue, vertically perforated, wire cut, 2.4 kg clay facing bricks.
Features and benefits:
- Smooth surface.
- Supplied banded (plastic).
General information
Color | Blue |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 75 N/mm². |
Durability designation | F2 S2. |
Density | |
Gross dry | 1650 kg/m³. |
Net dry | 2300 kg/m³. |
Tolerance | T2, R1. |
Water absorption | 7%. |
Configuration | Vertically perforated. |
Thermal conductivity | 1.19 K. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Class A1 to BS EN 13501-1. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
