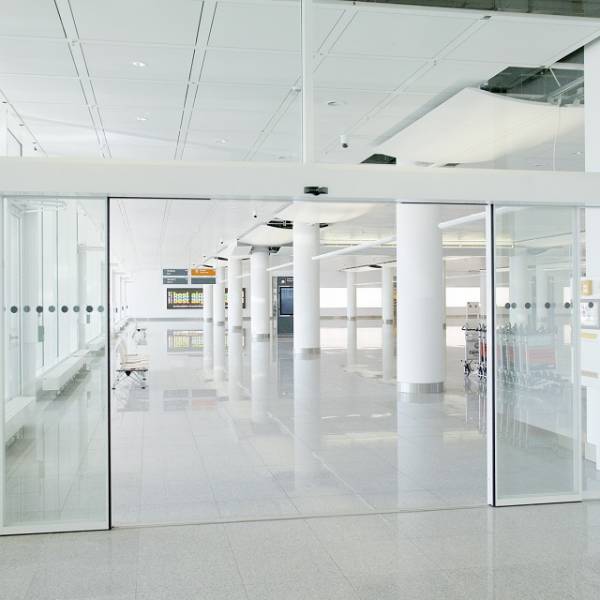

ST-AP Frameless Automatic Sliding Doors

Application

  • Suitable for use on offices, healthcare and education projects, as well as numerous other specifications.
  • Suitable for use on emergency escape routes.
  • Particularly suitable for meeting the relative legislative requirements for disabled access in the UK and Ireland.


Description

Sliding door system combining the appeal of frameless door leaves and side panels with the performance of the ES 200 automatic sliding door operator.


The entire range of automatic doors are designed to be fully integrated with our CODIC MasterCard or MATRIX Professional Access Control solutions.


Features and benefits:

  • ES 200 automatic sliding door operator.
  • Frameless door leaves with top and bottom rails or manet patch fittings and maximum visual transparency.
  • Monitored battery back-up system.
  • Activation via radar, push pad or access control.
  • Available in a range of finishes.
  • Fitted with DORMA Prosecure sensors.
  • Full range of performance functions for the DORMA ES 200 automatic sliding door operator (tested to 1 000 000 cycles).
  • Tailored sizes and bespoke manufacture in the UK.
  • Installation ‘project co-ordinated’ by the DORMA Projects Team.
  • Meets the requirements of BS EN 16005 “Power operated pedestrian doorsets. Safety in use. Requirements and test methods”.
  • Dorvision real time remote monitoring system: Dorvision GPRS based wireless system concealed within the operator; system monitors each door location remotely via the internet incorporating facility to lock/ unlock doors, timed automatic locking, reset, diagnostic system checks and to provide data capture on usage and performance.

General information

Color

Silver

Finish

Anodized

Powder coated

Material

Aluminium

Glass

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/490 Automatic doors

Product range

Automatics / Sliding Doors

Specification data - Sliding door and partition sets Enhanced data

Door leaves

-

Construction

Toughened safety glass incorporating DORMA Manet fittings.

Toughened safety glass incorporating top and bottom rails.

Finish and colour

Polyester powder coating.

Insert colour requirement.

Silver anodized.

Stainless steel.

Operation

ES200 Microprocessor controlled, modular designed automatic sliding door operator. Tested and certified to 1 000 000 operation cycles. Night/ bank facility. Five position mode switch (off, automatic, partial opening, exit only and hold open).

Drive unit encased in purpose designed extruded aluminium profile.

Accessories

None.

Dorvision real time remote monitoring system.

Dorvision GPRS based wireless system concealed within the operator; system monitors each door location remotely via the internet incorporating facility to lock/ unlock doors, timed automatic locking, reset, diagnostic system checks and to provide data capture on usage and performance.

Emergency break glass.

Drive unit height

100 mm.

150 mm.

Activation

Activ8 combined radar activation and threshold infrared safety sensor.

Standard.

Hard wired or wireless wall switch actuation satin stainless steel.

150 x 150 mm.

Link to access control (by others).

DORMA require a normally open bolt free contact momentarily closed on receipt of a valid signal from the access control system.

Slimline jamb switch satin stainless steel.

115 x 45 mm

Rear edge safety

900 mm high all glass solid infill safety barriers.

DORMA Prosecure Opti Scan Rear Edge Presence Sensors reducing the door to “Low Energy Speed” upon activation.

Full height frameless pocket screens constructed from 10mm toughened safety glass and patch fittings.

Locking

Electromechanical concealed within the operator.

Manual bottom locking with euro profile keyed cylinder/ thumb turn.

250 mm per door leaf reduction in clear opening.

Screens

Constructed from toughened safety glass incorporating bottom rails and surrounding glazing channel.

Power failure

Monitored battery back-up system.

Automatically opens the doors in the case of a power failure or upon a signal from the interfaced fire alarm system.

Safety devices

Self-regulating safety system with auto reverse function.

Monitoring all door movements including closing force.

Auto reverse function if the doors make contact with an obstruction during the closing cycle (infrared threshold safety sensor).
