SSQ Domiz natural roofing slate

Name: SSQ Domiz natural roofing slate
Brand: Spanish Slate Quarries UK Ltd
SKU: 7CVwydBTXEbgSR9d6moQNk

Verified by manufacturer 7 months ago

Spanish Slate Quarries UK Ltd

Roof slate rich in blue-grey overtones, coupled with deep, bold texture.

Jump to:

BOS

+44 (0)20 8961 7725 Website

Application

For roofing applications.

Description

SSQ Domiz slate is mined and hand split exclusively for SSQ from the Orense region in North-West Spain. The region is renowned for its high-performance roofing slates. Domiz slate has been in use in the UK and Ireland since 1996, offering a long track record of proven quality and lasting aesthetic beauty. It achieves excellent results when tested to the BS EN 12326 achieving the all-important “W1-T1-S1” classification and complies with the arduous Norm Francais (NF 228), which has the strictest slate testing criteria and procedures in the world

Conveniently similar in appearance to the now defunct Ffestiniogg quarry in Wales, so it is increasingly being chosen by specifiers as a robust alternative to this Welsh slate quarry.

General information

Color	Blue Guidance for specification option: Blue-grey overtones.
Finish	Textured
Material	Slate
Shape	Rectangle
Length	500 mm
Width	250 mm
Height	5 mm
Warranty description	75 year

Uniclass	Pr_25_93_72_56 Natural slatesPrimary
CAWS	H62/3 Roof slating H62/105 Roof slating

Specification data - Natural slates

Slate type	-
Source	Spanish.
Colour	Blue. Guidance for specification option: Blue-grey overtones.
Slate size	-
Length (minimum)	500 mm.
Width (minimum)	250 mm.
Standards	-
Product specification	To BS EN 12326, Norm Francais (NF 228).
Methods of test	To BS EN 12326 and achieves W1-T1-S1 (highest classification).
Properties	-
Type	Flat.
Dimensional tolerances	Complies (< +/- 5 mm).
Nominal thickness and individual thickness variation	Complies (< +/- 35%).
Characteristic modulus of rupture (Transverse)	31 Mpa.
Characteristic modulus of rupture (Longitudinal)	37 Mpa.
Water absorption	Code W1.
Freeze-thaw resistance	Low water absorption allows it to withstand freeze-thaw cycling.
Thermal cycle test	Code T1.
Carbonate content	Complies (≤ 5%).
Sulfur dioxide exposure test	Code S1.
Non-carbonate carbon content (maximum)	Complies (≤ 2%)

Product Reference	SSQ Domiz natural roofing slate - First

Sustainability data

Country of material origin	Spain
Country of product manufacture	Spain

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Case studies

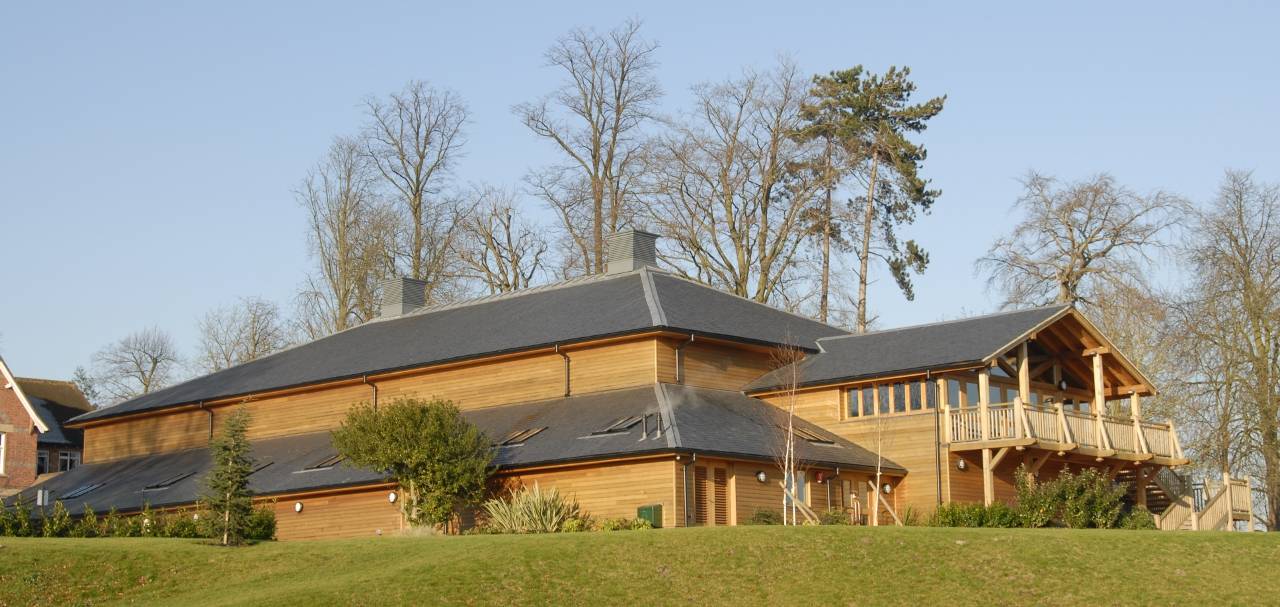

Cotton Tails - Domiz Standard
