SSO Stainless Steel Rainscreen facade Panel Rivets
A4 1.4401 (316) grade austenitic stainless steel rivets for rainscreen facade panels.
Application
Fixing of flashing or cladding panels.
Description

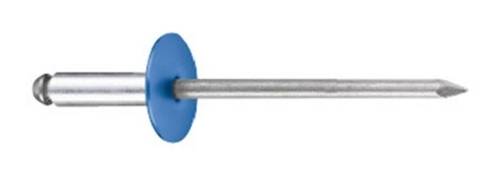

These rivets are manufactured from a 5 mm diameter austenitic stainless steel A4 (1.4578 (316) grade body. The mandrel is also manufactured from A4 1.4571 (316) grade.
The shallow domed head is available in a diameter of 15 mm and may be coloured to match the rainscreen panels.
Installed through the rainscreen panel which has a clearance hole, and into the steel or aluminium support section which has to be pre-drilled 5.1 mm.
Features and benefits:
Available in various lengths and head diameters.
General information
Color | Silver Other Powder coated to suit project. |
Finish | Powder coated Mill |
Material | Stainless steel |
WarrantyDescription | 40 year Up to 40 years - consult manufacturer. |
Uniclass | |
CAWS | H20/150 Sheet cladding H92/120 Rainscreen cladding |
Specification data - Semi-tubular rivets Enhanced data
Material | Stainless steel A4. |
Head style | Dome. |
Product Reference | SSO Stainless Steel Rainscreen facade Panel Rivets |
