SSDHSD: HARDWOOD-DECKING Screw
Verified by manufacturer 7 months ago
A stainless steel screw for hardwood decking applications.
Application
- Suitable for external use.
- Header member - Hardwood deck on hardwood joist (without pre-drill).
- Hardwood/tropical timber.
Description

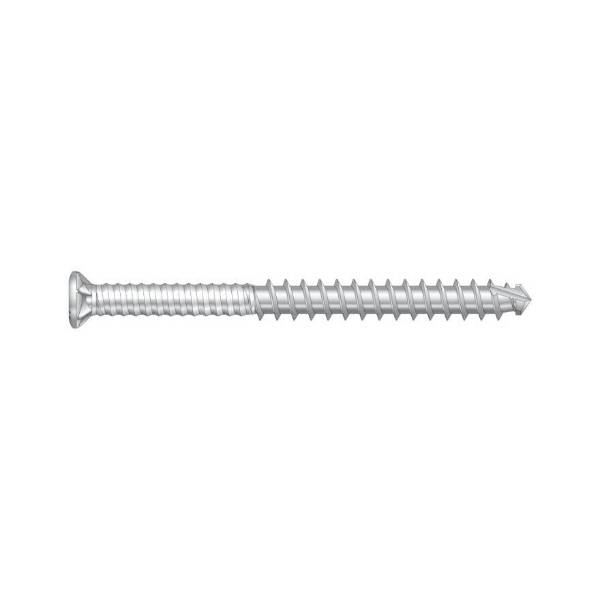

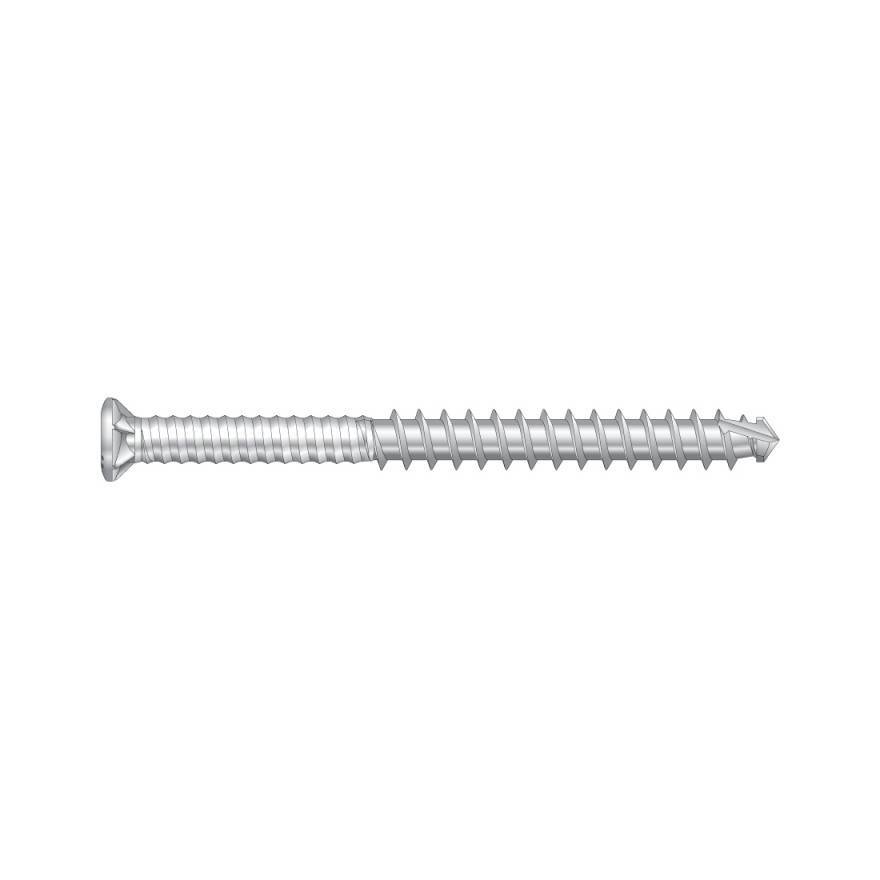

SSDHSD is a stainless steel screw with a ribbed head and drill point tip suitable for hardwood decking installation.
Fetaures and benefits:
- 305 stainless steel A2.
- Paddle point to penetrate the hardest wood products without pre-drilling.
- Compact cap head ensures a low-profile installation and reduced visibility.
- Wings on the shaft counter-bore hard material and allow the head to countersink for a clean look.
- Countersunk head with ribs.
- Fine thread helps pull the deck board tight against the structure.
- Bit (BIT2SE) included.
General information
Color | Silver |
Material | Stainless steel |
Shape | Circle |
Length | 50 mm 60 mm |
Width | 5.3 mm |
Uniclass | |
CAWS | Q55/110 Deck Q50/25 Timber deck |
Specification data - Wood screws
Material | Stainless steel.Guidance for specification option: 305 stainless steel A2. |
Screw details | |
Head option | Countersunk cap head. |
Screw pattern | Fully threaded shank. |
Size | |
Diameter | 5.3 mm. |
Length | 50 mm.Guidance for specification option: SSDHSD50E. 60 mm.Guidance for specification option: SSDHSD60E. |
Service class | 3. |
Literature
SSDHSD Hardwood Decking Screw Technical Data Sheet
