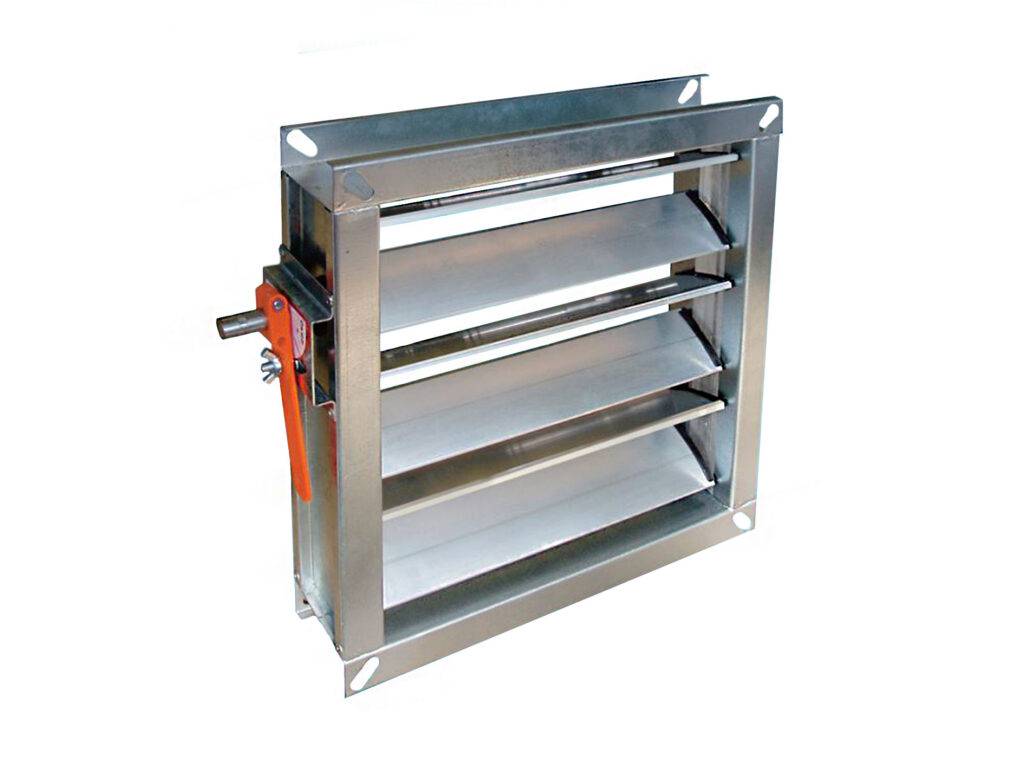

SS Series Slim Seal Volume Control Damper
Verified by manufacturer 2 days ago
Slim seal volume control damper for balancing and regulating airflow within HVAC systems.
Application
For internal use in buildings as part of HVAC systems to balance and regulate airflow. Suitable for low to medium pressure and velocity systems.
Description
The SS Series Slim Seal Volume Control Damper has been designed for installation into air conditioning and ventilation systems where air balancing and low closed blade leakage characteristics are called for in standard low to medium pressure and velocity systems.
The selection of components and materials has been specific so as to ensure manufacture of a high quality, low-maintenance product. Standard case construction is a flanged galvanised mild steel with 50mm wide extruded aluminium blade incorporating TPE blade edge seals with out of airflow linkage. Available in a range of different sizes.
Features and benefits:
- Opposed blade operation incorporating blade end caps.
- Blades available in stainless steel case grades 316 and 430.
- Galvanized steel case construction.
- Standard out of airflow linkage.
- Optional flange sizes.
- 3 control options: hand control, extended spindle (motorisation by others) or motorised (state actuator voltage and model when ordering).
General information
Color | Silver |
Finish | Galvanized |
Material | Steel Stainless steel |
Shape | Rectangle Circle |
Length | Bespoke Guidance for specification option: Rectangular configuration: 100 mm to 1000 mm wide. Circular configuration: diameter of 100 to 1000 mm. |
Width | Bespoke Guidance for specification option: Rectangular configuration: 100 mm to 1000 mm wide. Circular configuration: diameter of 100 to 1000 mm. |
Height | Bespoke Guidance for specification option: Rectangular configuration: 100 mm to 1000 mm high. |
Uniclass | |
CAWS | U90/140 Mechanical supply ventilation U9/313 Mechanical ventilation with heat recovery units U9/120 Mechanical ventilation with heat recovery systems |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
