Squaro Shower Trays (Acrylic) UDQ1780SQR2V
Compare variants

Application

Suitable for Corner installation, flush-fitting installation or installation on a base.

Description

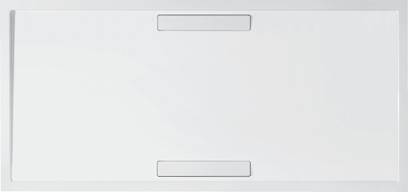

Rectangular shower tray.


Features and benefits:

  • Super Flat.
  • Drainage capacity: 50 l/min.
  • Shower tray with integrated waste and waste cover.

General information

Color

Brown

Cream

Grey

White

Finish

Gloss

Matt

Material

Acrylic

Shape

Rectangle

Length

1700 mm

Width

800 mm

Uniclass

Pr_40_20_06_84 Shower traysPrimary
Ss_40_15_75_78 Shower area systems
Pr_40_20_87_75 Shower fittings package

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Shower trays Enhanced data

Form

Rectangular.

Materials

-

Body

Acrylic.

Finish and colour

White Alpin, gloss.

Size

1700 x 800 x 18 mm.

Integral accessories

Polystyrene support, siphon, sealing tape for installation flush with the floor, outlet cover, special adhesive, flexible connecting hose and installation set with adjustable legs.

Drainage capacity

50 L/min.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
OBJ
-

1

1

SketchUp
-

1

1

3Ds Max
-

1

1

Download now from NBS National BIM Library
