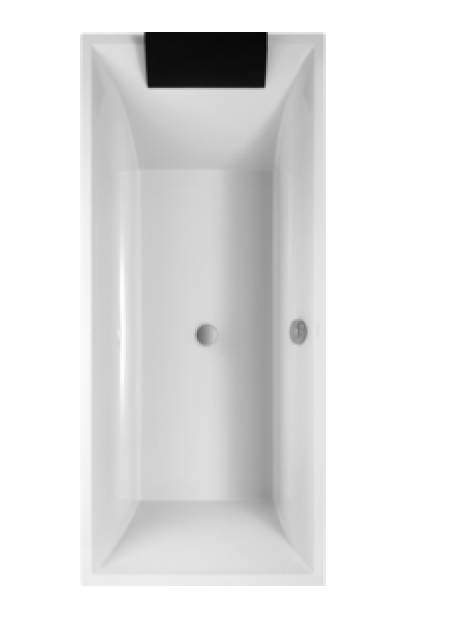

Squaro Rectangular Bath UBQ180SQR2V

Name: Squaro Rectangular Bath UBQ180SQR2V
Brand: Villeroy & Boch AG
SKU: 8orLBbgWqTe8wZp5DNo7xx

Verified by manufacturer 9 months ago

Rectangular bath.

Jump to:

BOS

Application

Domestic bathrooms.

Squaro rectangular bath.

Features and benefits:

Duo.Set of bath feet is supplied as standard (self-adhesive), adjustable from 130—180 mm.
Requires extended waste/overflow combination.

Color	White Guidance for specification option: White Alpin.
Finish	Gloss
Material	Guidance for specification option: Quaryl®.
Shape	Rectangle
Width	1800 mm

Uniclass	Pr_40_20_06_08 BathsPrimary
CAWS	N13/35 Baths N13/355 Baths

Form	Rectangular.
Materials	Quaryl®.
Colour	White Alpin.
Size	1800 x 800 x 500 mm.
Volume to overflow (maximum)	215 L.
Water supply, overflow and waste holes	-
Water supply	No tap holes.
Overflow	Overflow hole. Guidance for specification option: Central outlet.
Waste	Bottom waste outlet.
Support frame	Set of bath feet is supplied as standard (self-adhesive). Guidance for specification option: Adjustable from 130—180 mm.
Integral accessories	Not required. Handgrips - U90170061. Guidance for specification option: 80 x 250 x 30 mm. Multiplex Trio Outlet/overflow fitting with water inlet - U90600361. Guidance for specification option: 180 x 450 x 115 mm. Multiplex Trio Outlet/overflow fitting with water inlet and pipe interrupter - U90600461. Guidance for specification option: 180 x 445 x 115 mm. Multiplex waste/overflow combination - U90950461. Guidance for specification option: 200 x 300 x 100 mm. Multifunction cushion - U906100PA. Guidance for specification option: 150 x 240 x 50 mm. Pipe interruptor - UCCON0475. Guidance for specification option: 450 x 465 x 90 mm.
