Squaro Infinity Shower Trays (Acrylic) UDQ1570SQI2IV
Verified by manufacturer 9 months ago
UDQ1570SQI2IV-1S
UDQ1570SQI2IV-1S

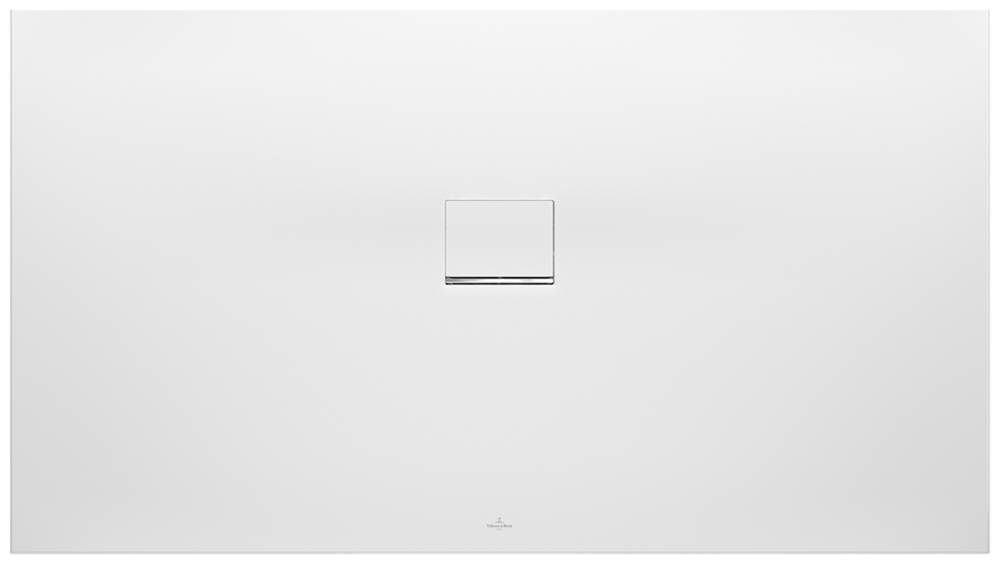

Rectangular shower tray.
Application
Surface-mounted, flush-fitting installation.
Description
Rectangular shower tray.
Features and benefits:
- Cut shower tray (side unprocessed).
- Outlet cover in matching matt colour with chrome-plated strip.
- All shower trays are supplied without support/base.
With cut shower trays, we recommend the use of a composite seal in accordance with ETAG 022 on the floor structure below the shower tray in order to prevent any moisture from penetrating the floor structure.
General information
Color | Brown Cream Grey White |
Finish | Matt |
Material | Acrylic |
Shape | Rectangle |
Length | 1500 mm |
Width | 700 mm |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower trays
Form | Rectangular. |
Materials | |
Body | Acrylic. |
Finish and colour | Anthracite, matt. |
Size | 1500 x 700 x 15 mm. |
Integral accessories | Outlet cover in matching matt colour with chrome-plated strip. |
Drainage capacity | 48 L/min. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
