Application

For bathrooms.


Description

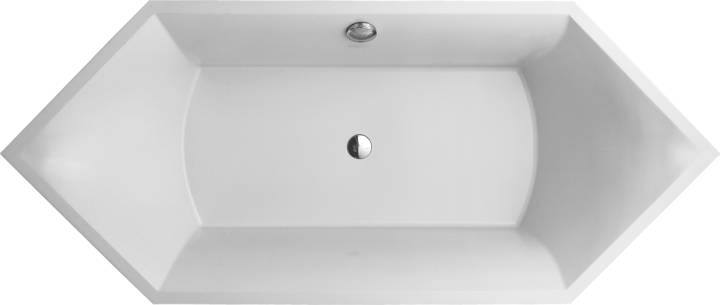

Hexagonal bath.


Features and benefits:

  • Duo, for two people.
  • In case of corner installation the diagonal dimension is 1344 mm.
  • Set of bath feet is supplied as standard (self-adhesive), adjustable from 130180 mm.
  • Requires extended waste/overflow combination.

General information

Color

White

Finish

Gloss

Material

Quaryl®

Shape

Hexagon

Length

1900 mm

Width

500 mm

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/355 Baths

N13/35 Baths

Specification data - Baths

Form

Corner.

Materials

Quaryl®.

Colour

Alpin White.

Size

1900 x 800 x 500 mm.

Volume to overflow (maximum)

185 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Overflow hole.

Waste

Central waste outlet.

Integral accessories

Set of bath feet.

Guidance for specification option:

(Self-adhesive), adjustable from 130180 mm.

Anti-slip finish

Class A.

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

OBJ
-

1

ARCHICAD
-

1

3Ds Max
-

1

SketchUp
-

1

IFC
-

1
