Squareline LED - Aluminium Profile
Verified by manufacturer 4 months ago
Powder-coated
Powder-coated
LED-illuminated edging profile in aluminium for tiled and natural stone surfaces.
Application
- Suitable for use as an edge protection profile, finish trim or skirting.
- Designed for use with an 8 mm LED strip.
Description
LED-illuminated edging profile in aluminium for tiled and natural stone surfaces. Requires translucent cover and LED lighting strip both sold separately. SQUARELINE-LED has been extended with champagne, and titanium together with powder-coated white and black. The metal profile can also be powder-coated to any RAL colour.
General information
Color | Black Gold Grey Silver White |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 2500 mm |
Width | 10 mm 12 mm |
Height | 9 mm 11 mm |
Uniclass | |
CAWS | M40/5 Tiling M40/110 Tiling |
SKU Code | SQLAE LED, SQLAC LED, SQLAC LED SW, SQLP 30 |
Specification data - Edge trims
Classification data | |
Material | Aluminium. |
Finish | Powder-coated. |
Colour or pattern | White. Black-mat. RAL. Guidance for specification option: The metal profile can be powder-coated to any RAL colour, insert requirements. |
Profile | Square. |
Size | 10 x 9 mm. 12 x 11 mm. |
Cover | Translucent polycarbonate, white. |
Accessories | None. External corner. Internal corner. Endcap left. Endcap right. |
Sustainability data
Material | Aluminium |
Recyclability | Metal can be recycled |
Literature

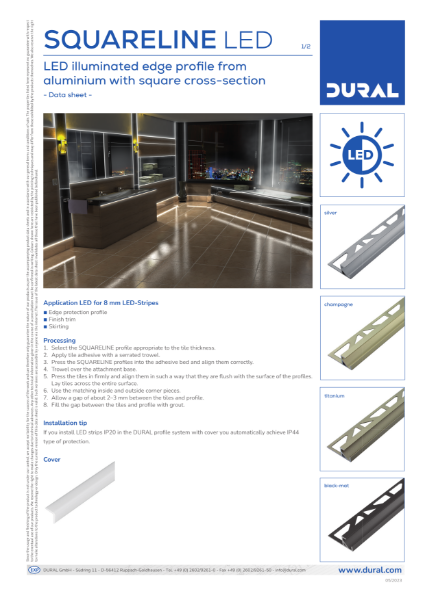

SQUARELINE LED Data Sheet
