Description

Features:

  • Approximately 84% by weight of Swish gutters and pipes is composed of recycled material that is derived from old PVC windows and gutter systems that have been removed from buildings when refurbished or demolished.
  • Swish gutters and pipes are two-tone in appearance. The core recycled material is grey and has been left this colour in order to avoid the unnecessary use of additional colouring agent.
  • The outer skin is virgin material that is co-extruded onto the surface of the core to enhance the finished appearance and to aid colour matching.
  • The rainwater accessories are injection moulded using virgin PVC. These components incorporate a simple clip together system for fitting gutter and pipe profiles. The gutter clips include pre-installed seals that are lubricated during manufacture to ease the clipping process.
  • Designed for use with 68 mm diameter, or 65 mm square pipework.

General information
Features

Approximately 84% by weight of Swish gutters and pipes is composed of recycled material that is derived from old PVC windows and gutter systems that have been removed from buildings when refurbished or demolished

Swish gutters and pipes are two-tone in appearance. The core recycled material is grey and has been left this colour in order to avoid the unnecessary use of additional colouring agent

The outer skin is virgin material that is co-extruded onto the surface of the core to enhance the finished appearance and to aid colour matching

The rainwater accessories are injection moulded using virgin PVC. These components incorporate a simple clip together system for fitting gutter and pipe profiles. The gutter clips include pre-installed seals that are lubricated during manufacture to ease the clipping process

Designed for use with 68 mm diameter, or 65 mm square pipework

Uniclass 2015
Unplasticized polyvinyl chloride (PVC-U) eaves gutters (Pr_65_50_35_92)Primary
Specification data - Unplasticized polyvinyl chloride (PVC-U) eaves gutters
Product Reference

Square System

Colour

Black

Brown

White

Brackets

SQK1 Fascia Bracket

SQU1 Union Bracket

Accessories

SRD1 Square/ Round Gutter Adaptor

SQ02 Stopend Outlet

SQA1 90° Angle

SQA2 135° Angle

SQE1 External Stopend

SQE2 Internal Stopend

SQO1 Running Outlet

Standard product features

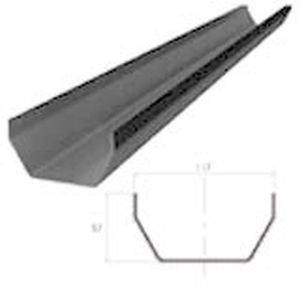

Dimensions:

  • Width: 117 mm.
  • Depth: 57 mm.

Performance (gutter laid level):

  • Head of water (maximum): 54 mm.
  • Short length of gutter: 2700 mm.
