Square Lever Handle (HUKP-0501-03) - Door handle

Verified by manufacturer today

Hafele UK Ltd

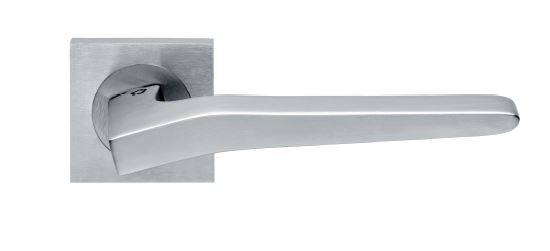

Stainless steel lever handle sprung on square rose.

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable for 38-50 mm door thickness.

Description

Stainless steel lever handle, modern design and sprung on square rose.


Features and benefits:

  • Modern design lever handle pivot fitted into a square rose.
  • Designer: Mario Mazzer.
  • Sprung, for use with standard duty followers.
  • 50 mm square and 10 mm thick rose, tested to over 200 000 cycles.


General information

Color

Black

Silver

Gold

Grey

Finish

Satin

Guidance for specification option:

Chrome, nickel and brass.

Polished

Guidance for specification option:

Chrome.

Matt

Guidance for specification option:

Black.

Material

Stainless steel

Steel

Length

133 mm

Width

49 mm

Height

50 mm

Guidance for specification option:

Square rose 10 mm thickness.

Warranty description

Seven year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/610 Lever handles

P21/38 Lever handles

Specification data - Door lever handle sets

Standard

To BS EN 1906: 2012.

Classification grades (minimum)

-

Category of use

3.

Durability

7.

Fire resistance

0.

Safety

0.

Corrosion resistance

5.

Security

0.

Type of operation

B.

Style

Flat pattern.

Size

133 x 49 x 50 mm.

Manufacturer guidance

Square rose 10 mm thickness.

Material and finish

Stainless steel, grade 1.4301 (304).

Colour

Satin chrome.

Polished chrome.

Matt black.

Anthracite.

Satin nickel.

Satin brass.

Mounting

Sprung rose with bolt through fixing.

Manufacturer guidance

Roses pierced at 38mm centres for M4 bolt through fixing.
