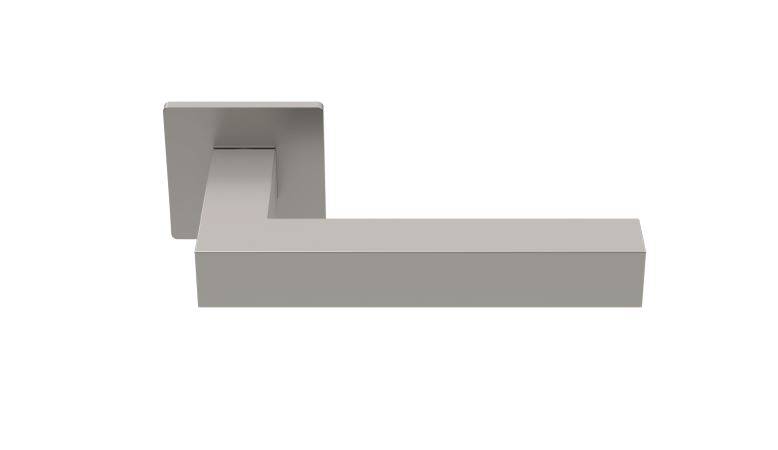

Square Lever Handle (HUKP-0101-41) - Door handle
Verified by manufacturer 18 days ago
Stainless steel square lever handle
Application
Suitable for high frequency of use.
Description
Stainless steel square lever handle.
Features and benefits:
- Square section design lever handle in solid bar stainless steel.
- Ball bearing concealed fixed rose with four point back to back fixing.
- Unsprung, for use with heavy duty followers.
- 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
- To suit door thickness from 35-54 mm.
General information
Color | Silver Black Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 130 mm |
Width | 69 mm |
Height | 20 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
SKU Code | HUKP-0101-41 |
Product range |
Specification data - Door lever handle sets
Classification data | |
Standard | To BS EN 1906: 2012. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 1. Guidance for specification option: Up to 60 minute fire rating. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | U. |
Style | Flat pattern. |
Size | 20 mm. Guidance for specification option: Door handle height and thickness. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel. Polished stainless steel. Matt black. Light bronze. Dark bronze. Hafele black. Polished brass. Satin brass. RAL colour. Guidance for specification option: Special order. |
Mounting | Ball bearing concealed fixed rose with four point back to back fixing. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
3. Project - Architectural Lever Handles
