Square Flat Top Shower Tray
Verified by manufacturer over a year ago
TR6111WH: Tray 760 x 760, Square Flat Top
TR6111WH: Tray 760 x 760, Square Flat Top

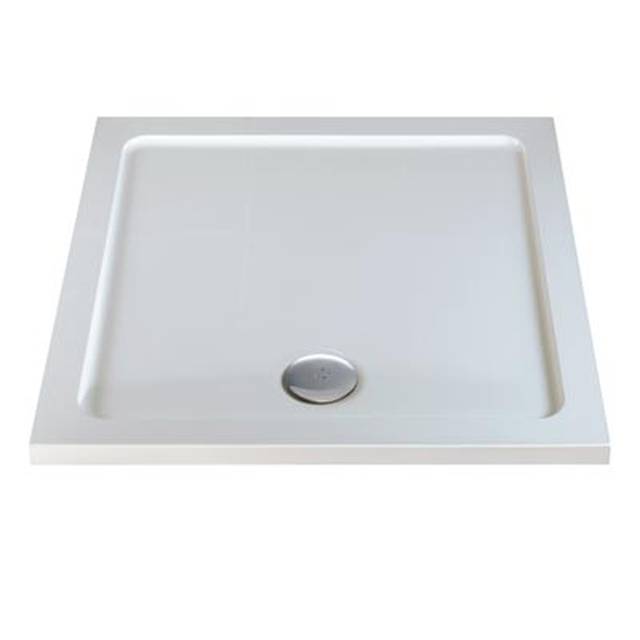

A square flat top shower tray.
Application
Suitable for commercial, domestic, education, healthcare, hotel and leisure applications.
Description
Low profile square shower tray with a flat top.
General information
Color | White |
Finish | Acrylic Tray. Acrylic capped. Gloss Panel. |
Material | Acrylonitrile butadiene styrene (ABS) Tray. Unplasticized polyvinyl chloride (PVC-U) Panel. |
Shape | Square |
Length | 1000 mm 900 mm 800 mm 760 mm |
Width | 1000 mm 900 mm 800 mm 760 mm |
Height | 40 mm |
WarrantyDescription | Lifetime Shower enclosures (excluding T4) and bath screens, Twyford shower trays. |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower trays
Form | Square. |
Materials | - |
Body | Acrylonitrile butadiene styrene (ABS).Tray. Acrylic capped. Reinforced with limestone filled polyconcrete. Unplasticized polyvinyl chloride (PVC-U).Panel. |
Finish and colour | White. |
Size | 760 x 760 mm. |
Accessories | None. SF8888XX, 90 mm high flow waste kit, chrome plated. TR6012WH, Twyford tray up to 1200 mm leg and panel kit. TR6014WH, Twyford tray flexible upstand/ seal kit. Converts flat top tray to tiling upstand option. TR6015WH, Twyford tray flexible waste pipe. 1200 mm flexible waste pipe. |
Installation | Trays can be installed flat to floor or used in conjunction with a legset and panel kit. |
TrayTray thickness: 2–2.5 mm, specifier to detail. | - |
ThicknessPanel thickness. | 2 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
