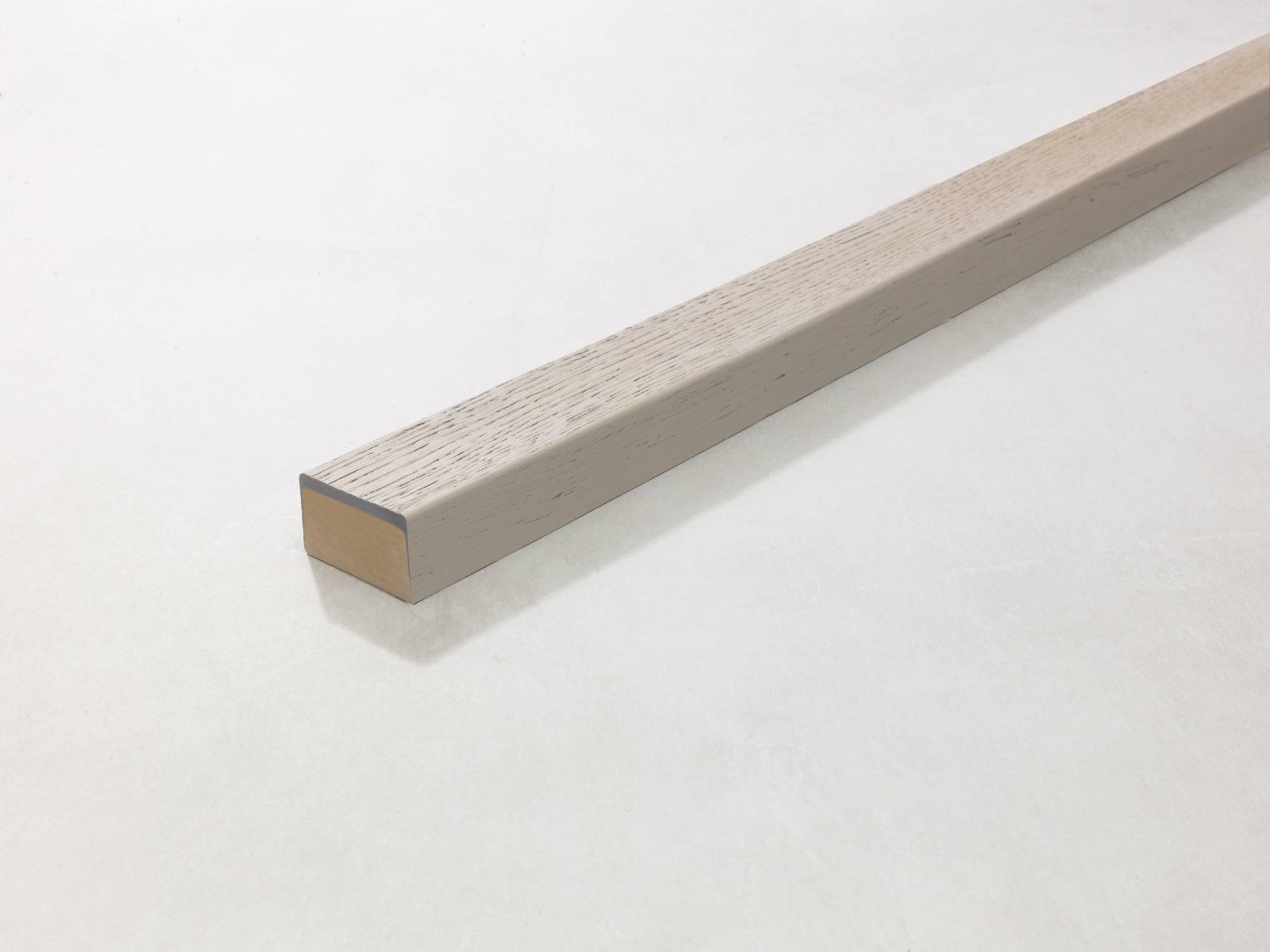

Square Edging

Application

The Square edging can be used around the perimeter of a decking area to add a finishing touch, or on the edges of steps as they are designed to resist excessive wearing from high footfall. They can also be used on their own as cladding of screening, to create a contemporary feel to a house wall or fence.


Installation:

When used on a decking installation the Square Edging profiles need to be fully supported along their length by the perimeter joists, supported by a minimum of 25mm at the back by the joist. These profiles need to be fixed to the joist every 200-300mm centres using the Durafix fixings. When used on a cladding/screening installation the Square edging needs to be supported by battens at 600mm centres (reduce to 400mm centres for high-load areas), fixed with the Durafix fixings.

Description

Designed to resist high wear points and available in nine colours, the structural core of Millboard Square edging is a blend of natural minerals bonded in a polymer resin, with long fibre reinforcement for mechanical strength and durability. The top surface is a textured, resilient Lastane® layer which is chemically melded to the core and hand-tinted using 2K component pigments that resist fading and UV damage.


Features and benefits:

  • 100% wood-free and hand-moulded, on three sides, to give a real-wood grain representation.
  • Unique Lastane® finish provides low slip potential, and is resistant to scratches, food and drink stains, and everyday wear and tear.
  • Millboard Durafix® stainless steel screw fixings sink into the Lastane® material to achieve a virtually indistinguishable mark.
  • Non-porous composition makes it resistant to algae, insects and liquids (including fats, food, drink and urine).
  • Manufactured under ISO 9001:2015 Quality Standards, ISO 14001 Environmental Standards and ISO 45001:2018 Occupational Health and Safety Standards.
  • Thicker layer of Lastane® to resist higher wear points.

General information

Finish

Textured

Material

Polyurethane

The structural core of Millboard square edging is a blend of natural minerals bonded in a polymer resin, with long fibre reinforcement for mechanical strength and durability.

Shape

Rectangle

Size

50 x 32 x 3200 mm

WarrantyDescription

25 years

Residential limited structural warranty.

Five years

Commercial limited structural warranty.

Uniclass 2015

Pr_25_71_63_72 Recycled plastics deck boardsPrimary

CAWS

Q55/110 Deck

Q55/380 Deck boards

Specification data - Recycled plastics deck boards Enhanced data

Finished size

-

Section

50 x 32 mm.

Length

3200 mm.

Colour

Brushed Basalt.

Embered/ Burnt Cedar.

Coppered Oak.

Golden Oak.

Jarrah.

Show more

Fixing

Millboard Durafix® stainless steel T15 decking screws 4.5 x 60 mm.

Millboard Durafix® stainless steel T15 decking screws 4.5 x 45 mm.

Surface finish

Moulded from hand selected prime oak samples.

Top layer

Lastane® layer.

The top surface is a textured, resilient Lastane® layer which is chemically melded to the core and hand-tinted using 2K component pigments that resist fading and UV damage.
