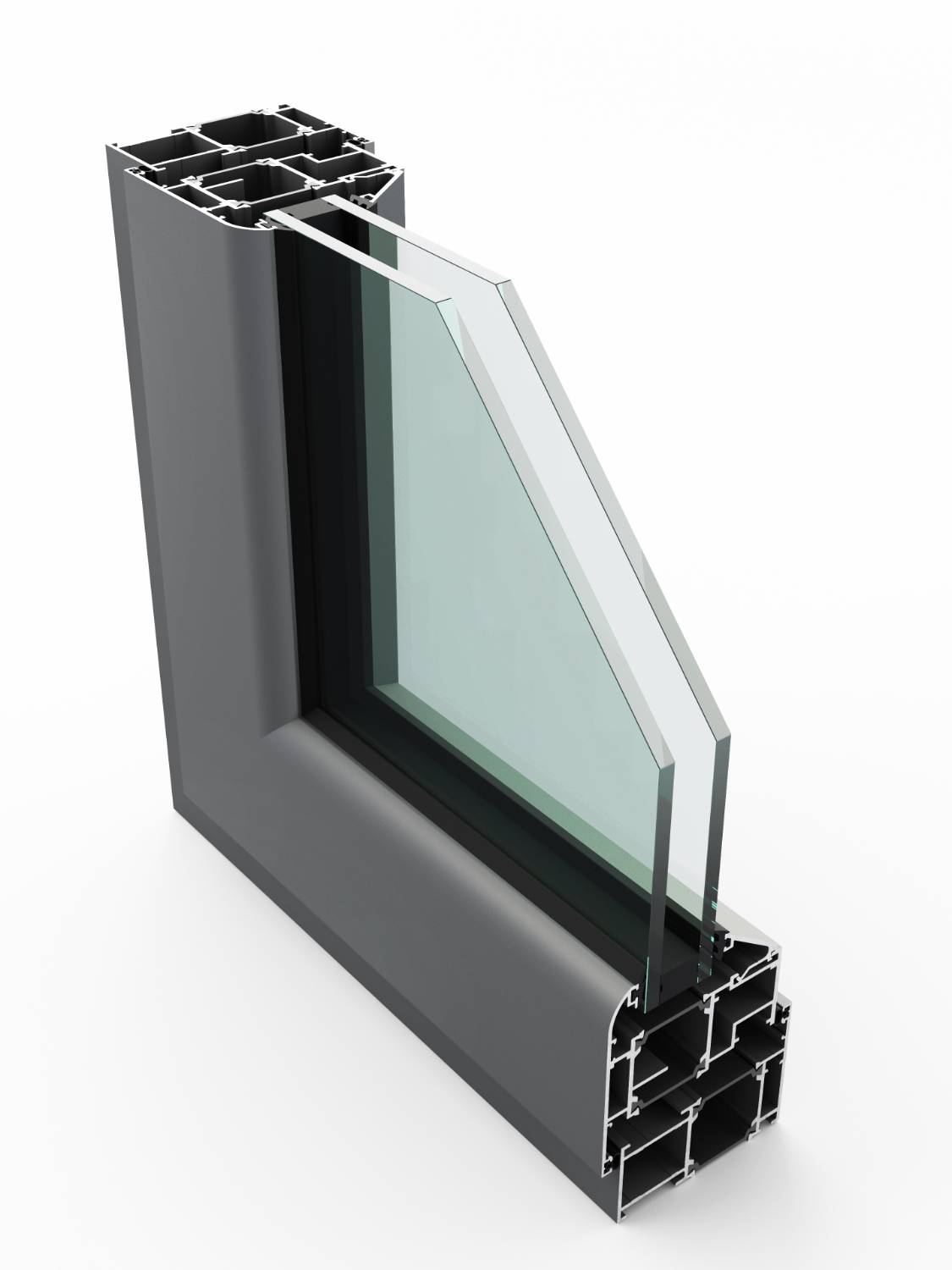

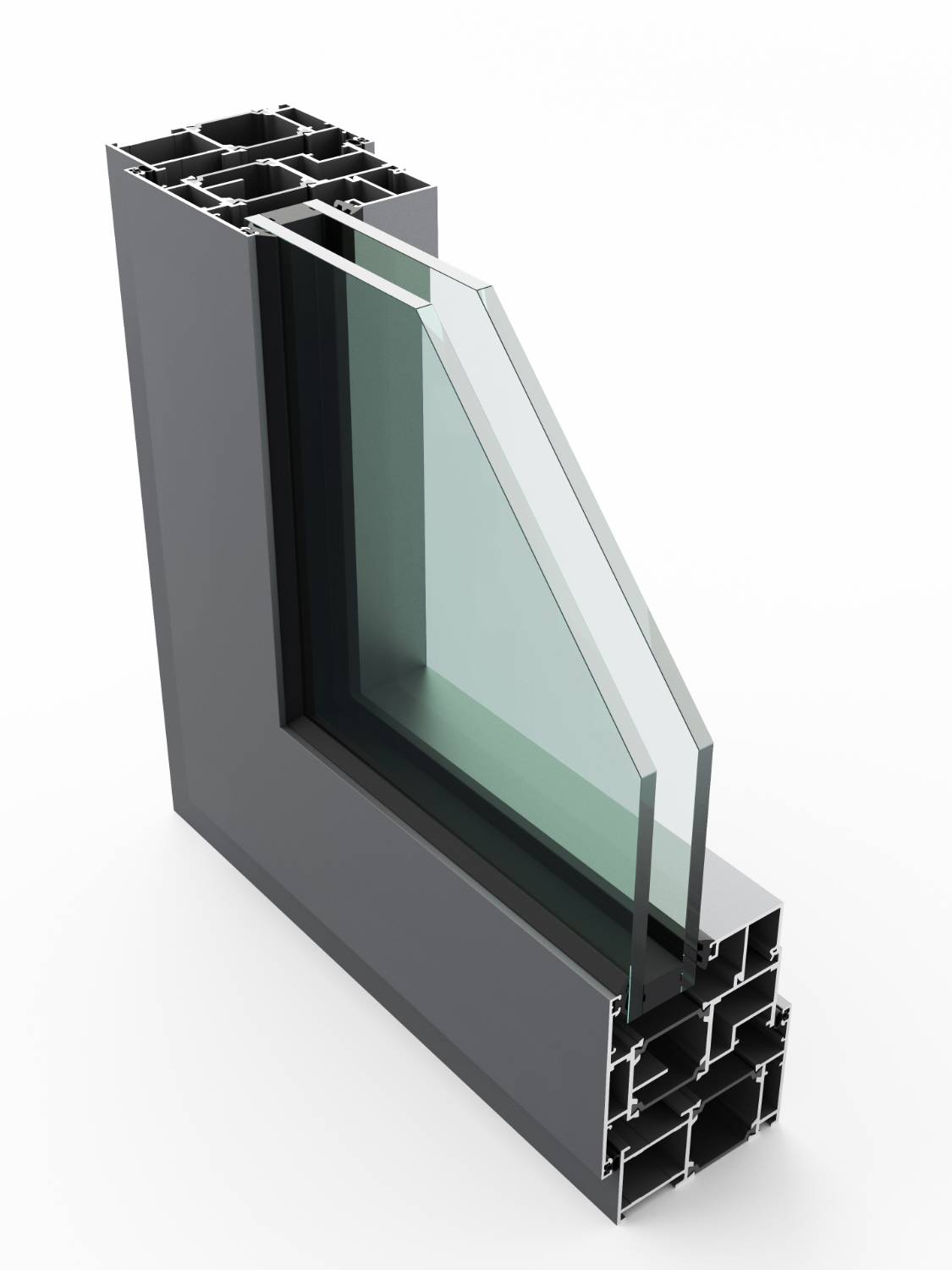

SPW600e Casement Window

Verified by manufacturer 25 days ago

SPW600e Casement Window System [Wall Placement]

Senior Architectural Systems Ltd Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

High performance, commercial window system based on 75 mm profiles.

Jump to:
BOS
+44 (0)1709 772600 Website

Application

Suitable for educational, commercial and retail applications, transport terminals, health service buildings.

Description

High performance, commercial window system based on 75 mm profiles. The range includes fixed lights, top-hung, side-hung, tilt-turn, horizontal and vertical pivot, and overswing windows. A range of mullions and transoms allows large composite windows to be fabricated.

Matching opening doors are also available.


Features and benefits:

  • Windows tested for weather tightness to BS 6375-1 and for security to BS 7950.
  • Includes a polystyrene strip in the thermal break cavity alongside a backer rod situated around the insulated glazed unit
  • Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
  • Gaskets are manufactured in accordance with BS 3734.



Construction:

  • Constructed with mitred and mechanically crimped or joined corners, with support chevrons and cleats to ensure accurate alignment. Integral transoms and mullions are fixed into the outer frames with screws or brackets. Joints are sealed against water ingress during assembly.
  • Opening lights are inserted directly into the outer frames on butt hinges or friction stays.
  • Vent frames can be fixed directly into the framing modules. Individual modules can be fully assembled and then transported to site. The windows incorporate an integral polyamide thermal break.


Flexibility:

  • Available in casement, tilt/turn and top swing reversible windows.


Glazing:

  • 28 mm double glazed can be used as standard, but other unit sizes up to 56 mm are possible depending on weight.
  • Each pane of glass is individually inserted into a fully rebated and prepared opening.
  • Various glazing options are available to maximize thermal and acoustic performance. Consult manufacturer for details.
  • Internal beading is standard, with external beading an option on outward opening windows.


Size:

- Overswing open out:

  • Maximum width: 1500 mm.
  • Maximum height: 1600 mm.

- Side-hung:

  • Maximum width: 900 mm.
  • Maximum height: 1500 mm.

- Tilt-turn:

  • (Minimum)–Maximum width: (450)–1500 mm.
  • (Minimum)–Maximum height: (500)–1500 mm (heavy duty, 2200 mm).

- Top-hung:

  • Maximum width: 1500 mm.
  • Maximum height: 1500 mm.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Guidance for specification option:

Extruded aluminium: Aluminium alloy 6063.T6 to BS EN 755-9.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

H11/137 Windows/ opening lights

L10/330 Aluminium windows

L10/25 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

Fixed light.

Top-hung.

Guidance for specification option:

Top-hung open out.

  • Maximum width: 1500 mm.
  • Maximum height: 1500 mm.

Side-hung.

Guidance for specification option:

Side-hung open out.

  • Maximum width: 1000 mm.
  • Maximum height: 1500 mm.

As drawing.

As schedule.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1.

Air permeability

600 Pa.

Watertightness

600 Pa.

Resistance to wind load

2400 Pa.

Safety

-

Security level

To BS 7950.

Thermal

-

British Fenestration Rating Council Window Energy Rating

A–C.

Frame

-

Finish as delivered

-

Coating

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Colour

-

Manufacturer guidance

Insert requirement.

Glazing or infill

-

Requirements

Insulated glass unit, double inside glazed.

Guidance for specification option:

As standard. Insert thickness required, 26–56 mm available.

Insulated glass unit, triple inside glazed.

Guidance for specification option:

As standard. Insert thickness required, 26–56 mm available.

Insulated glass unit, double outside glazed.

Guidance for specification option:

As standard. Insert thickness required, 26–56 mm available.

Insulated glass unit, triple outside glazed.

Guidance for specification option:

As standard. Insert thickness required, 26–56 mm available.

Hardware

Manufacturer's standard.

Operation

-

Type

Side hung.

Top hung.

PlacementType

Wall placement.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC

IFC2X3

3

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001

Literature

SAS SPW600e Casement Window Technical Datasheet

SAS SPW600e Casement Window Technical Datasheet

Introduction to Senior Architectural Systems Brochure

Introduction to Senior Architectural Systems Brochure

SAS BREEAM Brochure

SAS BREEAM Brochure

SAS CPD Seminars 2023

SAS CPD Seminars 2023

SAS Featured Projects Brochure

SAS Featured Projects Brochure

SAS Accommodation Brochure

SAS Accommodation Brochure

SAS Commercial Brochure

SAS Commercial Brochure

SAS Education Brochure

SAS Education Brochure

Case studies

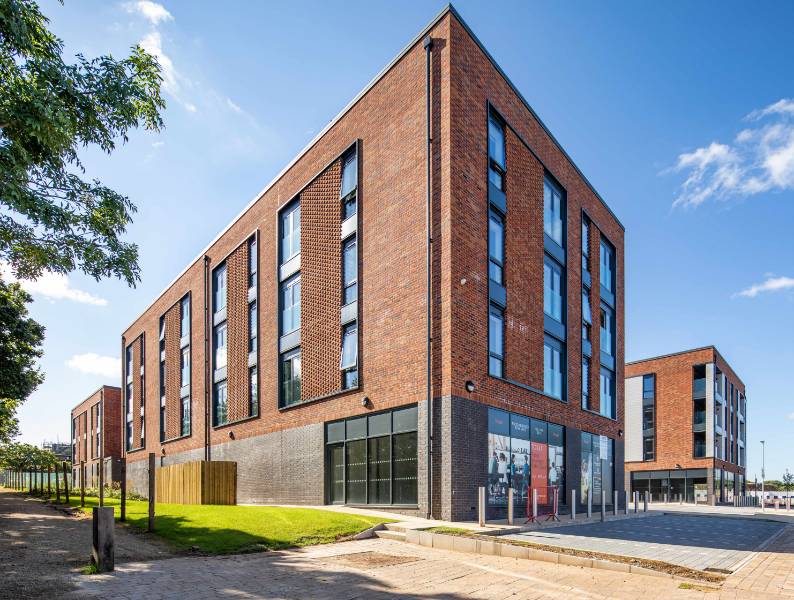

Blythe Valley Apartments, Solihull
